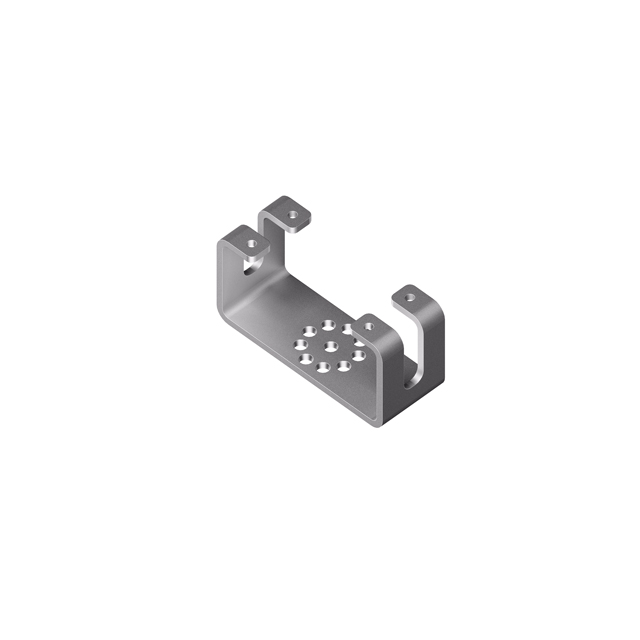

Accessory for down installation

Product Information

Weight (kg): 0.87

Available colours

01 White
04 Black
15 Grey
F5 Rust brown

Technical Specifications

Installation information

Environment: Outdoor

Agorà

See Overview

Agorà ø204mm slim 18 code(s)

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	2250 2625	31.9 39.9	SS 4.3° SS 4.3°	4000 4000	80 80	DALI-2 DALI-2	ø204 ø204	S720
New	2063 2400	31.9 39.9	SS 4.3° SS 4.3°	3000 3000	80 80	DALI-2 DALI-2	ø204 ø204	S715
New	1950 2288	31.9 39.9	SS 4.3° SS 4.3°	2700 2700	80 80	DALI-2 DALI-2	ø204 ø204	S710
New	1538 1800	31.9 39.9	SS 4.3° SS 4.3°	2200 2200	80 80	DALI-2 DALI-2	ø204 ø204	S707
New	3273 3889	30.9 38.7	S 16° S 16°	4000 4000	80 80	DALI-2 DALI-2	ø204 ø204	S721
New	3119 3696	30.9 38.7	S 16° S 16°	3000 3000	80 80	DALI-2 DALI-2	ø204 ø204	S716
New	3003 3542	30.9 38.7	S 16° S 16°	2700 2700	80 80	DALI-2 DALI-2	ø204 ø204	S711
New	3230 3838	30.9 38.7	F 30° F 30°	4000 4000	80 80	DALI-2 DALI-2	ø204 ø204	S722
New	3078 3648	30.9 38.7	F 30° F 30°	3000 3000	80 80	DALI-2 DALI-2	ø204 ø204	S717
New	2964 3496	30.9 38.7	F 30° F 30°	2700 2700	80 80	DALI-2 DALI-2	ø204 ø204	S712
New	2622 3078	30.9 38.7	F 30° F 30°	2200 2200	80 80	DALI-2 DALI-2	ø204 ø204	S708
New	3145 3737	30.9 38.7	WF 50° WF 50°	4000 4000	80 80	DALI-2 DALI-2	ø204 ø204	S723
New	2997 3552	30.9 38.7	WF 50° WF 50°	3000 3000	80 80	DALI-2 DALI-2	ø204 ø204	S718
New	2886 3404	30.9 38.7	WF 50° WF 50°	2700 2700	80 80	DALI-2 DALI-2	ø204 ø204	S713
New	2635 3131	30.9 38.7	WW WW	4000 4000	80 80	DALI-2 DALI-2	ø204 ø204	S724
New	2511 2976	30.9 38.7	WW WW	3000 3000	80 80	DALI-2 DALI-2	ø204 ø204	S719
New	2418 2852	30.9 38.7	WW WW	2700 2700	80 80	DALI-2 DALI-2	ø204 ø204	S714
New	2139 2511	30.9 38.7	WW WW	2200 2200	80 80	DALI-2 DALI-2	ø204 ø204	S709

Power supply to be ordered separately.
Bracket to be ordered separately.
These products can operate at a maximum ambient temperature of 35°C or 50°C, depending on the selected power supply. Check the correspondence between the operating ambient temperatures and the luminous fluxes emitted in the relative technical data sheets.

Agorà ø254mm compact 36 code(s)

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	2775	35.4	SS 4°	4000	80	DALI-2	ø254x303	UG78
New	2512.5	35.4	SS 4°	3000	80	DALI-2	ø254x303	UG71
New	2400	35.4	SS 4°	2700	80	DALI-2	ø254x303	UG64
New	1875	35.4	SS 4°	2200	80	DALI-2	ø254x303	UG59
New	3580.5	30.5	S 16°	4000	80	DALI-2	ø254x303	UG79
New	3388	30.5	S 16°	3000	80	DALI-2	ø254x303	UG72
New	3272.5	30.5	S 16°	2700	80	DALI-2	ø254x303	UG65
New	3534	30.5	F 30°	4000	80	DALI-2	ø254x303	UG80
New	3344	30.5	F 30°	3000	80	DALI-2	ø254x303	UG73
New	3230	30.5	F 30°	2700	80	DALI-2	ø254x303	UG66
New	2850	30.5	F 30°	2200	80	DALI-2	ø254x303	UG60
New	3441	30.5	WF 50°	4000	80	DALI-2	ø254x303	UG81
New	3256	30.5	WF 50°	3000	80	DALI-2	ø254x303	UG74
New	3145	30.5	WF 50°	2700	80	DALI-2	ø254x303	UG67
New	2883	30.5	WW	4000	80	DALI-2	ø254x303	UG82
New	2728	30.5	WW	3000	80	DALI-2	ø254x303	UG75
New	2635	30.5	WW	2700	80	DALI-2	ø254x303	UG68
New	2325	30.5	WW	2200	80	DALI-2	ø254x303	UG61

Complete with power supply.
These codes can be used at a maximum environment temperature
of 50°C.

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	3037.5	39.8	SS 4°	4000	80	DALI-2	ø254x303	UH04
New	2775	39.8	SS 4°	3000	80	DALI-2	ø254x303	UG97
New	2625	39.8	SS 4°	2700	80	DALI-2	ø254x303	UG90
New	2062.5	39.8	SS 4°	2200	80	DALI-2	ø254x303	UG85
New	4350.5	38.4	S 16°	4000	80	DALI-2	ø254x303	UH05
New	4119.5	38.4	S 16°	3000	80	DALI-2	ø254x303	UG98
New	3965.5	38.4	S 16°	2700	80	DALI-2	ø254x303	UG91
New	4294	38.4	F 30°	4000	80	DALI-2	ø254x303	UH06
New	4066	38.4	F 30°	3000	80	DALI-2	ø254x303	UG99
New	3914	38.4	F 30°	2700	80	DALI-2	ø254x303	UG92
New	3458	38.4	F 30°	2200	80	DALI-2	ø254x303	UG86
New	4181	38.4	WF 50°	4000	80	DALI-2	ø254x303	UH07
New	3959	38.4	WF 50°	3000	80	DALI-2	ø254x303	UH00
New	3811	38.4	WF 50°	2700	80	DALI-2	ø254x303	UG93
New	3503	38.4	WW	4000	80	DALI-2	ø254x303	UH08
New	3317	38.4	WW	3000	80	DALI-2	ø254x303	UH01
New	3193	38.4	WW	2700	80	DALI-2	ø254x303	UG94
New	2821	38.4	WW	2200	80	DALI-2	ø254x303	UG87

Complete with power supply.
These codes can be used at a maximum environment temperature
of 35°C.

Agorà ø313mm compact 84 code(s)

Tunable White (2200K - 3000K - 4000K)

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	3570	53.9	SS 5°	Tunable White	80	DMX-RDM	ø313x363	ET30
New	6802	63.1	S 14°	Tunable White	80	DMX-RDM	ø313x363	ET31
New	6623	63.1	F 28°	Tunable White	80	DMX-RDM	ø313x363	ET32
New	6444	63.1	WF 48°	Tunable White	80	DMX-RDM	ø313x363	ET33
New	5370	63.1	WW	Tunable White	80	DMX-RDM	ø313x363	ET34

Complete with electronic control card.
Power supply to be ordered separately.

These codes can be used at a maximum environment temperature of 50°C.

RGBW (3000K)

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	4087.5	60.6	SS 7.2°	RGBW - 3000K		DMX-RDM	ø313x363	2749
New	3869.5	60.6	S 14°	RGBW - 3000K		DMX-RDM	ø313x363	ET35
New	3760.5	60.6	F 28°	RGBW - 3000K		DMX-RDM	ø313x363	ET36
New	3815	60.6	WF 48°	RGBW - 3000K		DMX-RDM	ø313x363	ET37
New	3106.5	60.6	WW	RGBW - 3000K		DMX-RDM	ø313x363	2750

Complete with electronic control card.
Power supply to be ordered separately.

These codes can be used at a maximum environment temperature of 50°C.

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	4425	53.5	SS 4.3°	4000	80	DALI-2	ø313x363	ET07
New	4050	53.5	SS 4.3°	3000	80	DALI-2	ø313x363	ET02
New	3825	53.5	SS 4.3°	2700	80	DALI-2	ø313x363	ES97
New	3037.5	53.5	SS 4.3°	2200	80	DALI-2	ø313x363	ES94
New	7469	63.3	S 16°	4000	80	DALI-2	ø313x363	ET08
New	7084	63.3	S 16°	3000	80	DALI-2	ø313x363	ET03
New	6814.5	63.3	S 16°	2700	80	DALI-2	ø313x363	ES98
New	7372	63.3	F 30°	4000	80	DALI-2	ø313x363	ET09
New	6992	63.3	F 30°	3000	80	DALI-2	ø313x363	ET04
New	6726	63.3	F 30°	2700	80	DALI-2	ø313x363	ES99
New	5928	63.3	F 30°	2200	80	DALI-2	ø313x363	ES95
New	7178	63.3	WF 50°	4000	80	DALI-2	ø313x363	ET10
New	6808	63.3	WF 50°	3000	80	DALI-2	ø313x363	ET05
New	6549	63.3	WF 50°	2700	80	DALI-2	ø313x363	ET00
New	6014	63.3	WW	4000	80	DALI-2	ø313x363	ET11
New	5704	63.3	WW	3000	80	DALI-2	ø313x363	ET06
New	5487	63.3	WW	2700	80	DALI-2	ø313x363	ET01
New	4836	63.3	WW	2200	80	DALI-2	ø313x363	ES96

Complete with power supply.

These codes can be used at a maximum environment temperature of 50°C.

RGBW (3000K)

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	4912.5	75.8	SS 7.2°	RGBW - 3000K		DMX-RDM	ø313x363	2751
New	4650.5	75.8	S 14°	RGBW - 3000K		DMX-RDM	ø313x363	ET43
New	4519.5	75.8	F 28°	RGBW - 3000K		DMX-RDM	ø313x363	ET44
New	4585	75.8	WF 48°	RGBW - 3000K		DMX-RDM	ø313x363	ET45
New	3733.5	75.8	WW	RGBW - 3000K		DMX-RDM	ø313x363	2752

Complete with electronic control card.
Power supply to be ordered separately.
These codes can be used at a maximum environment temperature
of 35°C.

Tunable White (2200K - 3000K - 4000K)

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	4480	70.2	SS 5°	Tunable White	80	DMX-RDM	ø313x363	ET38
New	8892	86.6	S 14°	Tunable White	80	DMX-RDM	ø313x363	ET39
New	8658	86.6	F 28°	Tunable White	80	DMX-RDM	ø313x363	ET40
New	8424	86.6	WF 48°	Tunable White	80	DMX-RDM	ø313x363	ET41
New	7020	86.6	WW	Tunable White	80	DMX-RDM	ø313x363	ET42

Complete with electronic control card.
Power supply to be ordered separately.
These codes can be used at a maximum environment temperature
of 35°C.

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	5550	71.1	SS 4.3°	4000	80	DALI-2	ø313x363	ET25
New	5062.5	71.1	SS 4.3°	3000	80	DALI-2	ø313x363	ET20
New	4800	71.1	SS 4.3°	2700	80	DALI-2	ø313x363	ET15
New	3787.5	71.1	SS 4.3°	2200	80	DALI-2	ø313x363	ET12
New	9625	86.9	S 16°	4000	80	DALI-2	ø313x363	ET26
New	9124.5	86.9	S 16°	3000	80	DALI-2	ø313x363	ET21
New	8778	86.9	S 16°	2700	80	DALI-2	ø313x363	ET16
New	9500	86.9	F 30°	4000	80	DALI-2	ø313x363	ET27
New	9006	86.9	F 30°	3000	80	DALI-2	ø313x363	ET22
New	8664	86.9	F 30°	2700	80	DALI-2	ø313x363	ET17
New	7676	86.9	F 30°	2200	80	DALI-2	ø313x363	ET13
New	9250	86.9	WF 50°	4000	80	DALI-2	ø313x363	ET28
New	8769	86.9	WF 50°	3000	80	DALI-2	ø313x363	ET23
New	8436	86.9	WF 50°	2700	80	DALI-2	ø313x363	ET18
New	7750	86.9	WW	4000	80	DALI-2	ø313x363	ET29
New	7493.94	86.9	WW	3000	80	DALI-2	ø313x363	ET24
New	7068	86.9	WW	2700	80	DALI-2	ø313x363	ET19
New	6262	86.9	WW	2200	80	DALI-2	ø313x363	ET14

Complete with power supply.

These codes can be used at a maximum environment temperature
of 35°C.

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	5967.5	50.8	S 16°	4000	80	DALI-2	ø313x363	N466
New	5659.5	50.8	S 16°	3000	80	DALI-2	ø313x363	N462
New	5467	50.8	S 16°	2700	80	DALI-2	ø313x363	N458
New	5890	50.8	F 30°	4000	80	DALI-2	ø313x363	N467
New	5586	50.8	F 30°	3000	80	DALI-2	ø313x363	N463
New	5396	50.8	F 30°	2700	80	DALI-2	ø313x363	N459
New	4750	50.8	F 30°	2200	80	DALI-2	ø313x363	N456
New	5735	50.8	WF 50°	4000	80	DALI-2	ø313x363	N468
New	5439	50.8	WF 50°	3000	80	DALI-2	ø313x363	N464
New	5254	50.8	WF 50°	2700	80	DALI-2	ø313x363	N460
New	4805	50.8	WW	4000	80	DALI-2	ø313x363	N469
New	4557	50.8	WW	3000	80	DALI-2	ø313x363	N465
New	4402	50.8	WW	2700	80	DALI-2	ø313x363	N461
New	3875	50.8	WW	2200	80	DALI-2	ø313x363	N457

Complete with power supply.
These codes can be used at a maximum environment temperature
of 50°C.

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	8008	71.7	S 16°	4000	80	DALI-2	ø313x363	N480
New	7584.5	71.7	S 16°	3000	80	DALI-2	ø313x363	N476
New	7315	71.7	S 16°	2700	80	DALI-2	ø313x363	N472
New	7904	71.7	F 30°	4000	80	DALI-2	ø313x363	N481
New	7486	71.7	F 30°	3000	80	DALI-2	ø313x363	N477
New	7220	71.7	F 30°	2700	80	DALI-2	ø313x363	N473
New	6384	71.7	F 30°	2200	80	DALI-2	ø313x363	N470
New	7696	71.7	WF 50°	4000	80	DALI-2	ø313x363	N482
New	7289	71.7	WF 50°	3000	80	DALI-2	ø313x363	N478
New	7030	71.7	WF 50°	2700	80	DALI-2	ø313x363	N474
New	6448	71.7	WW	4000	80	DALI-2	ø313x363	N483
New	6107	71.7	WW	3000	80	DALI-2	ø313x363	N479
New	5890	71.7	WW	2700	80	DALI-2	ø313x363	N475
New	5208	71.7	WW	2200	80	DALI-2	ø313x363	N471

Complete with power supply.
These codes can be used at a maximum environment temperature
of 35°C.

Multi Agorà pole mounted 64 code(s)

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	4425	53.5	SS 4.3°	4000	80	DALI-2	ø313x363	ET07
New	4050	53.5	SS 4.3°	3000	80	DALI-2	ø313x363	ET02
New	3825	53.5	SS 4.3°	2700	80	DALI-2	ø313x363	ES97
New	3037.5	53.5	SS 4.3°	2200	80	DALI-2	ø313x363	ES94
New	7469	63.3	S 16°	4000	80	DALI-2	ø313x363	ET08
New	7084	63.3	S 16°	3000	80	DALI-2	ø313x363	ET03
New	6814.5	63.3	S 16°	2700	80	DALI-2	ø313x363	ES98
New	7372	63.3	F 30°	4000	80	DALI-2	ø313x363	ET09
New	6992	63.3	F 30°	3000	80	DALI-2	ø313x363	ET04
New	6726	63.3	F 30°	2700	80	DALI-2	ø313x363	ES99
New	5928	63.3	F 30°	2200	80	DALI-2	ø313x363	ES95
New	7178	63.3	WF 50°	4000	80	DALI-2	ø313x363	ET10
New	6808	63.3	WF 50°	3000	80	DALI-2	ø313x363	ET05
New	6549	63.3	WF 50°	2700	80	DALI-2	ø313x363	ET00
New	6014	63.3	WW	4000	80	DALI-2	ø313x363	ET11
New	5704	63.3	WW	3000	80	DALI-2	ø313x363	ET06
New	5487	63.3	WW	2700	80	DALI-2	ø313x363	ET01
New	4836	63.3	WW	2200	80	DALI-2	ø313x363	ES96

Complete with power supply.

These codes can be used at a maximum environment temperature of 50°C.

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	5550	71.1	SS 4.3°	4000	80	DALI-2	ø313x363	ET25
New	5062.5	71.1	SS 4.3°	3000	80	DALI-2	ø313x363	ET20
New	4800	71.1	SS 4.3°	2700	80	DALI-2	ø313x363	ET15
New	3787.5	71.1	SS 4.3°	2200	80	DALI-2	ø313x363	ET12
New	9625	86.9	S 16°	4000	80	DALI-2	ø313x363	ET26
New	9124.5	86.9	S 16°	3000	80	DALI-2	ø313x363	ET21
New	8778	86.9	S 16°	2700	80	DALI-2	ø313x363	ET16
New	9500	86.9	F 30°	4000	80	DALI-2	ø313x363	ET27
New	9006	86.9	F 30°	3000	80	DALI-2	ø313x363	ET22
New	8664	86.9	F 30°	2700	80	DALI-2	ø313x363	ET17
New	7676	86.9	F 30°	2200	80	DALI-2	ø313x363	ET13
New	9250	86.9	WF 50°	4000	80	DALI-2	ø313x363	ET28
New	8769	86.9	WF 50°	3000	80	DALI-2	ø313x363	ET23
New	8436	86.9	WF 50°	2700	80	DALI-2	ø313x363	ET18
New	7750	86.9	WW	4000	80	DALI-2	ø313x363	ET29
New	7493.94	86.9	WW	3000	80	DALI-2	ø313x363	ET24
New	7068	86.9	WW	2700	80	DALI-2	ø313x363	ET19
New	6262	86.9	WW	2200	80	DALI-2	ø313x363	ET14

Complete with power supply.

These codes can be used at a maximum environment temperature
of 35°C.

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	5967.5	50.8	S 16°	4000	80	DALI-2	ø313x363	N466
New	5659.5	50.8	S 16°	3000	80	DALI-2	ø313x363	N462
New	5467	50.8	S 16°	2700	80	DALI-2	ø313x363	N458
New	5890	50.8	F 30°	4000	80	DALI-2	ø313x363	N467
New	5586	50.8	F 30°	3000	80	DALI-2	ø313x363	N463
New	5396	50.8	F 30°	2700	80	DALI-2	ø313x363	N459
New	4750	50.8	F 30°	2200	80	DALI-2	ø313x363	N456
New	5735	50.8	WF 50°	4000	80	DALI-2	ø313x363	N468
New	5439	50.8	WF 50°	3000	80	DALI-2	ø313x363	N464
New	5254	50.8	WF 50°	2700	80	DALI-2	ø313x363	N460
New	4805	50.8	WW	4000	80	DALI-2	ø313x363	N469
New	4557	50.8	WW	3000	80	DALI-2	ø313x363	N465
New	4402	50.8	WW	2700	80	DALI-2	ø313x363	N461
New	3875	50.8	WW	2200	80	DALI-2	ø313x363	N457

Complete with power supply.
These codes can be used at a maximum environment temperature
of 50°C.

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	8008	71.7	S 16°	4000	80	DALI-2	ø313x363	N480
New	7584.5	71.7	S 16°	3000	80	DALI-2	ø313x363	N476
New	7315	71.7	S 16°	2700	80	DALI-2	ø313x363	N472
New	7904	71.7	F 30°	4000	80	DALI-2	ø313x363	N481
New	7486	71.7	F 30°	3000	80	DALI-2	ø313x363	N477
New	7220	71.7	F 30°	2700	80	DALI-2	ø313x363	N473
New	6384	71.7	F 30°	2200	80	DALI-2	ø313x363	N470
New	7696	71.7	WF 50°	4000	80	DALI-2	ø313x363	N482
New	7289	71.7	WF 50°	3000	80	DALI-2	ø313x363	N478
New	7030	71.7	WF 50°	2700	80	DALI-2	ø313x363	N474
New	6448	71.7	WW	4000	80	DALI-2	ø313x363	N483
New	6107	71.7	WW	3000	80	DALI-2	ø313x363	N479
New	5890	71.7	WW	2700	80	DALI-2	ø313x363	N475
New	5208	71.7	WW	2200	80	DALI-2	ø313x363	N471

Complete with power supply.
These codes can be used at a maximum environment temperature
of 35°C.

Multi Agorà minimal and connected pole 118 code(s)

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	2250 2625	31.9 39.9	SS 4.3° SS 4.3°	4000 4000	80 80	DALI-2 DALI-2	ø204 ø204	S720
New	2063 2400	31.9 39.9	SS 4.3° SS 4.3°	3000 3000	80 80	DALI-2 DALI-2	ø204 ø204	S715
New	1950 2288	31.9 39.9	SS 4.3° SS 4.3°	2700 2700	80 80	DALI-2 DALI-2	ø204 ø204	S710
New	1538 1800	31.9 39.9	SS 4.3° SS 4.3°	2200 2200	80 80	DALI-2 DALI-2	ø204 ø204	S707
New	3273 3889	30.9 38.7	S 16° S 16°	4000 4000	80 80	DALI-2 DALI-2	ø204 ø204	S721
New	3119 3696	30.9 38.7	S 16° S 16°	3000 3000	80 80	DALI-2 DALI-2	ø204 ø204	S716
New	3003 3542	30.9 38.7	S 16° S 16°	2700 2700	80 80	DALI-2 DALI-2	ø204 ø204	S711
New	3230 3838	30.9 38.7	F 30° F 30°	4000 4000	80 80	DALI-2 DALI-2	ø204 ø204	S722
New	3078 3648	30.9 38.7	F 30° F 30°	3000 3000	80 80	DALI-2 DALI-2	ø204 ø204	S717
New	2964 3496	30.9 38.7	F 30° F 30°	2700 2700	80 80	DALI-2 DALI-2	ø204 ø204	S712
New	2622 3078	30.9 38.7	F 30° F 30°	2200 2200	80 80	DALI-2 DALI-2	ø204 ø204	S708
New	3145 3737	30.9 38.7	WF 50° WF 50°	4000 4000	80 80	DALI-2 DALI-2	ø204 ø204	S723
New	2997 3552	30.9 38.7	WF 50° WF 50°	3000 3000	80 80	DALI-2 DALI-2	ø204 ø204	S718
New	2886 3404	30.9 38.7	WF 50° WF 50°	2700 2700	80 80	DALI-2 DALI-2	ø204 ø204	S713
New	2635 3131	30.9 38.7	WW WW	4000 4000	80 80	DALI-2 DALI-2	ø204 ø204	S724
New	2511 2976	30.9 38.7	WW WW	3000 3000	80 80	DALI-2 DALI-2	ø204 ø204	S719
New	2418 2852	30.9 38.7	WW WW	2700 2700	80 80	DALI-2 DALI-2	ø204 ø204	S714
New	2139 2511	30.9 38.7	WW WW	2200 2200	80 80	DALI-2 DALI-2	ø204 ø204	S709

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	2775	35.4	SS 4°	4000	80	DALI-2	ø254x303	UG78
New	2512.5	35.4	SS 4°	3000	80	DALI-2	ø254x303	UG71
New	2400	35.4	SS 4°	2700	80	DALI-2	ø254x303	UG64
New	1875	35.4	SS 4°	2200	80	DALI-2	ø254x303	UG59
New	3580.5	30.5	S 16°	4000	80	DALI-2	ø254x303	UG79
New	3388	30.5	S 16°	3000	80	DALI-2	ø254x303	UG72
New	3272.5	30.5	S 16°	2700	80	DALI-2	ø254x303	UG65
New	3534	30.5	F 30°	4000	80	DALI-2	ø254x303	UG80
New	3344	30.5	F 30°	3000	80	DALI-2	ø254x303	UG73
New	3230	30.5	F 30°	2700	80	DALI-2	ø254x303	UG66
New	2850	30.5	F 30°	2200	80	DALI-2	ø254x303	UG60
New	3441	30.5	WF 50°	4000	80	DALI-2	ø254x303	UG81
New	3256	30.5	WF 50°	3000	80	DALI-2	ø254x303	UG74
New	3145	30.5	WF 50°	2700	80	DALI-2	ø254x303	UG67
New	2883	30.5	WW	4000	80	DALI-2	ø254x303	UG82
New	2728	30.5	WW	3000	80	DALI-2	ø254x303	UG75
New	2635	30.5	WW	2700	80	DALI-2	ø254x303	UG68
New	2325	30.5	WW	2200	80	DALI-2	ø254x303	UG61

Complete with power supply.
These codes can be used at a maximum environment temperature
of 50°C.

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	3037.5	39.8	SS 4°	4000	80	DALI-2	ø254x303	UH04
New	2775	39.8	SS 4°	3000	80	DALI-2	ø254x303	UG97
New	2625	39.8	SS 4°	2700	80	DALI-2	ø254x303	UG90
New	2062.5	39.8	SS 4°	2200	80	DALI-2	ø254x303	UG85
New	4350.5	38.4	S 16°	4000	80	DALI-2	ø254x303	UH05
New	4119.5	38.4	S 16°	3000	80	DALI-2	ø254x303	UG98
New	3965.5	38.4	S 16°	2700	80	DALI-2	ø254x303	UG91
New	4294	38.4	F 30°	4000	80	DALI-2	ø254x303	UH06
New	4066	38.4	F 30°	3000	80	DALI-2	ø254x303	UG99
New	3914	38.4	F 30°	2700	80	DALI-2	ø254x303	UG92
New	3458	38.4	F 30°	2200	80	DALI-2	ø254x303	UG86
New	4181	38.4	WF 50°	4000	80	DALI-2	ø254x303	UH07
New	3959	38.4	WF 50°	3000	80	DALI-2	ø254x303	UH00
New	3811	38.4	WF 50°	2700	80	DALI-2	ø254x303	UG93
New	3503	38.4	WW	4000	80	DALI-2	ø254x303	UH08
New	3317	38.4	WW	3000	80	DALI-2	ø254x303	UH01
New	3193	38.4	WW	2700	80	DALI-2	ø254x303	UG94
New	2821	38.4	WW	2200	80	DALI-2	ø254x303	UG87

Complete with power supply.
These codes can be used at a maximum environment temperature
of 35°C.

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	4425	53.5	SS 4.3°	4000	80	DALI-2	ø313x363	ET07
New	4050	53.5	SS 4.3°	3000	80	DALI-2	ø313x363	ET02
New	3825	53.5	SS 4.3°	2700	80	DALI-2	ø313x363	ES97
New	3037.5	53.5	SS 4.3°	2200	80	DALI-2	ø313x363	ES94
New	7469	63.3	S 16°	4000	80	DALI-2	ø313x363	ET08
New	7084	63.3	S 16°	3000	80	DALI-2	ø313x363	ET03
New	6814.5	63.3	S 16°	2700	80	DALI-2	ø313x363	ES98
New	7372	63.3	F 30°	4000	80	DALI-2	ø313x363	ET09
New	6992	63.3	F 30°	3000	80	DALI-2	ø313x363	ET04
New	6726	63.3	F 30°	2700	80	DALI-2	ø313x363	ES99
New	5928	63.3	F 30°	2200	80	DALI-2	ø313x363	ES95
New	7178	63.3	WF 50°	4000	80	DALI-2	ø313x363	ET10
New	6808	63.3	WF 50°	3000	80	DALI-2	ø313x363	ET05
New	6549	63.3	WF 50°	2700	80	DALI-2	ø313x363	ET00
New	6014	63.3	WW	4000	80	DALI-2	ø313x363	ET11
New	5704	63.3	WW	3000	80	DALI-2	ø313x363	ET06
New	5487	63.3	WW	2700	80	DALI-2	ø313x363	ET01
New	4836	63.3	WW	2200	80	DALI-2	ø313x363	ES96

Complete with power supply.

These codes can be used at a maximum environment temperature of 50°C.

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	5550	71.1	SS 4.3°	4000	80	DALI-2	ø313x363	ET25
New	5062.5	71.1	SS 4.3°	3000	80	DALI-2	ø313x363	ET20
New	4800	71.1	SS 4.3°	2700	80	DALI-2	ø313x363	ET15
New	3787.5	71.1	SS 4.3°	2200	80	DALI-2	ø313x363	ET12
New	9625	86.9	S 16°	4000	80	DALI-2	ø313x363	ET26
New	9124.5	86.9	S 16°	3000	80	DALI-2	ø313x363	ET21
New	8778	86.9	S 16°	2700	80	DALI-2	ø313x363	ET16
New	9500	86.9	F 30°	4000	80	DALI-2	ø313x363	ET27
New	9006	86.9	F 30°	3000	80	DALI-2	ø313x363	ET22
New	8664	86.9	F 30°	2700	80	DALI-2	ø313x363	ET17
New	7676	86.9	F 30°	2200	80	DALI-2	ø313x363	ET13
New	9250	86.9	WF 50°	4000	80	DALI-2	ø313x363	ET28
New	8769	86.9	WF 50°	3000	80	DALI-2	ø313x363	ET23
New	8436	86.9	WF 50°	2700	80	DALI-2	ø313x363	ET18
New	7750	86.9	WW	4000	80	DALI-2	ø313x363	ET29
New	7493.94	86.9	WW	3000	80	DALI-2	ø313x363	ET24
New	7068	86.9	WW	2700	80	DALI-2	ø313x363	ET19
New	6262	86.9	WW	2200	80	DALI-2	ø313x363	ET14

Complete with power supply.

These codes can be used at a maximum environment temperature
of 35°C.

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	5967.5	50.8	S 16°	4000	80	DALI-2	ø313x363	N466
New	5659.5	50.8	S 16°	3000	80	DALI-2	ø313x363	N462
New	5467	50.8	S 16°	2700	80	DALI-2	ø313x363	N458
New	5890	50.8	F 30°	4000	80	DALI-2	ø313x363	N467
New	5586	50.8	F 30°	3000	80	DALI-2	ø313x363	N463
New	5396	50.8	F 30°	2700	80	DALI-2	ø313x363	N459
New	4750	50.8	F 30°	2200	80	DALI-2	ø313x363	N456
New	5735	50.8	WF 50°	4000	80	DALI-2	ø313x363	N468
New	5439	50.8	WF 50°	3000	80	DALI-2	ø313x363	N464
New	5254	50.8	WF 50°	2700	80	DALI-2	ø313x363	N460
New	4805	50.8	WW	4000	80	DALI-2	ø313x363	N469
New	4557	50.8	WW	3000	80	DALI-2	ø313x363	N465
New	4402	50.8	WW	2700	80	DALI-2	ø313x363	N461
New	3875	50.8	WW	2200	80	DALI-2	ø313x363	N457

Complete with power supply.
These codes can be used at a maximum environment temperature
of 50°C.

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	8008	71.7	S 16°	4000	80	DALI-2	ø313x363	N480
New	7584.5	71.7	S 16°	3000	80	DALI-2	ø313x363	N476
New	7315	71.7	S 16°	2700	80	DALI-2	ø313x363	N472
New	7904	71.7	F 30°	4000	80	DALI-2	ø313x363	N481
New	7486	71.7	F 30°	3000	80	DALI-2	ø313x363	N477
New	7220	71.7	F 30°	2700	80	DALI-2	ø313x363	N473
New	6384	71.7	F 30°	2200	80	DALI-2	ø313x363	N470
New	7696	71.7	WF 50°	4000	80	DALI-2	ø313x363	N482
New	7289	71.7	WF 50°	3000	80	DALI-2	ø313x363	N478
New	7030	71.7	WF 50°	2700	80	DALI-2	ø313x363	N474
New	6448	71.7	WW	4000	80	DALI-2	ø313x363	N483
New	6107	71.7	WW	3000	80	DALI-2	ø313x363	N479
New	5890	71.7	WW	2700	80	DALI-2	ø313x363	N475
New	5208	71.7	WW	2200	80	DALI-2	ø313x363	N471

Complete with power supply.
These codes can be used at a maximum environment temperature
of 35°C.

Multi Agorà wall mounted 64 code(s)

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	4425	53.5	SS 4.3°	4000	80	DALI-2	ø313x363	ET07
New	4050	53.5	SS 4.3°	3000	80	DALI-2	ø313x363	ET02
New	3825	53.5	SS 4.3°	2700	80	DALI-2	ø313x363	ES97
New	3037.5	53.5	SS 4.3°	2200	80	DALI-2	ø313x363	ES94
New	7469	63.3	S 16°	4000	80	DALI-2	ø313x363	ET08
New	7084	63.3	S 16°	3000	80	DALI-2	ø313x363	ET03
New	6814.5	63.3	S 16°	2700	80	DALI-2	ø313x363	ES98
New	7372	63.3	F 30°	4000	80	DALI-2	ø313x363	ET09
New	6992	63.3	F 30°	3000	80	DALI-2	ø313x363	ET04
New	6726	63.3	F 30°	2700	80	DALI-2	ø313x363	ES99
New	5928	63.3	F 30°	2200	80	DALI-2	ø313x363	ES95
New	7178	63.3	WF 50°	4000	80	DALI-2	ø313x363	ET10
New	6808	63.3	WF 50°	3000	80	DALI-2	ø313x363	ET05
New	6549	63.3	WF 50°	2700	80	DALI-2	ø313x363	ET00
New	6014	63.3	WW	4000	80	DALI-2	ø313x363	ET11
New	5704	63.3	WW	3000	80	DALI-2	ø313x363	ET06
New	5487	63.3	WW	2700	80	DALI-2	ø313x363	ET01
New	4836	63.3	WW	2200	80	DALI-2	ø313x363	ES96

Complete with power supply.

These codes can be used at a maximum environment temperature of 50°C.

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	5550	71.1	SS 4.3°	4000	80	DALI-2	ø313x363	ET25
New	5062.5	71.1	SS 4.3°	3000	80	DALI-2	ø313x363	ET20
New	4800	71.1	SS 4.3°	2700	80	DALI-2	ø313x363	ET15
New	3787.5	71.1	SS 4.3°	2200	80	DALI-2	ø313x363	ET12
New	9625	86.9	S 16°	4000	80	DALI-2	ø313x363	ET26
New	9124.5	86.9	S 16°	3000	80	DALI-2	ø313x363	ET21
New	8778	86.9	S 16°	2700	80	DALI-2	ø313x363	ET16
New	9500	86.9	F 30°	4000	80	DALI-2	ø313x363	ET27
New	9006	86.9	F 30°	3000	80	DALI-2	ø313x363	ET22
New	8664	86.9	F 30°	2700	80	DALI-2	ø313x363	ET17
New	7676	86.9	F 30°	2200	80	DALI-2	ø313x363	ET13
New	9250	86.9	WF 50°	4000	80	DALI-2	ø313x363	ET28
New	8769	86.9	WF 50°	3000	80	DALI-2	ø313x363	ET23
New	8436	86.9	WF 50°	2700	80	DALI-2	ø313x363	ET18
New	7750	86.9	WW	4000	80	DALI-2	ø313x363	ET29
New	7493.94	86.9	WW	3000	80	DALI-2	ø313x363	ET24
New	7068	86.9	WW	2700	80	DALI-2	ø313x363	ET19
New	6262	86.9	WW	2200	80	DALI-2	ø313x363	ET14

Complete with power supply.

These codes can be used at a maximum environment temperature
of 35°C.

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	5967.5	50.8	S 16°	4000	80	DALI-2	ø313x363	N466
New	5659.5	50.8	S 16°	3000	80	DALI-2	ø313x363	N462
New	5467	50.8	S 16°	2700	80	DALI-2	ø313x363	N458
New	5890	50.8	F 30°	4000	80	DALI-2	ø313x363	N467
New	5586	50.8	F 30°	3000	80	DALI-2	ø313x363	N463
New	5396	50.8	F 30°	2700	80	DALI-2	ø313x363	N459
New	4750	50.8	F 30°	2200	80	DALI-2	ø313x363	N456
New	5735	50.8	WF 50°	4000	80	DALI-2	ø313x363	N468
New	5439	50.8	WF 50°	3000	80	DALI-2	ø313x363	N464
New	5254	50.8	WF 50°	2700	80	DALI-2	ø313x363	N460
New	4805	50.8	WW	4000	80	DALI-2	ø313x363	N469
New	4557	50.8	WW	3000	80	DALI-2	ø313x363	N465
New	4402	50.8	WW	2700	80	DALI-2	ø313x363	N461
New	3875	50.8	WW	2200	80	DALI-2	ø313x363	N457

Complete with power supply.
These codes can be used at a maximum environment temperature
of 50°C.

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	8008	71.7	S 16°	4000	80	DALI-2	ø313x363	N480
New	7584.5	71.7	S 16°	3000	80	DALI-2	ø313x363	N476
New	7315	71.7	S 16°	2700	80	DALI-2	ø313x363	N472
New	7904	71.7	F 30°	4000	80	DALI-2	ø313x363	N481
New	7486	71.7	F 30°	3000	80	DALI-2	ø313x363	N477
New	7220	71.7	F 30°	2700	80	DALI-2	ø313x363	N473
New	6384	71.7	F 30°	2200	80	DALI-2	ø313x363	N470
New	7696	71.7	WF 50°	4000	80	DALI-2	ø313x363	N482
New	7289	71.7	WF 50°	3000	80	DALI-2	ø313x363	N478
New	7030	71.7	WF 50°	2700	80	DALI-2	ø313x363	N474
New	6448	71.7	WW	4000	80	DALI-2	ø313x363	N483
New	6107	71.7	WW	3000	80	DALI-2	ø313x363	N479
New	5890	71.7	WW	2700	80	DALI-2	ø313x363	N475
New	5208	71.7	WW	2200	80	DALI-2	ø313x363	N471

Complete with power supply.
These codes can be used at a maximum environment temperature
of 35°C.

Woody

See Overview

MaxiWoody Compact ø260mm 12 code(s)

ø260 - C.o.B. - Spot

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	3950.48	37.7	S 10°	4000	80	DALI-2	ø260x270	BU94
New	3845.6	37.7	S 10°	3000	80	DALI-2	ø260x270	BU95
New	2835	26.8	S 11°	4000	80	1-10V	ø260x270	BU88
New	2695	26.8	S 11°	3000	80	1-10V	ø260x270	BU89

Complete with power supply and electronic DALI control card. DALI versions occupy 1 address.

ø260 - C.o.B.

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	3159	26.8	F 30°	4000	80	1-10V	ø260x270	BU90
New	3003	26.8	F 30°	3000	80	1-10V	ø260x270	BU91
New	4400.79	37.7	F 30°	4000	80	DALI-2	ø260x270	BU96
New	4283.95	37.7	F 30°	3000	80	DALI-2	ø260x270	BU97
New	3156.57	26.8	WF 50°	4000	80	1-10V	ø260x270	BU92
New	3000.69	26.8	WF 50°	3000	80	1-10V	ø260x270	BU93
New	4404.18	37.7	WF 50°	4000	80	DALI-2	ø260x270	BU98
New	4287.25	37.7	WF 50°	3000	80	DALI-2	ø260x270	BU99

Complete with power supply and electronic DALI control card. DALI versions occupy 1 address.

MaxiWoody ø315mm 16 code(s)

ø315 - Multi Chip

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	1405.8	28.7	S 12°	RGB		DMX-RDM	ø315x319	BV52
New	1299.3	28.7	F 30°	RGB		DMX-RDM	ø315x319	BV53

Complete with power supply and electronic DMX512-RDM
control card. DMX specifications require the insertion of a
120 Ohm terminating resistor (code BZQ7) to be placed between
the DATA+ and DATA- cables of the last product in the line.
Tuneable white: 2700K÷6000K

ø315 - C.o.B. - Spot

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	6387.5	56.5	S 12°	4000	80	DALI-2	ø315x358	BV00
New	6241.5	56.5	S 12°	3000	80	DALI-2	ø315x358	BV01
New	10108	91.9	S 12°	4000	80	On/off	ø315x358	E981
New	9994	91.9	S 12°	3000	80	On/off	ø315x358	E982

On/off products are available in DALI version upon request.

ø315 - C.o.B.

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	7000	56.5	F 30°	4000	80	DALI-2	ø315x358	BV02
New	6840	56.5	F 30°	3000	80	DALI-2	ø315x319	BV03
New	11039	91.9	F 30°	4000	80	On/off	ø315x358	E983
New	10914.5	91.9	F 30°	3000	80	On/off	ø315x358	E984
New	11158.7	91.9	WF 44°	4000	80	On/off	ø315x358	E985
New	11032.85	91.9	WF 44°	3000	80	On/off	ø315x358	E986
New	7000	56.5	WF 46°	4000	80	DALI-2	ø315x358	BV04
New	6840	56.5	WF 46°	3000	80	DALI-2	ø315x319	BV05

On/off products are available in DALI version upon request.

ø315 - Multi Chip

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	4252.5	39.9	S 12° / 10°	4000	80	DALI-2	ø315x319	BB28
New	4252.5	39.9	S 12° / 10°	3000	80	DALI-2	ø315x319	BB29

MultiWoody pole mounted 20 code(s)

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	3950.48	37.7	S 10°	4000	80	DALI-2	ø260x270	BU94
New	3845.6	37.7	S 10°	3000	80	DALI-2	ø260x270	BU95
New	2835	26.8	S 11°	4000	80	1-10V	ø260x270	BU88
New	2695	26.8	S 11°	3000	80	1-10V	ø260x270	BU89
New	3159	26.8	F 30°	4000	80	1-10V	ø260x270	BU90
New	3003	26.8	F 30°	3000	80	1-10V	ø260x270	BU91
New	4400.79	37.7	F 30°	4000	80	DALI-2	ø260x270	BU96
New	4283.95	37.7	F 30°	3000	80	DALI-2	ø260x270	BU97
New	3156.57	26.8	WF 50°	4000	80	1-10V	ø260x270	BU92
New	3000.69	26.8	WF 50°	3000	80	1-10V	ø260x270	BU93
New	4404.18	37.7	WF 50°	4000	80	DALI-2	ø260x270	BU98
New	4287.25	37.7	WF 50°	3000	80	DALI-2	ø260x270	BU99

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	6387.5	56.5	S 12°	4000	80	DALI-2	ø315x358	BV00
New	6241.5	56.5	S 12°	3000	80	DALI-2	ø315x358	BV01
New	7000	56.5	F 30°	4000	80	DALI-2	ø315x358	BV02
New	6840	56.5	F 30°	3000	80	DALI-2	ø315x319	BV03
New	7000	56.5	WF 46°	4000	80	DALI-2	ø315x358	BV04
New	6840	56.5	WF 46°	3000	80	DALI-2	ø315x319	BV05

ø315 - Multi Chip

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	1405.8	28.7	S 12°	RGB		DMX-RDM	ø315x319	BV52
New	1299.3	28.7	F 30°	RGB		DMX-RDM	ø315x319	BV53

MultiWoody wall mounted 20 code(s)

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	3950.48	37.7	S 10°	4000	80	DALI-2	ø260x270	BU94
New	3845.6	37.7	S 10°	3000	80	DALI-2	ø260x270	BU95
New	2835	26.8	S 11°	4000	80	1-10V	ø260x270	BU88
New	2695	26.8	S 11°	3000	80	1-10V	ø260x270	BU89
New	3159	26.8	F 30°	4000	80	1-10V	ø260x270	BU90
New	3003	26.8	F 30°	3000	80	1-10V	ø260x270	BU91
New	4400.79	37.7	F 30°	4000	80	DALI-2	ø260x270	BU96
New	4283.95	37.7	F 30°	3000	80	DALI-2	ø260x270	BU97
New	3156.57	26.8	WF 50°	4000	80	1-10V	ø260x270	BU92
New	3000.69	26.8	WF 50°	3000	80	1-10V	ø260x270	BU93
New	4404.18	37.7	WF 50°	4000	80	DALI-2	ø260x270	BU98
New	4287.25	37.7	WF 50°	3000	80	DALI-2	ø260x270	BU99

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	6387.5	56.5	S 12°	4000	80	DALI-2	ø315x358	BV00
New	6241.5	56.5	S 12°	3000	80	DALI-2	ø315x358	BV01
New	7000	56.5	F 30°	4000	80	DALI-2	ø315x358	BV02
New	6840	56.5	F 30°	3000	80	DALI-2	ø315x319	BV03
New	7000	56.5	WF 46°	4000	80	DALI-2	ø315x358	BV04
New	6840	56.5	WF 46°	3000	80	DALI-2	ø315x319	BV05

ø315 - Multi Chip

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	1405.8	28.7	S 12°	RGB		DMX-RDM	ø315x319	BV52
New	1299.3	28.7	F 30°	RGB		DMX-RDM	ø315x319	BV53

MultiWoody minimal and connected pole 28 code(s)

ø260 - C.o.B. - Spot

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	3950.48	37.7	S 10°	4000	80	DALI-2	ø260x270	BU94
New	3845.6	37.7	S 10°	3000	80	DALI-2	ø260x270	BU95
New	2835	26.8	S 11°	4000	80	1-10V	ø260x270	BU88
New	2695	26.8	S 11°	3000	80	1-10V	ø260x270	BU89

Complete with power supply and electronic DALI control card. DALI versions occupy 1 address.

ø260 - C.o.B.

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	3159	26.8	F 30°	4000	80	1-10V	ø260x270	BU90
New	3003	26.8	F 30°	3000	80	1-10V	ø260x270	BU91
New	4400.79	37.7	F 30°	4000	80	DALI-2	ø260x270	BU96
New	4283.95	37.7	F 30°	3000	80	DALI-2	ø260x270	BU97
New	3156.57	26.8	WF 50°	4000	80	1-10V	ø260x270	BU92
New	3000.69	26.8	WF 50°	3000	80	1-10V	ø260x270	BU93
New	4404.18	37.7	WF 50°	4000	80	DALI-2	ø260x270	BU98
New	4287.25	37.7	WF 50°	3000	80	DALI-2	ø260x270	BU99

Complete with power supply and electronic DALI control card. DALI versions occupy 1 address.

ø315 - Multi Chip

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	1405.8	28.7	S 12°	RGB		DMX-RDM	ø315x319	BV52
New	1299.3	28.7	F 30°	RGB		DMX-RDM	ø315x319	BV53

ø315 - C.o.B. - Spot

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	6387.5	56.5	S 12°	4000	80	DALI-2	ø315x358	BV00
New	6241.5	56.5	S 12°	3000	80	DALI-2	ø315x358	BV01
New	10108	91.9	S 12°	4000	80	On/off	ø315x358	E981
New	9994	91.9	S 12°	3000	80	On/off	ø315x358	E982

On/off products are available in DALI version upon request.

ø315 - C.o.B.

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	7000	56.5	F 30°	4000	80	DALI-2	ø315x358	BV02
New	6840	56.5	F 30°	3000	80	DALI-2	ø315x319	BV03
New	11039	91.9	F 30°	4000	80	On/off	ø315x358	E983
New	10914.5	91.9	F 30°	3000	80	On/off	ø315x358	E984
New	11158.7	91.9	WF 44°	4000	80	On/off	ø315x358	E985
New	11032.85	91.9	WF 44°	3000	80	On/off	ø315x358	E986
New	7000	56.5	WF 46°	4000	80	DALI-2	ø315x358	BV04
New	6840	56.5	WF 46°	3000	80	DALI-2	ø315x319	BV05

On/off products are available in DALI version upon request.

ø315 - Multi Chip

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	4252.5	39.9	S 12° / 10°	4000	80	DALI-2	ø315x319	BB28
New	4252.5	39.9	S 12° / 10°	3000	80	DALI-2	ø315x319	BB29

iPro

See Overview

iPro □ 192mm 44 code(s)

□ 192 - C.o.B. - Optibeam Reflector

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	6609.6	59.2	M 17° / 16°	4000	80	DALI-2	192x192x200	EP88
New	6455.7	59.2	M 17° / 16°	3000	80	DALI-2	192x192x200	EP89
New	2800	27.2	F 28°	Tunable White		DALI-2	192x192x200	EP96
New	2800	27.2	F 28°	Tunable White		DMX-RDM	192x192x200	EP99
New	3304.8	26.6	F 32°	4000	80	DALI-2	192x192x200	EP76
New	3159	26.6	F 32°	3000	80	DALI-2	192x192x200	EP77
New	5232.6	45.3	F 32°	4000	80	DALI-2	192x192x200	EP82
New	5111.1	45.3	F 32°	3000	80	DALI-2	192x192x200	EP83
New	6609.6	59.2	F 32°	4000	80	DALI-2	192x192x200	EP90
New	6455.7	59.2	F 32°	3000	80	DALI-2	192x192x200	EP91
New	2835	27.2	WF 40°	Tunable White		DALI-2	192x192x200	EP97
New	2835	27.2	WF 40°	Tunable White		DMX-RDM	192x192x200	EQ01
New	3304.8	26.6	WF 46° / 47°	4000	80	DALI-2	192x192x200	EP78
New	3159	26.6	WF 46° / 47°	3000	80	DALI-2	192x192x200	EP79
New	5232.6	45.3	WF 46° / 47°	4000	80	DALI-2	192x192x200	EP84
New	5111.1	45.3	WF 46° / 47°	3000	80	DALI-2	192x192x200	EP85
New	6609.6	59.2	WF 46° / 47°	4000	80	DALI-2	192x192x200	EP92
New	6455.7	59.2	WF 46° / 47°	3000	80	DALI-2	192x192x200	EP93
New	3264	26.6	VWF 82°	4000	80	DALI-2	192x192x200	EP80
New	3120	26.6	VWF 82°	3000	80	DALI-2	192x192x200	EP81
New	2940	27.2	VWF 82°	Tunable White		DALI-2	192x192x200	EP98
New	2940	27.2	VWF 82°	Tunable White		DMX-RDM	192x192x200	EQ02
New	5168	45.3	VWF 82°	4000	80	DALI-2	192x192x200	EP86
New	5048	45.3	VWF 82°	3000	80	DALI-2	192x192x200	EP87
New	6528	59.2	VWF 82°	4000	80	DALI-2	192x192x200	EP94
New	6376	59.2	VWF 82°	3000	80	DALI-2	192x192x200	EP95

Complete with power supply. DALI versions occupy 1 address.
iPro □ 192 floodlights can be wall-mounted using the special base BZM5.

□ 192 - C.o.B. - Optibeam Lens

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	725	14.1	SS 6°	4000	80	DALI-2	192x192x225	EP72
New	696	14.1	SS 6°	3000	80	DALI-2	192x192x225	EP73
New	1351.1	18.3	S 10°	4000	80	DALI-2	192x192x200	EP74
New	1333.4	18.3	S 10°	3000	80	DALI-2	192x192x200	EP75

□ 192 - C.o.B. - Opti Smart Reflector

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	3442.5	33.2	A60	4000	80	DALI-2	192x192x200	EQ03
New	3442.5	33.2	A60	3000	80	DALI-2	192x192x200	EQ04

Recommended pole application

□ 192 - C.o.B. - Opti Smart Reflector

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	3847.5	33.2	ST1	4000	70	DALI-2	192x192x200	EQ05
New	3523.5	33.2	ST1	3000	70	DALI-2	192x192x200	EQ06

Recommended pole application

□ 192 - Multi Chip Lens

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	3280	31.1	S 12° / 10°	4000	80	DALI-2	192x192x200	BG35
New	3280	31.1	S 12° / 10°	3000	80	DALI-2	192x192x200	BG36
New	2920	31.1	M 20°	4000	80	DALI-2	192x192x200	BG37
New	2920	31.1	M 20°	3000	80	DALI-2	192x192x200	BG38

Complete with power supply
iPro □ 192 floodlights can be wall-mounted using the special base BZM5.

□ 192 - Multi Chip Lens

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	945.5	21.2	S 12°	RGB		DMX-RDM	192x192x200	BV60
New	883.5	21.2	F 28° / 30°	RGB		DMX-RDM	192x192x200	BV61

Complete with power supply and electronic DMX512-RDM control card. DMX specifications require the insertion of a 120 Ohm terminating resistor (code BZQ7) to be placed between the DATA+ and DATA- cables of the last product in the line.
iPro floodlights □ 192 can be wall-mounted using the special base BZM5.

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	3239	33.8	S 12° / 10°	Tunable White	80	DMX-RDM	192x192x200	BV62
New	2844	33.8	F 34°	Tunable White	80	DMX-RDM	192x192x200	BV63

Tunable white: 2700K÷6000K

□ 192 - Multi Chip Lens

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	1457.5	31	S 12° / 10°	RGBW - 4000K		DMX-RDM	192x192x200	JNN1
New	1265	31	F 38°	RGBW - 4000K		DMX-RDM	192x192x200	JNN2

Complete with power supply and electronic DMX512-RDM control card. DMX specifications require the insertion of a 120 Ohm terminating resistor (code BZQ7) to be placed between the DATA+ and DATA- cables of the last product in the line.
iPro floodlights □ 192 can be wall-mounted using the special base BZM5.

iPro □ 192mm wall mounted 34 code(s)

□ 192 - C.o.B. - Optibeam Reflector

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	6609.6	59.2	M 17° / 16°	4000	80	DALI-2	192x192x200	EP88
New	6455.7	59.2	M 17° / 16°	3000	80	DALI-2	192x192x200	EP89
New	2800	27.2	F 28°	Tunable White		DALI-2	192x192x200	EP96
New	2800	27.2	F 28°	Tunable White		DMX-RDM	192x192x200	EP99
New	3304.8	26.6	F 32°	4000	80	DALI-2	192x192x200	EP76
New	3159	26.6	F 32°	3000	80	DALI-2	192x192x200	EP77
New	5232.6	45.3	F 32°	4000	80	DALI-2	192x192x200	EP82
New	5111.1	45.3	F 32°	3000	80	DALI-2	192x192x200	EP83
New	6609.6	59.2	F 32°	4000	80	DALI-2	192x192x200	EP90
New	6455.7	59.2	F 32°	3000	80	DALI-2	192x192x200	EP91
New	2835	27.2	WF 40°	Tunable White		DALI-2	192x192x200	EP97
New	2835	27.2	WF 40°	Tunable White		DMX-RDM	192x192x200	EQ01
New	3304.8	26.6	WF 46° / 47°	4000	80	DALI-2	192x192x200	EP78
New	3159	26.6	WF 46° / 47°	3000	80	DALI-2	192x192x200	EP79
New	5232.6	45.3	WF 46° / 47°	4000	80	DALI-2	192x192x200	EP84
New	5111.1	45.3	WF 46° / 47°	3000	80	DALI-2	192x192x200	EP85
New	6609.6	59.2	WF 46° / 47°	4000	80	DALI-2	192x192x200	EP92
New	6455.7	59.2	WF 46° / 47°	3000	80	DALI-2	192x192x200	EP93
New	3264	26.6	VWF 82°	4000	80	DALI-2	192x192x200	EP80
New	3120	26.6	VWF 82°	3000	80	DALI-2	192x192x200	EP81
New	2940	27.2	VWF 82°	Tunable White		DALI-2	192x192x200	EP98
New	2940	27.2	VWF 82°	Tunable White		DMX-RDM	192x192x200	EQ02
New	5168	45.3	VWF 82°	4000	80	DALI-2	192x192x200	EP86
New	5048	45.3	VWF 82°	3000	80	DALI-2	192x192x200	EP87
New	6528	59.2	VWF 82°	4000	80	DALI-2	192x192x200	EP94
New	6376	59.2	VWF 82°	3000	80	DALI-2	192x192x200	EP95

Complete with power supply. DALI versions occupy 1 address.
iPro □ 192 floodlights can be wall-mounted using the special base BZM5.

□ 192 - Multi Chip Lens

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	3280	31.1	S 12° / 10°	4000	80	DALI-2	192x192x200	BG35
New	3280	31.1	S 12° / 10°	3000	80	DALI-2	192x192x200	BG36
New	2920	31.1	M 20°	4000	80	DALI-2	192x192x200	BG37
New	2920	31.1	M 20°	3000	80	DALI-2	192x192x200	BG38

Complete with power supply
iPro □ 192 floodlights can be wall-mounted using the special base BZM5.

□ 192 - Multi Chip Lens

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	945.5	21.2	S 12°	RGB		DMX-RDM	192x192x200	BV60
New	883.5	21.2	F 28° / 30°	RGB		DMX-RDM	192x192x200	BV61

Complete with power supply and electronic DMX512-RDM control card. DMX specifications require the insertion of a 120 Ohm terminating resistor (code BZQ7) to be placed between the DATA+ and DATA- cables of the last product in the line.
iPro floodlights □ 192 can be wall-mounted using the special base BZM5.

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	3239	33.8	S 12° / 10°	Tunable White	80	DMX-RDM	192x192x200	BV62
New	2844	33.8	F 34°	Tunable White	80	DMX-RDM	192x192x200	BV63

Tunable white: 2700K÷6000K

MultiPro pole mounted 4 code(s)

□ 192 - Multi Chip Lens

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	3280	31.1	S 12° / 10°	4000	80	DALI-2	192x192x200	BG35
New	3280	31.1	S 12° / 10°	3000	80	DALI-2	192x192x200	BG36
New	2920	31.1	M 20°	4000	80	DALI-2	192x192x200	BG37
New	2920	31.1	M 20°	3000	80	DALI-2	192x192x200	BG38

Complete with power supply
iPro □ 192 floodlights can be wall-mounted using the special base BZM5.

MultiPro wall mounted 4 code(s)

□ 192 - Multi Chip Lens

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	3280	31.1	S 12° / 10°	4000	80	DALI-2	192x192x200	BG35
New	3280	31.1	S 12° / 10°	3000	80	DALI-2	192x192x200	BG36
New	2920	31.1	M 20°	4000	80	DALI-2	192x192x200	BG37
New	2920	31.1	M 20°	3000	80	DALI-2	192x192x200	BG38

Complete with power supply
iPro □ 192 floodlights can be wall-mounted using the special base BZM5.

MultiPro minimal and connected pole 44 code(s)

□ 192 - C.o.B. - Optibeam Reflector

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	6609.6	59.2	M 17° / 16°	4000	80	DALI-2	192x192x200	EP88
New	6455.7	59.2	M 17° / 16°	3000	80	DALI-2	192x192x200	EP89
New	2800	27.2	F 28°	Tunable White		DALI-2	192x192x200	EP96
New	2800	27.2	F 28°	Tunable White		DMX-RDM	192x192x200	EP99
New	3304.8	26.6	F 32°	4000	80	DALI-2	192x192x200	EP76
New	3159	26.6	F 32°	3000	80	DALI-2	192x192x200	EP77
New	5232.6	45.3	F 32°	4000	80	DALI-2	192x192x200	EP82
New	5111.1	45.3	F 32°	3000	80	DALI-2	192x192x200	EP83
New	6609.6	59.2	F 32°	4000	80	DALI-2	192x192x200	EP90
New	6455.7	59.2	F 32°	3000	80	DALI-2	192x192x200	EP91
New	2835	27.2	WF 40°	Tunable White		DALI-2	192x192x200	EP97
New	2835	27.2	WF 40°	Tunable White		DMX-RDM	192x192x200	EQ01
New	3304.8	26.6	WF 46° / 47°	4000	80	DALI-2	192x192x200	EP78
New	3159	26.6	WF 46° / 47°	3000	80	DALI-2	192x192x200	EP79
New	5232.6	45.3	WF 46° / 47°	4000	80	DALI-2	192x192x200	EP84
New	5111.1	45.3	WF 46° / 47°	3000	80	DALI-2	192x192x200	EP85
New	6609.6	59.2	WF 46° / 47°	4000	80	DALI-2	192x192x200	EP92
New	6455.7	59.2	WF 46° / 47°	3000	80	DALI-2	192x192x200	EP93
New	3264	26.6	VWF 82°	4000	80	DALI-2	192x192x200	EP80
New	3120	26.6	VWF 82°	3000	80	DALI-2	192x192x200	EP81
New	2940	27.2	VWF 82°	Tunable White		DALI-2	192x192x200	EP98
New	2940	27.2	VWF 82°	Tunable White		DMX-RDM	192x192x200	EQ02
New	5168	45.3	VWF 82°	4000	80	DALI-2	192x192x200	EP86
New	5048	45.3	VWF 82°	3000	80	DALI-2	192x192x200	EP87
New	6528	59.2	VWF 82°	4000	80	DALI-2	192x192x200	EP94
New	6376	59.2	VWF 82°	3000	80	DALI-2	192x192x200	EP95

Complete with power supply. DALI versions occupy 1 address.
iPro □ 192 floodlights can be wall-mounted using the special base BZM5.

□ 192 - C.o.B. - Optibeam Lens

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	725	14.1	SS 6°	4000	80	DALI-2	192x192x225	EP72
New	696	14.1	SS 6°	3000	80	DALI-2	192x192x225	EP73
New	1351.1	18.3	S 10°	4000	80	DALI-2	192x192x200	EP74
New	1333.4	18.3	S 10°	3000	80	DALI-2	192x192x200	EP75

□ 192 - C.o.B. - Opti Smart Reflector

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	3442.5	33.2	A60	4000	80	DALI-2	192x192x200	EQ03
New	3442.5	33.2	A60	3000	80	DALI-2	192x192x200	EQ04

Recommended pole application

□ 192 - C.o.B. - Opti Smart Reflector

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	3847.5	33.2	ST1	4000	70	DALI-2	192x192x200	EQ05
New	3523.5	33.2	ST1	3000	70	DALI-2	192x192x200	EQ06

Recommended pole application

□ 192 - Multi Chip Lens

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	3280	31.1	S 12° / 10°	4000	80	DALI-2	192x192x200	BG35
New	3280	31.1	S 12° / 10°	3000	80	DALI-2	192x192x200	BG36
New	2920	31.1	M 20°	4000	80	DALI-2	192x192x200	BG37
New	2920	31.1	M 20°	3000	80	DALI-2	192x192x200	BG38

Complete with power supply
iPro □ 192 floodlights can be wall-mounted using the special base BZM5.

□ 192 - Multi Chip Lens

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	945.5	21.2	S 12°	RGB		DMX-RDM	192x192x200	BV60
New	883.5	21.2	F 28° / 30°	RGB		DMX-RDM	192x192x200	BV61

Complete with power supply and electronic DMX512-RDM control card. DMX specifications require the insertion of a 120 Ohm terminating resistor (code BZQ7) to be placed between the DATA+ and DATA- cables of the last product in the line.
iPro floodlights □ 192 can be wall-mounted using the special base BZM5.

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	3239	33.8	S 12° / 10°	Tunable White	80	DMX-RDM	192x192x200	BV62
New	2844	33.8	F 34°	Tunable White	80	DMX-RDM	192x192x200	BV63

Tunable white: 2700K÷6000K

□ 192 - Multi Chip Lens

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	1457.5	31	S 12° / 10°	RGBW - 4000K		DMX-RDM	192x192x200	JNN1
New	1265	31	F 38°	RGBW - 4000K		DMX-RDM	192x192x200	JNN2

Complete with power supply and electronic DMX512-RDM control card. DMX specifications require the insertion of a 120 Ohm terminating resistor (code BZQ7) to be placed between the DATA+ and DATA- cables of the last product in the line.
iPro floodlights □ 192 can be wall-mounted using the special base BZM5.

updated

Downloads
Documentation:
Download zip
Photometric data (.ies / .ldt / Dialux / Relux):
Download zip
3D BIM Revit:
Download zip
2D/3D drawings (.dwg / .max):
Download zip
Certifications:
Download zip
Software & documentation:
Download zip

Download All

Do you want to know more?

Make Enquiry 5 year product warranty included

Search

Your search returned no results

Code Finder

X572

Accessory for down installation

Product Information

Available colours

Technical Specifications

Installation information

Downloads

Documentation:

Photometric data (.ies / .ldt / Dialux / Relux):

3D BIM Revit:

2D/3D drawings (.dwg / .max):

Certifications:

Software & documentation:

Search

Your search returned no results

Code Finder

Accessory for down installation

Product Information

Available colours

Technical Specifications

Installation information

Agorà

Woody

iPro

Downloads

Documentation:

Photometric data (.ies / .ldt / Dialux / Relux):

3D BIM Revit:

2D/3D drawings (.dwg / .max):

Certifications:

Software & documentation:

Sign in

Not yet registered?
