iN60 Evo System belongs to iN60 Evo System Opal

RY01

Updating Product Data...

Photometric configuration only available on screens above 1024px
updated

iN60 Evo System - Surface/pendant-mounted corner module - Warm White - Down - GL LO - DALI

Product Information

  • Material: extruded aluminium
  • Size (mm): 639x639x104

Available colours

  • 01 White
  • 04 Black
  • 12 Aluminium

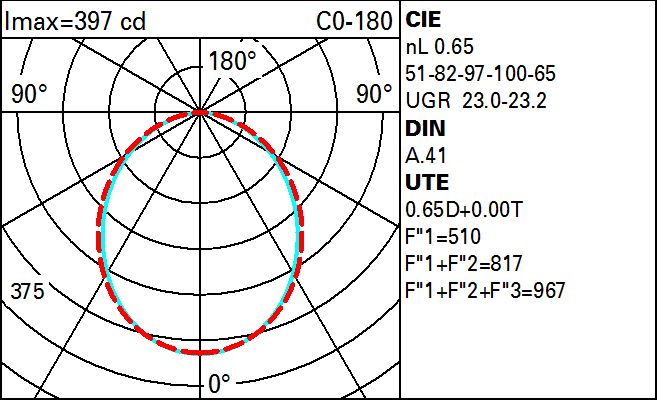

Lighting parameters

Electrical parameters

  • Dimmable Electronic Power supply included
  • Control: DALI-2
  • N° lamps assembly: 1
  • Power Factor: See installation instructions
  • Inrush Current: 18 A / 250 µs
  • Circuit Braker:
    B10A: 21 luminaires
    B16A: 34 luminaires
    C10A: 35 luminaires
    C16A: 57 luminaires
  • Perc Min Dimmer: 1
  • Overvoltage Protection: 0kV Common mode & 0kV Differential mode

Technical Specifications

Installation information

  • Installation: Surface or pendant-mounted
  • Environment: Indoor
  • Wiring: Quick coupling terminal block connection to simplify connections between the subsequent modules. Complete with integrated dimmable DALI power supply.
