Palco Low Voltage belongs to Palco Low Voltage ø 37 mm with rodPalco Low Voltage ø 19 / 37 mm with rod for Low Voltage track DALI Powerline

Q646

Updating Product Data...

Photometric configuration only available on screens above 1024px

Select a combination of accessories to download
specific product data sheets and photometric curves.

updated

Palco Low Voltage - Palco LV spotlight Ø 37 - horizontal rod - medium beam - 9.6W 516.8lm - 2700K - CRI 90

Product Information

  • Material: die-cast aluminium and thermoplastic
  • Size (mm): ø37, Weight (kg): 0.20
  • Design: Artec Studio

Available colours

  • 01 White
  • 04 Black

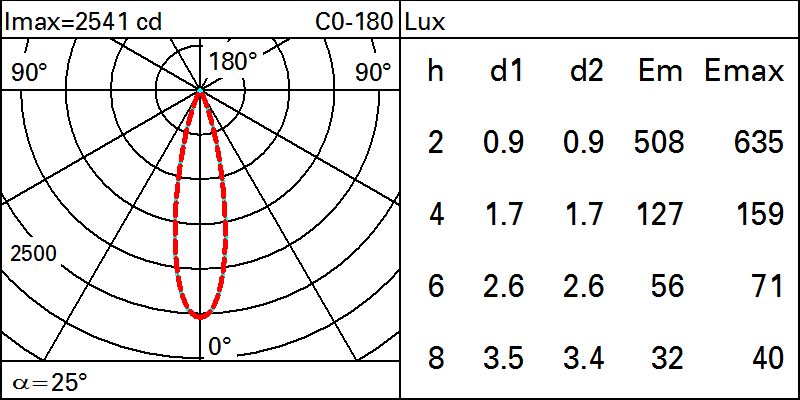

Lighting parameters

Electrical parameters

  • Dimmable Electronic Driver
  • Control: DALI
  • N° lamps assembly: 1
  • Power Factor: See installation instructions
  • Perc Min Dimmer: 5
  • Overvoltage Protection: 2kV Common mode & 1kV Differential mode
  • LED Current [mA]: 650

Technical Specifications

Installation information

  • Installation: The structure is secured mechanically to the track with an adapter and a "turn & block" safety system.
  • Environment: Indoor
  • Wiring: Integrated DC/DC LED driver in adapter - direct connection on 48V track. Track power supply unit to be ordered separately.
Accessories (4)

  • MZ47
    Refractor for elliptical distribution
    Size (mm): ø28
    • 24 Clear transparent

  • MZ43
    Honeycomb louvre
    Size (mm): ø28
    • 04 Black

  • MZ49
    Spill ring
    Size (mm): ø28
    • 04 Black

  • MZ48
    Cylindrical screen
    Size (mm): ø37
    • 04 Black
    • 47 White / Black
