Laser Blade XS belongs to Laser Blade XS High Contrast

Q498

Updating Product Data...

Photometric configuration only available on screens above 1024px
updated

Laser Blade XS - Frame 5 cells - Medium beam - LED - 12.4W 703.1lm - 2700K - CRI 90

Product Information

  • Material: die-cast aluminium and thermoplastic
  • Size (mm): 100x28x50, Weight (kg): 0.35
  • Design: iGuzzini

Available colours

  • 01 White
  • 43 Black/Black
  • 47 White / Black

Further colours on request

  • 41 White / gold
  • 74 Grey / Black
  • E7 white / burnished chrome

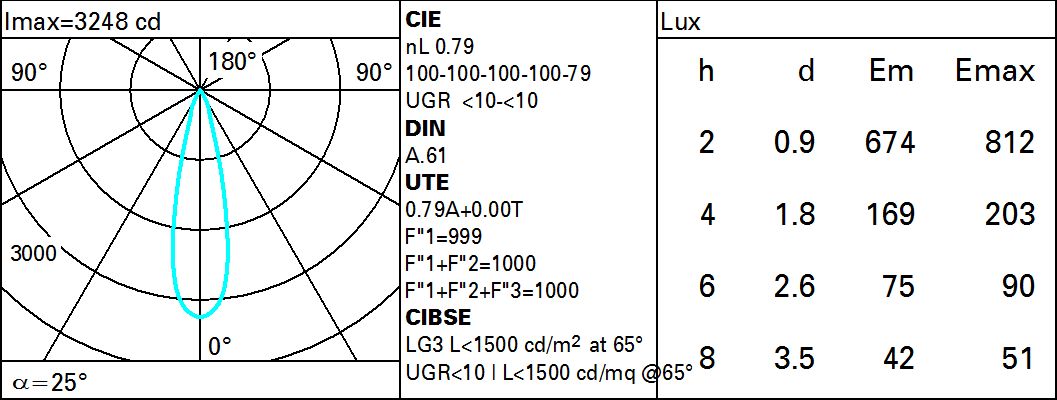

Lighting parameters

Electrical parameters

  • Dimmable Electronic Driver included
  • Control: DALI-2
  • N° lamps assembly: 1

Technical Specifications

Installation information

  • Installation: Recessed with steel wire springs for false ceilings from 1 to 25 mm thick - preparation hole 24 x 96.
  • Environment: Indoor
  • Wiring: On the power supply unit with terminal board included.
