Palco ø 102 mm

All Palco Overview Lighting Effects Application Imagery Product Details Codes & Downloads

All Palco

Lighting Effects

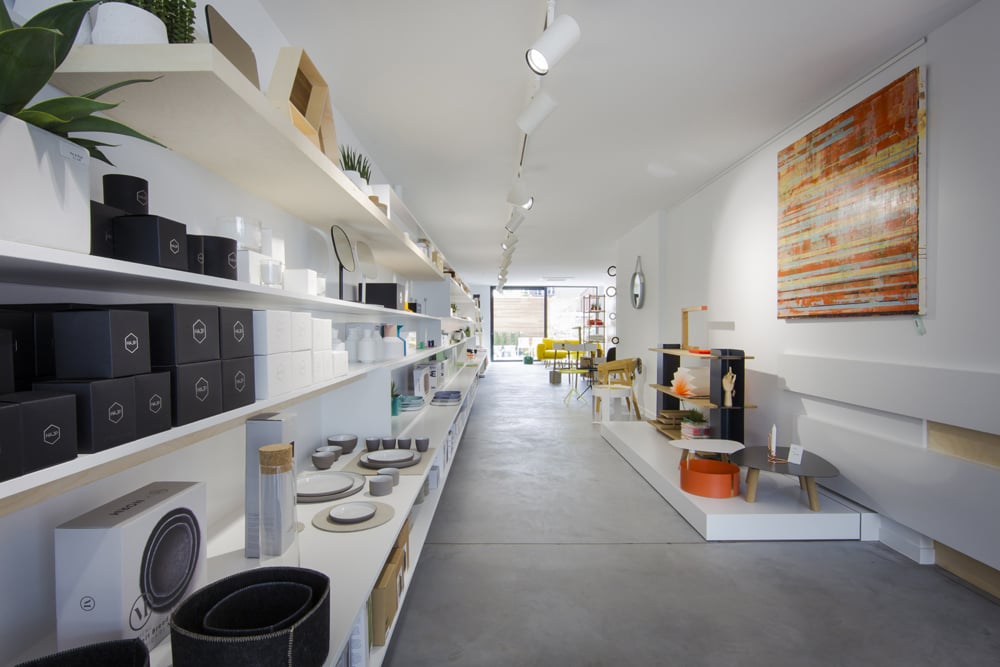

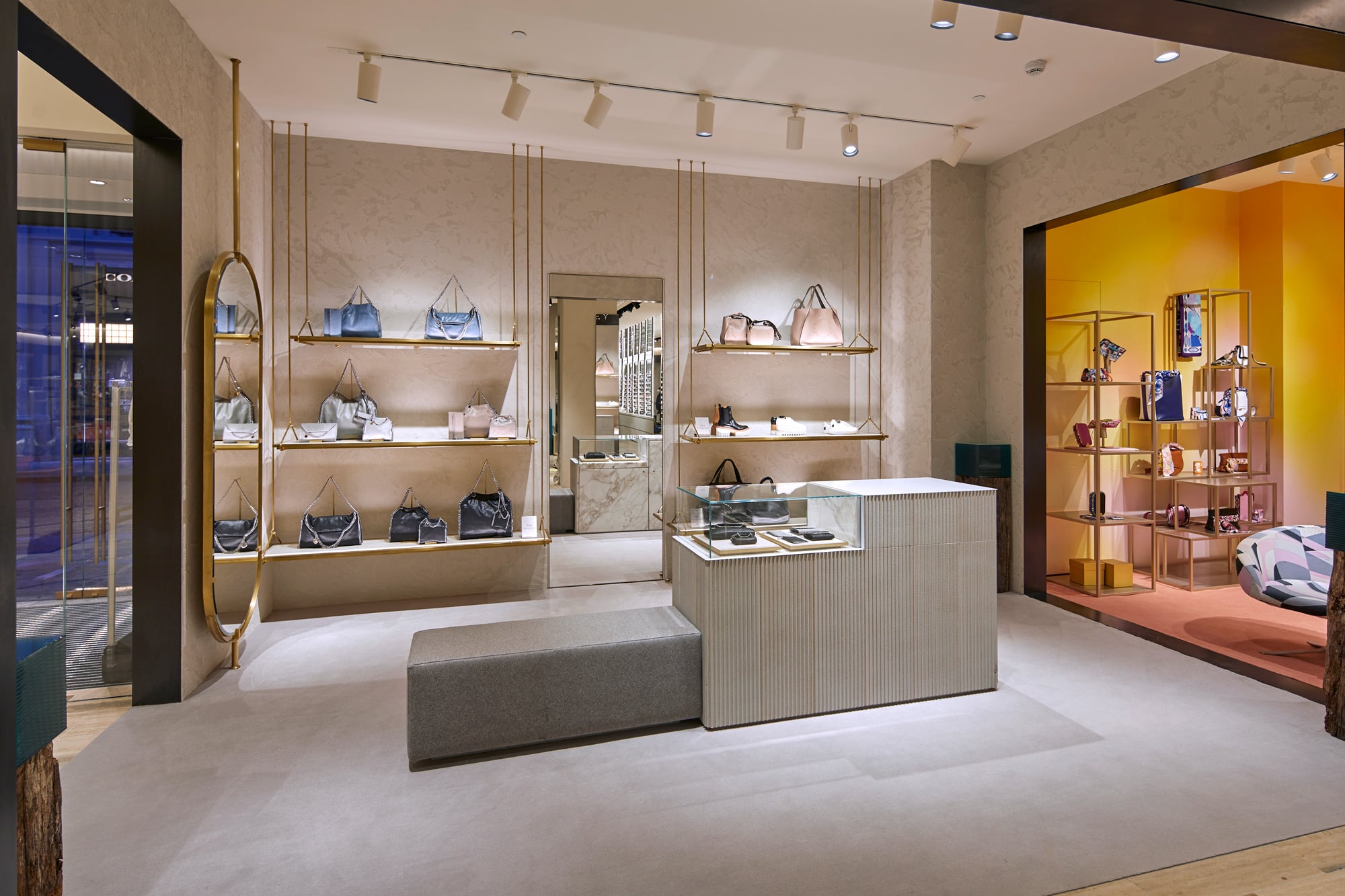

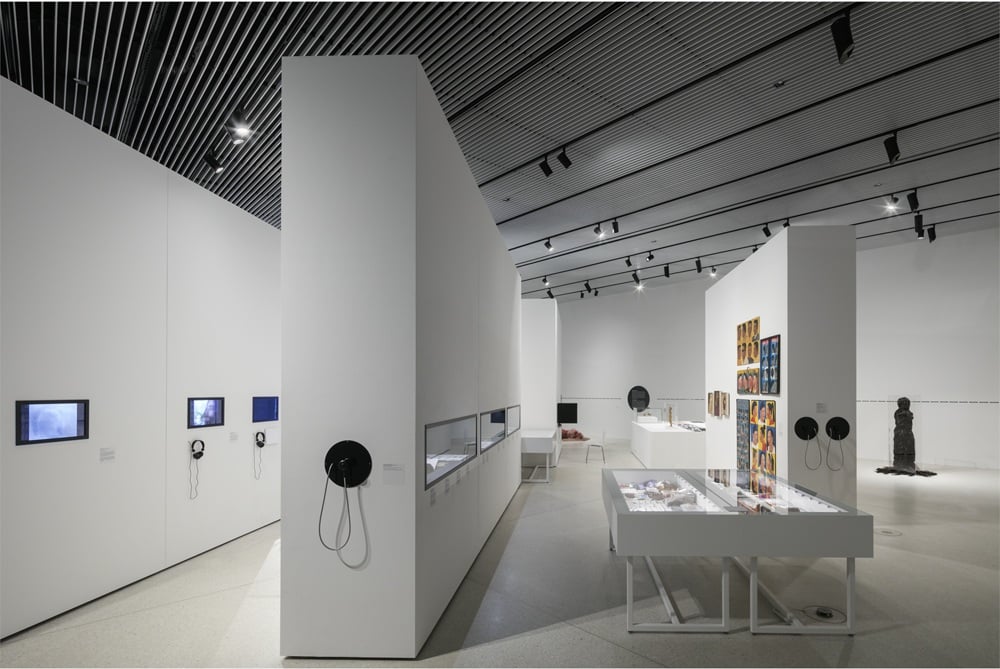

Application imagery for Palco ø 102 mm

Product Details

Installation on three-phase track and on a ceiling-mounted base.
Made of die-cast aluminium and thermoplastic material.
Opti Beam interchanging reflectors with high luminous efficiency and uniform distribution.
LED versions with high color rendering index.
High visual comfort.
Inclination of 90° on horizontal plane and 360° rotation around the vertical axis, with mechanical aiming lock.
Passive heat dissipation.

Colours available for Palco ø 102 mm

01 White
04 Black

Do you want to know more?

Click to access our Contact Us page where you can send us an enquiry.

Make Enquiry

5 year product warranty included

Discover more

Palco ø 102 mm 34 code(s)

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	291.6	8.5	SS 8°	3000	90	with potentiometer	ø102x204	P604
New	291.6	8.5	SS 8°	3000	90	DALI-2	ø102x204	P605
New	2355.2	27.5	S 12°	4000	80	with potentiometer	ø102x204	P203
New	2355.2	26.4	S 12°	4000	80	DALI-2	ø102x204	P626
New	1987.2	29.6	S 12°	4000	97	with potentiometer	ø102x204	QG42
New	1987.2	28.5	S 12°	4000	97	DALI-2	ø102x204	QG50
New	2134.4	29.6	S 12°	3000	90	with potentiometer	ø102x204	P207
New	2134.4	28.5	S 12°	3000	90	DALI-2	ø102x204	P630
New	1876.8	29.6	S 12°	3000	97	with potentiometer	ø102x204	QG46
New	1876.8	28.5	S 12°	3000	97	DALI-2	ø102x204	QG54
New	2348.16	27.5	M 20°	4000	80	with potentiometer	ø102x204	P204
New	2348.16	26.4	M 20°	4000	80	DALI-2	ø102x204	P627
New	1981.26	29.6	M 20°	4000	97	with potentiometer	ø102x204	QG43
New	1981.26	28.5	M 20°	4000	97	DALI-2	ø102x204	QG51
New	2128.02	29.6	M 20°	3000	90	with potentiometer	ø102x204	P208
New	2128.02	28.5	M 20°	3000	90	DALI-2	ø102x204	P631
New	1871.19	29.6	M 20°	3000	97	with potentiometer	ø102x204	QG47
New	1871.19	28.5	M 20°	3000	97	DALI-2	ø102x204	QG55
New	2277.44	27.5	F 38°	4000	80	with potentiometer	ø102x204	P205
New	2277.44	26.4	F 38°	4000	80	DALI-2	ø102x204	P628
New	1921.59	29.6	F 38°	4000	97	with potentiometer	ø102x204	QG44
New	1921.59	28.5	F 38°	4000	97	DALI-2	ø102x204	QG52
New	2063.93	29.6	F 38°	3000	90	with potentiometer	ø102x204	P209
New	2063.93	28.5	F 38°	3000	90	DALI-2	ø102x204	P632
New	1814.84	29.6	F 38°	3000	97	with potentiometer	ø102x204	QG48
New	1814.84	28.5	F 38°	3000	97	DALI-2	ø102x204	QG56
New	2413.12	27.5	WF 46°	4000	80	with potentiometer	ø102x204	P206
New	2413.12	26.4	WF 46°	4000	80	DALI-2	ø102x204	P629
New	2036.07	29.6	WF 46°	4000	97	with potentiometer	ø102x204	QG45
New	2036.07	28.5	WF 46°	4000	97	DALI-2	ø102x204	QG53
New	2186.89	29.6	WF 46°	3000	90	with potentiometer	ø102x204	P210
New	2186.89	28.5	WF 46°	3000	90	DALI-2	ø102x204	P633
New	1922.96	29.6	WF 46°	3000	97	with potentiometer	ø102x204	QG49
New	1922.96	28.5	WF 46°	3000	97	DALI-2	ø102x204	QG57
