Light Shed 60 Linen pendant

All Light Shed 60 Linen Overview Application Imagery Product Details Codes & Downloads

Light Shed 60 Pendant Configurator

Design your Light Shed 60 pendant: the Configurator will allow you to customize all its features, check its photometric performance, and download installation info and quantities list.

Light Shed 60 Pendant Configurator

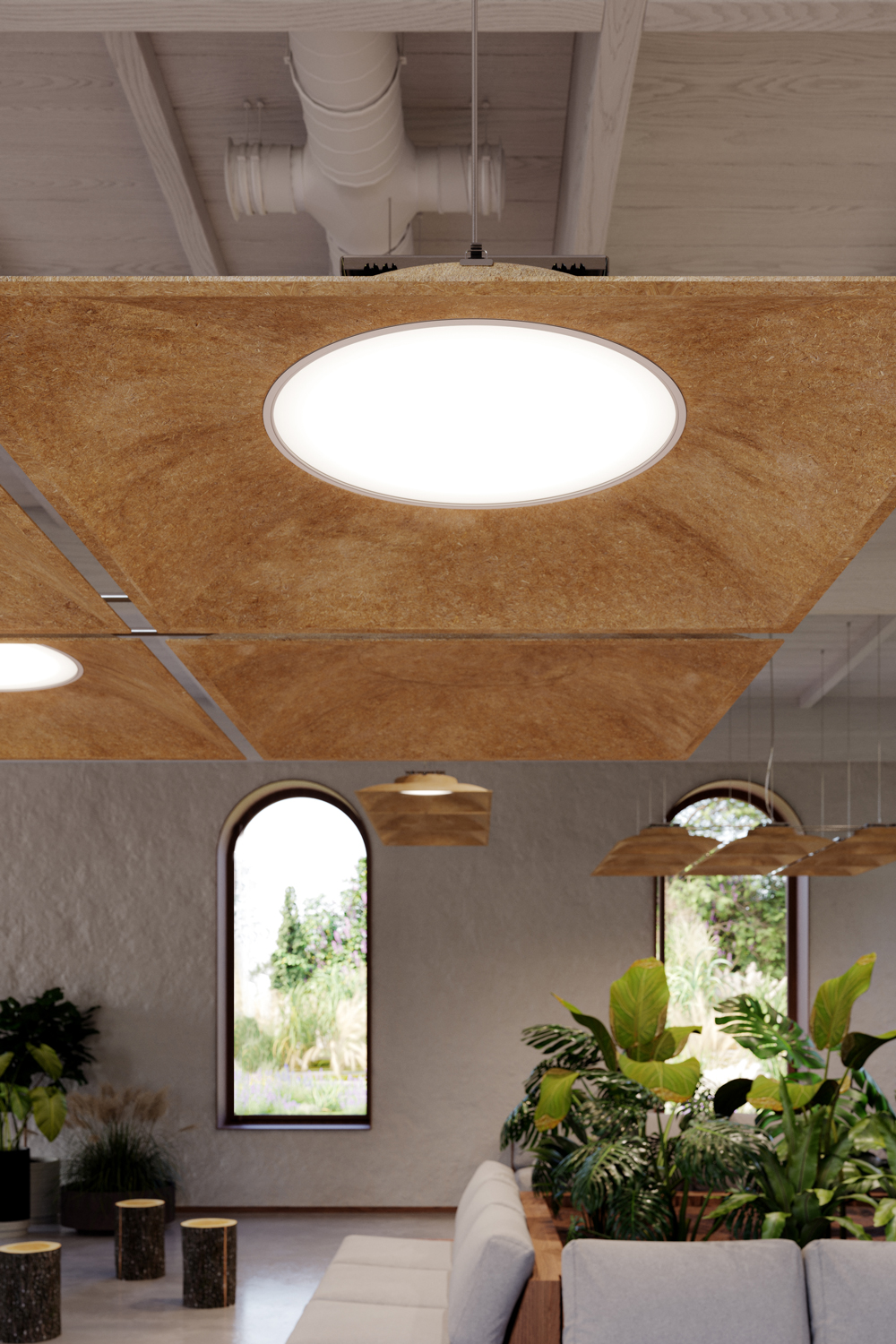

Application imagery for Light Shed 60 Linen pendant

Product Details

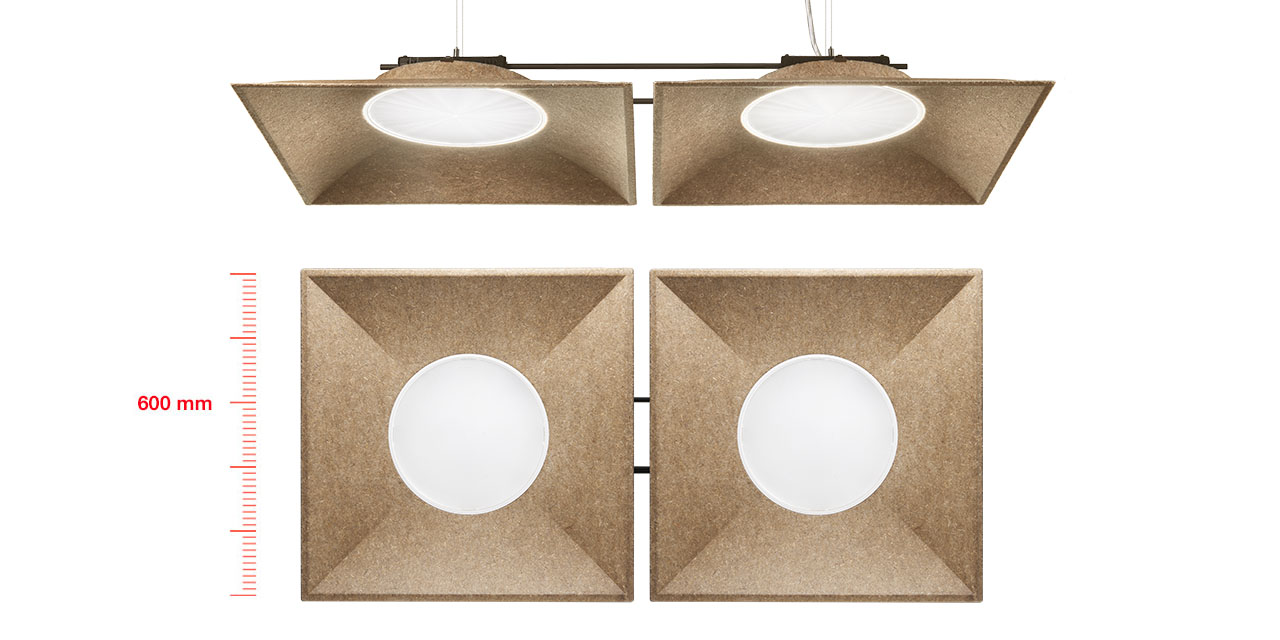

596x596mm luminaire for suspended or recessed installation on modular grid - LED source with high colour rendering index.
High energy efficiency value.

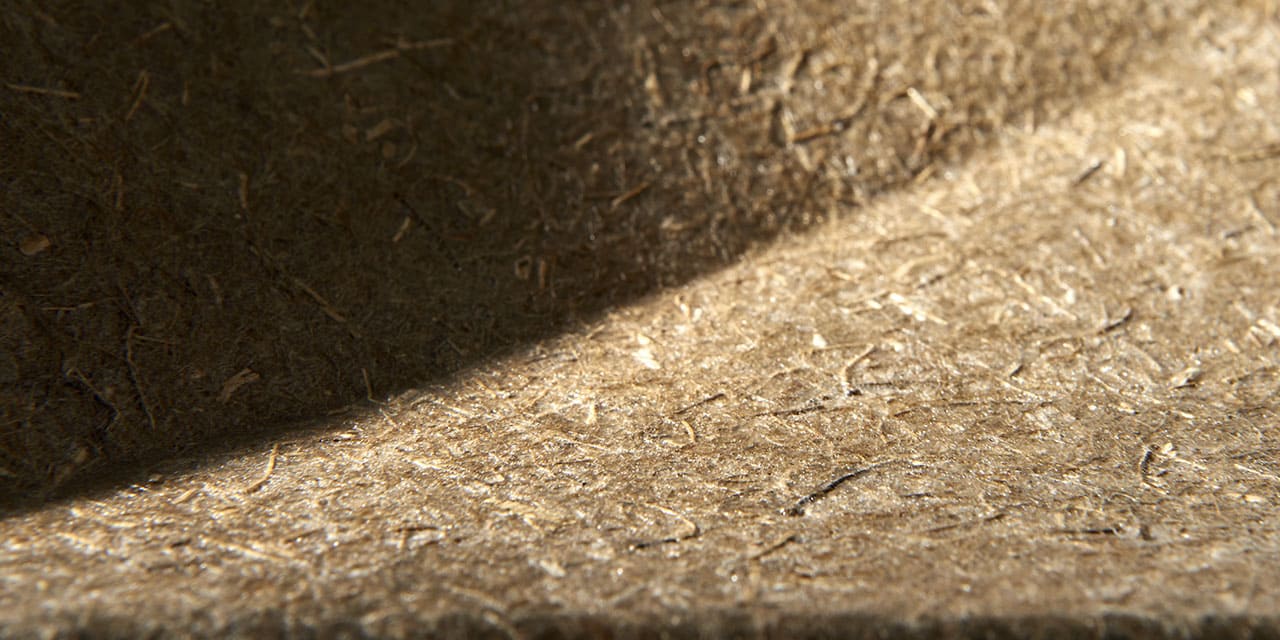

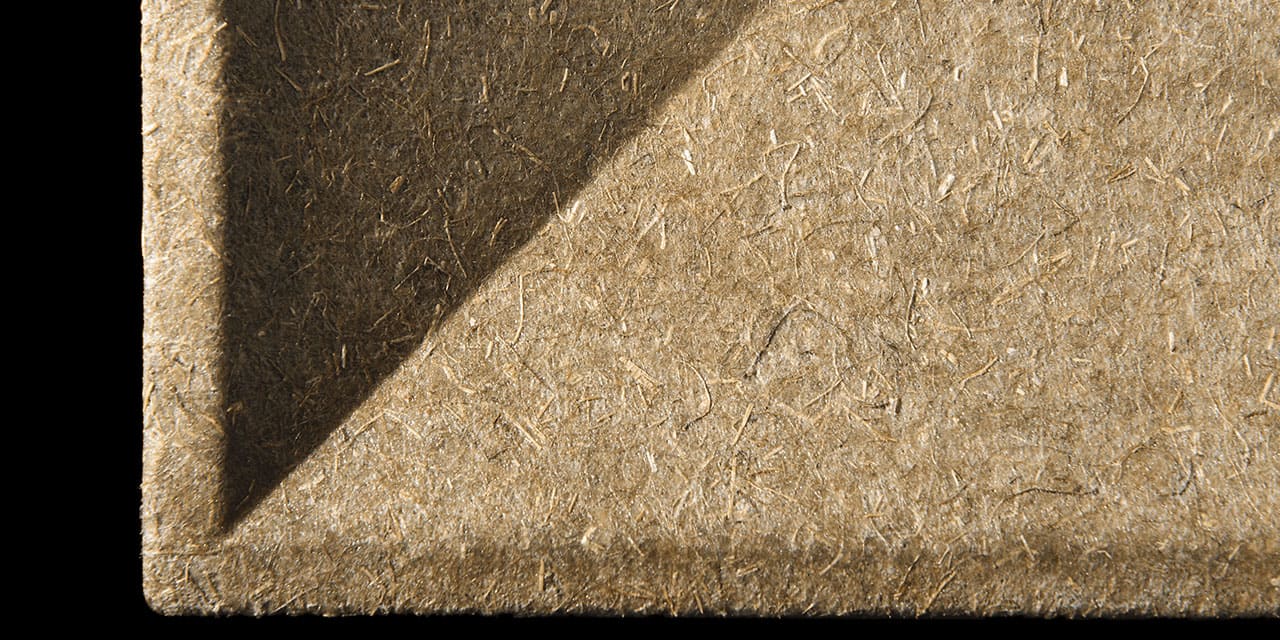

Body in NFPP (Natural Fiber Polypropylene) produced with Bio-Based material (material with biological origin that has the primary advantage of being obtainable from a renewable source).
Product with high-efficiency LEDs complete with MPO screen for UGR<19 L<3000 cd/mq α > 65°, in compliance with EN 12464-1 standard, for use in environments with the use of video terminals.
The DALI driver is free to be placed inside the installation compartment as foreseen in the instruction sheet.
Possibility of suspension installation by means of accessories to be ordered separately.
DALI-2 and CASAMBI versions.

Colours available for Light Shed 60 Linen pendant

S0 Écru

Do you want to know more?

Click to access our Contact Us page where you can send us an enquiry.

Make Enquiry

5 year product warranty included

Discover more

Light Shed 60 Linen pendant 25 code(s)

596x596 mm - MPO Micro Prismatic Optic

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	2898	23.5	UGR	4000	80	DALI-2	596x596x104	RS57
New	2362.5	23.5	UGR	4000	90	DALI-2	596x596x104	RS58
New	2740.5	23.5	UGR	3000	80	DALI-2	596x596x104	RS59
New	2236.5	23.5	UGR	3000	90	DALI-2	596x596x104	RS60
New	2299.5	24.9	UGR	Tunable White	90	DALI-2	596x596x104	RS61

596x596 mm - MPO Micro Prismatic Optic

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	2898	24.4	UGR	4000	80	Casambi	596x596x104	PY69
New	2362.5	24.4	UGR	4000	90	Casambi	596x596x104	PY70
New	2740.5	24.4	UGR	3000	80	Casambi	596x596x104	PY71
New	2236.5	24.4	UGR	3000	90	Casambi	596x596x104	PY72
New	2299.5	25.7	UGR	Tunable White	90	Casambi	596x596x104	PY73

596x596 mm - MPO Micro Prismatic Optic - high output

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	3496.5	29.2	UGR	4000	80	DALI-2	596x596x104	RS62
New	2835	29.2	UGR	4000	90	DALI-2	596x596x104	RS63
New	3307.5	29.2	UGR	3000	80	DALI-2	596x596x104	RS64
New	2709	29.2	UGR	3000	90	DALI-2	596x596x104	RS65
New	2803.5	30.6	UGR	Tunable White	90	DALI-2	596x596x104	RS66

596x596 mm - MPO Micro Prismatic Optic - high output

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	3496.5	30.2	UGR	4000	80	Casambi	596x596x104	PY74
New	2835	30.2	UGR	4000	90	Casambi	596x596x104	PY75
New	3307.5	30.2	UGR	3000	80	Casambi	596x596x104	PY76
New	2709	30.2	UGR	3000	90	Casambi	596x596x104	PY77
New	2803.5	30.9	UGR	Tunable White	90	Casambi	596x596x104	PY78

96x596 mm - no light emission

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	-	-					596x596x104	RS67

596x596 mm - no light emission - compatible with smart accessories

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	-	-					596x596x104	RS68

Cover with light and motion multi-sensor

	Short description	Control	Size (mm)	Code
New	Cover with light and motion multi-sensor - DALI-2 – For Light Shed 60 Linen	DALI-2 sensor	ø300x33	PF76

Cover with bracket for external/semi-recessed camera

	Short description	Control	Size (mm)	Code
New	Cover with bracket for external/semi-recessed camera - For Light Shed 60 Linen		ø300x33	PF78

Cover with bracket for recessed camera

	Short description	Control	Size (mm)	Code
New	Cover with bracket for recessed camera - For Light Shed 60 Linen		ø300x33	PF79

The Light Shed 60 Linen Line

iGuzzini

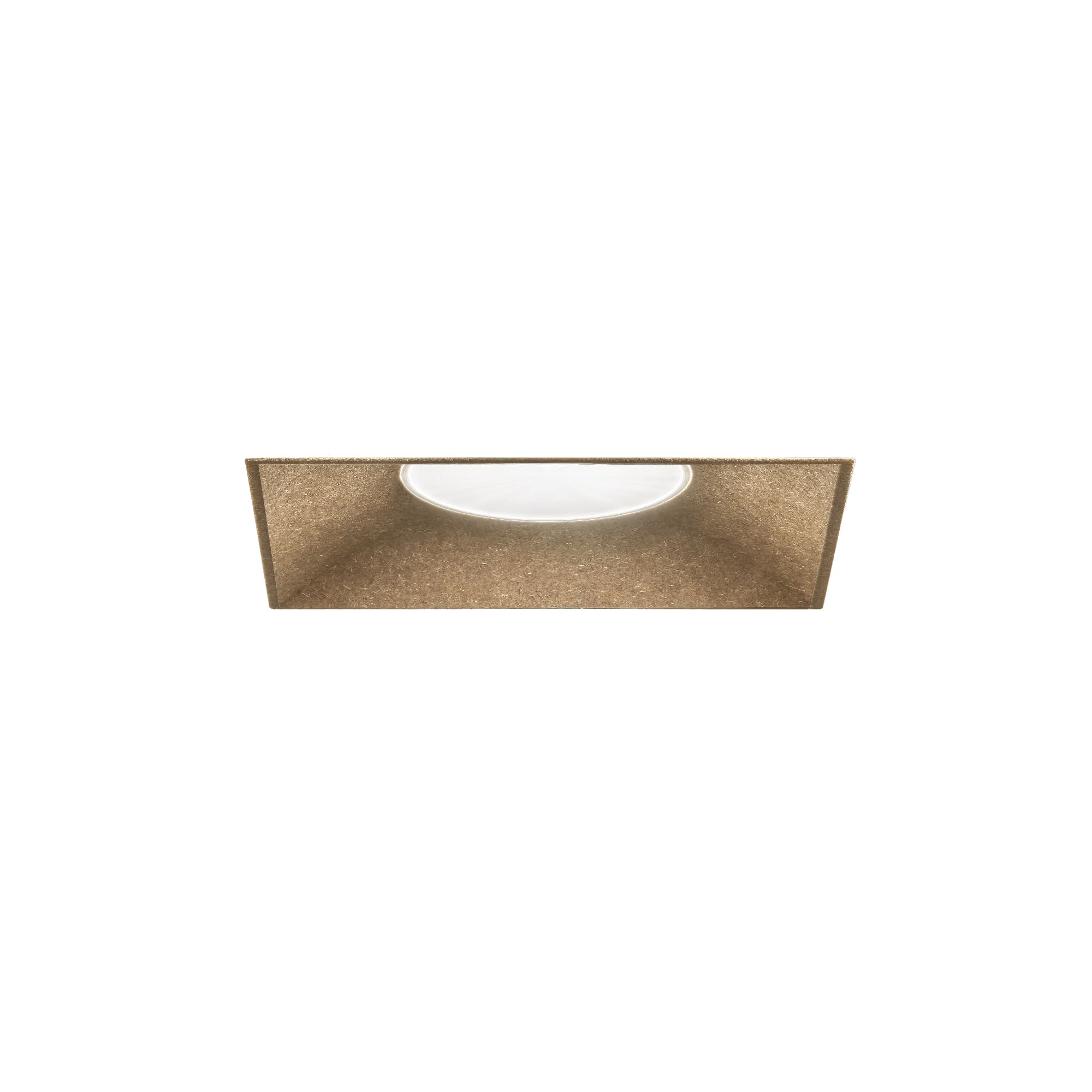

Light Shed 60 Linen Recessed
