Laser Blade XS Wall Washer LGC

All Laser Blade XS Overview Lighting Effects Application Imagery Product Details Codes & Downloads

All Laser Blade XS

[VIDEO] Laser Blade Wall Washer LGC: Ultimate Vertical Enhancement.

Lighting Effects

Application imagery for Laser Blade XS Wall Washer LGC

Product Details

Flush mount installation on false ceilings of thickness 12.5 - 15 - 20 mm for Minimal versions (without perimeter flap) or 1 to 25 mm for Frame versions (with flap) using torsion springs.
Main body with radiant surface made of die-cast aluminium.
Optical system (patented) with textured rippled screen, specially designed to achieve effective wall washer distribution on the wall.
Longitudinal Glare Control version designed to considerably reduce longitudinal glare.
Tunable White versions available (2700K ÷ 5700K).
Installation without tools.
The minimum installation space dimensions are listed in the instruction catalogue.
IP20
IP43 on the visible body of the mount after installation.

Colours available for Laser Blade XS Wall Washer LGC

43 Black/Black
47 White / Black
04 Black

Further colours on request

74 Grey / Black

Do you want to know more?

Click to access our Contact Us page where you can send us an enquiry.

Make Enquiry

5 year product warranty included

Discover more

Laser Blade XS Wall Washer LGC 44 code(s)

Frame version

Longitudinal Glare Control

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	187.6	5.9	WW	4000	90		64x28x50	QD59
New	162.4	5.9	WW	3500	90		64x28x50	RB05
New	154	5.9	WW	3000	90		64x28x50	QD60
New	148.4	5.9	WW	2700	90		64x28x50	QD61

Class of Insulation III
Power supply to be ordered separately

Minimal version

Longitudinal Glare Control

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	187.6	5.9	WW	4000	90		54x22x49	QJ68
New	162.4	5.9	WW	3500	90		54x22x49	RB10
New	154	5.9	WW	3000	90		54x22x49	QJ69
New	148.4	5.9	WW	2700	90		54x22x49	QJ70

Class of Insulation III
Power supply to be ordered separately

Frame version

Longitudinal Glare Control

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	384	12.4	WW	4000	80	DALI-2	100x28x50	EJ97
New	352	12.4	WW	4000	90	DALI-2	100x28x50	QD65
New	307.2	12.4	WW	3500	90	DALI-2	100x28x50	RB07
New	291.2	12.4	WW	3000	90	DALI-2	100x28x50	QD66
New	275.2	12.4	WW	2700	90	DALI-2	100x28x50	QD67

Complete with power supply.

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	278.4	12.8	WW	Tunable White	90	DALI-2	100x28x50	QD68

"Complete with power supply
Tuneable white: 2700K÷5700K"

Minimal version

Longitudinal Glare Control

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	384	12.4	WW	4000	80	DALI-2	89x22x49	EK30
New	352	12.4	WW	4000	90	DALI-2	89x22x49	QJ74
New	307.2	12.4	WW	3500	90	DALI-2	89x22x49	RB12
New	291.2	12.4	WW	3000	90	DALI-2	89x22x49	QJ75
New	275.2	12.4	WW	2700	90	DALI-2	89x22x49	QJ76

Complete with power supply

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	278.4	12.8	WW	Tunable White	90	DALI-2	89x22x49	QJ77

"Complete with power supply
Tuneable white: 2700K÷5700K"

Frame version

Longitudinal Glare Control

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	688	19.2	WW	4000	80	DALI-2	190x28x50	EJ98
New	624	19.2	WW	4000	90	DALI-2	190x28x50	QD69
New	544	19.2	WW	3500	90	DALI-2	190x28x50	RB08
New	528	19.2	WW	3000	90	DALI-2	190x28x50	QD70
New	496	19.2	WW	2700	90	DALI-2	190x28x50	QD71

Complete with power supply
.

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	496	18.9	WW	Tunable White	90	DALI-2	190x28x50	QD72

"Complete with power supply
Tuneable white: 2700K÷5700K"

Minimal version

Longitudinal Glare Control

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	688	19.2	WW	4000	80	DALI-2	179x22x49	EK31
New	624	19.2	WW	4000	90	DALI-2	179x22x49	QJ78
New	544	19.2	WW	3500	90	DALI-2	179x22x49	RB13
New	528	19.2	WW	3000	90	DALI-2	179x22x49	QJ79
New	496	19.2	WW	2700	90	DALI-2	179x22x49	QJ80

Complete with power supply.

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	496	18.9	WW	Tunable White	90	DALI-2	179x22x49	QJ81

"Complete with power supply
Tuneable white: 2700K÷5700K"

Frame version

Longitudinal Glare Control

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	1008	28.4	WW	4000	80	DALI-2	279x28x50	EJ99
New	928	28.4	WW	4000	90	DALI-2	279x28x50	QD73
New	800	28.4	WW	3500	90	DALI-2	279x28x50	RB09
New	768	28.4	WW	3000	90	DALI-2	279x28x50	QD74
New	720	28.4	WW	2700	90	DALI-2	279x28x50	QD75

Complete with power supply.

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	768	28.4	WW	Tunable White	90	DALI-2	279x28x50	QD76

"Complete with power supply
Tuneable white: 2700K÷5700K"

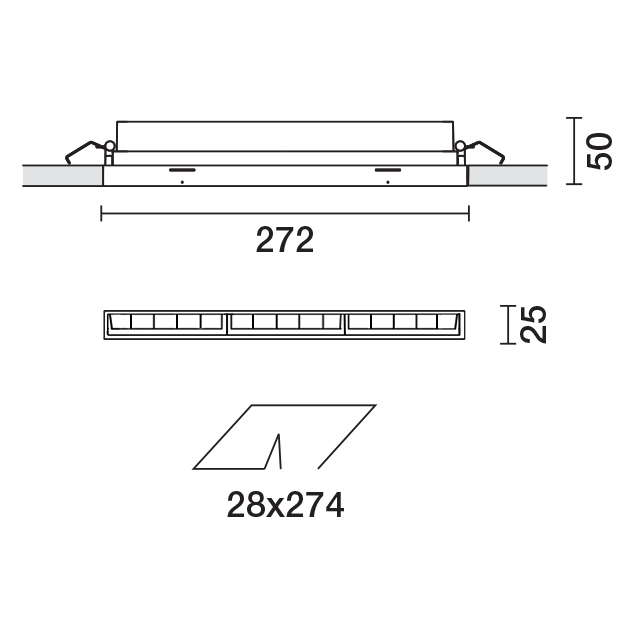

Minimal version

Longitudinal Glare Control

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	1008	28.4	WW	4000	80	DALI-2	268x22x49	EK32
New	928	28.4	WW	4000	90	DALI-2	268x22x49	QJ82
New	800	28.4	WW	3500	90	DALI-2	268x22x49	RB14
New	768	28.4	WW	3000	90	DALI-2	268x22x49	QJ83
New	720	28.4	WW	2700	90	DALI-2	268x22x49	QJ84
