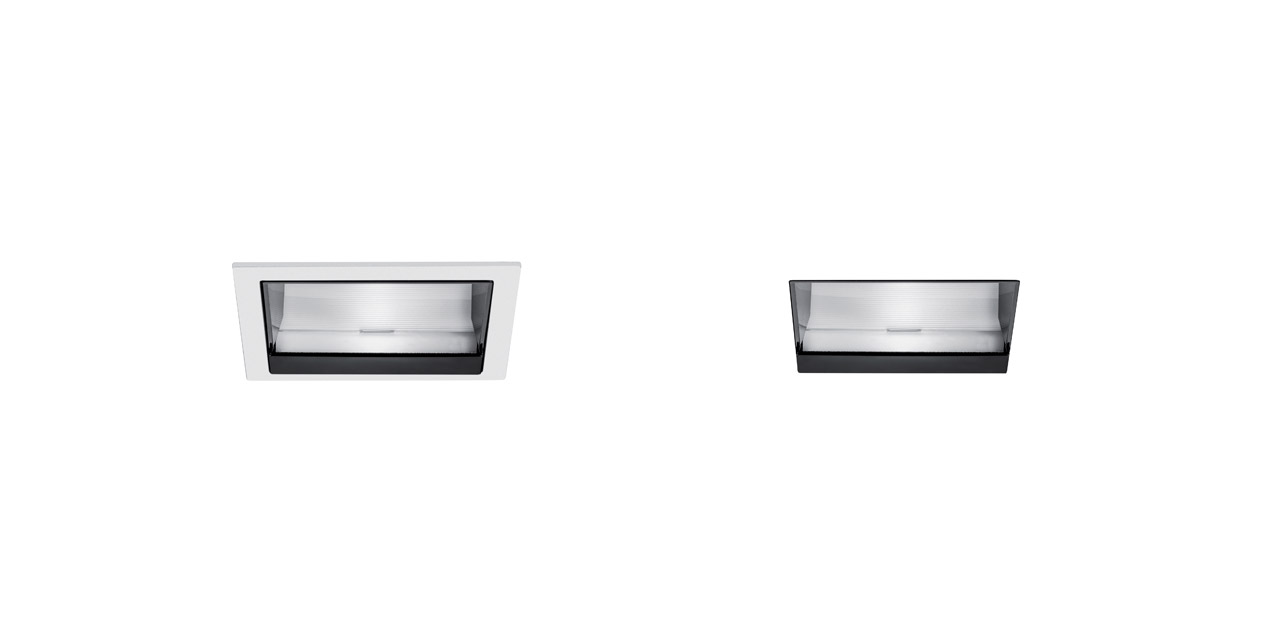

Laser Blade L Wall Washer

All Laser Blade L Overview Lighting Effects Application Imagery Product Details Codes & Downloads
All Laser Blade L

Lighting Effects

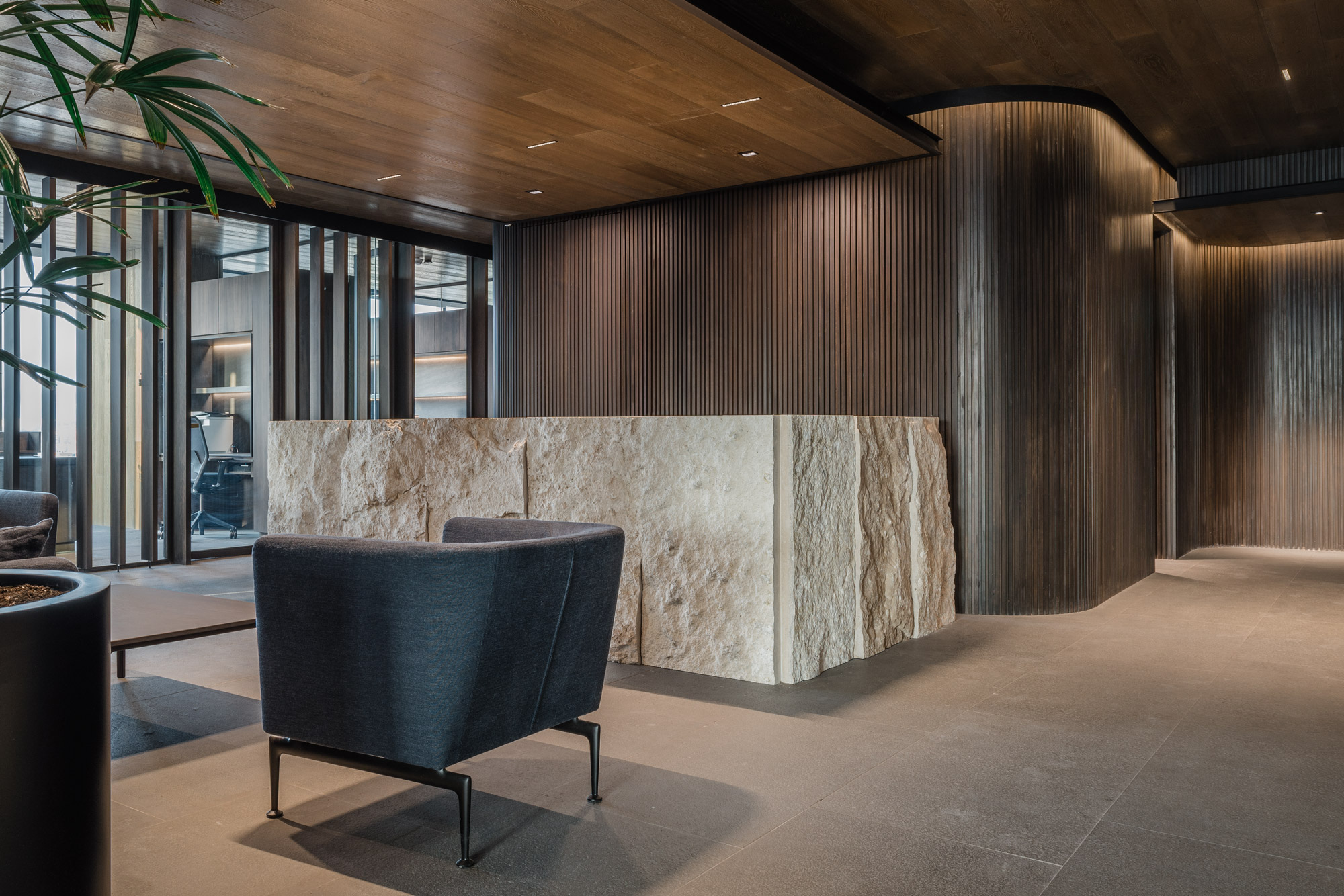

Application imagery for Laser Blade L Wall Washer

Product Details

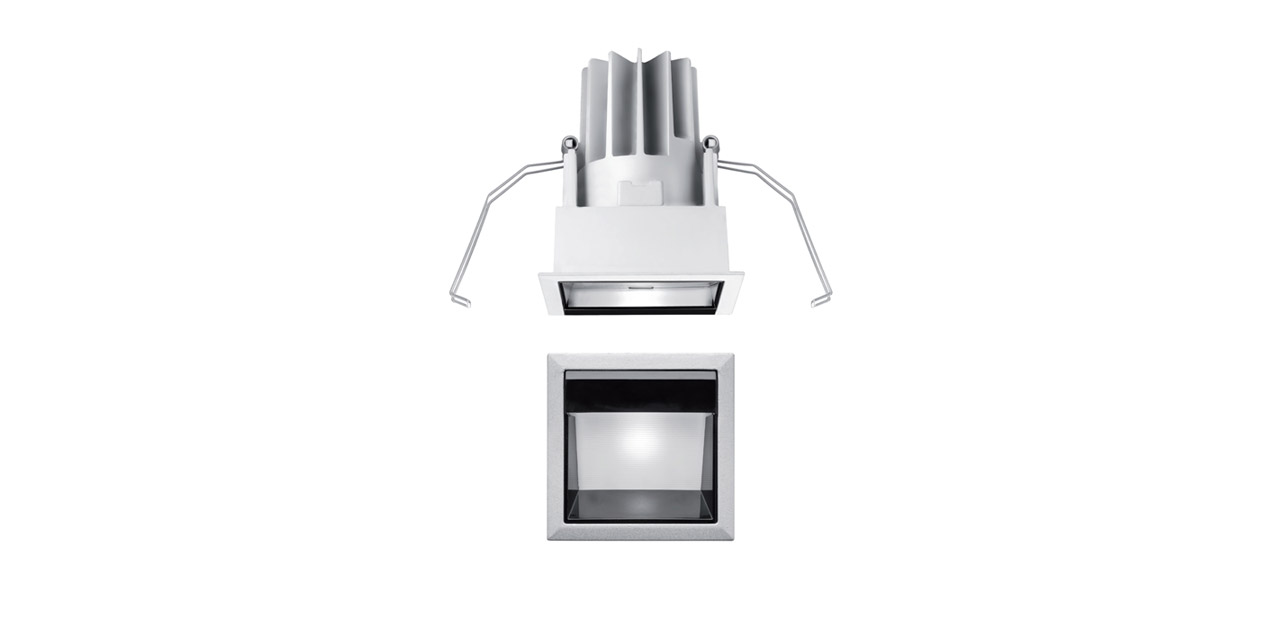

  • Flush mount installation on false ceilings of thickness 12.5 to 25 mm for Minimal versions (without perimeter fl ap) or 1 to 25 mm for Frame versions (with fl ap) using torsion springs.
  • Main body with radiant surface made of die-cast aluminium;

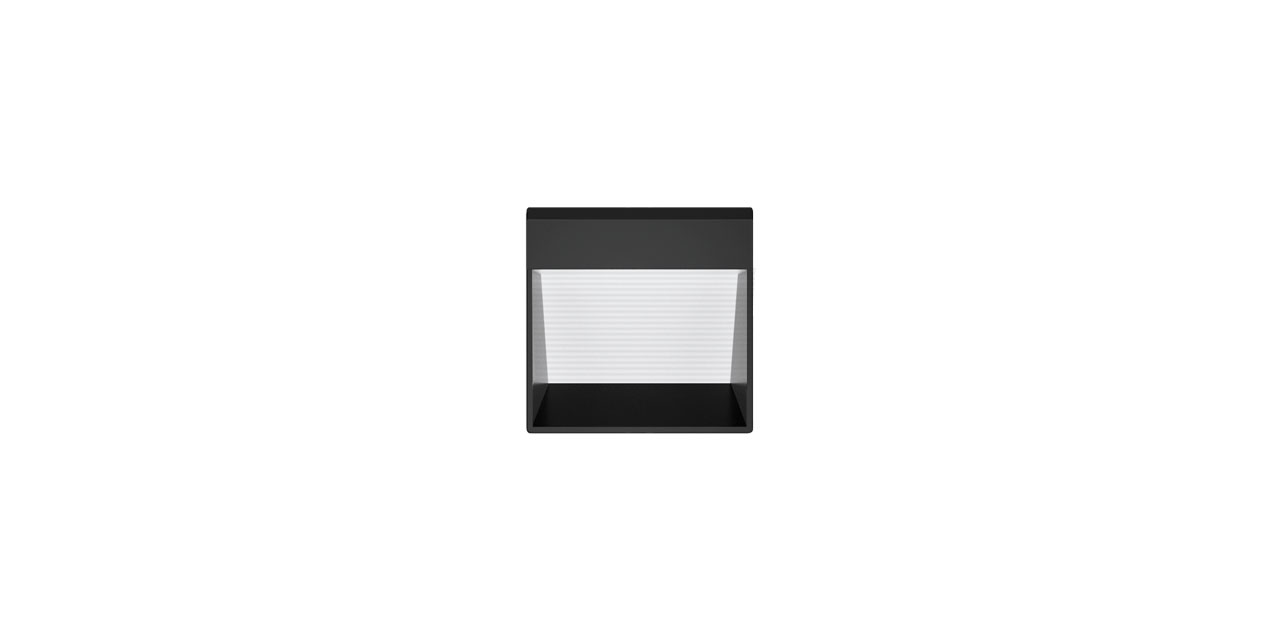

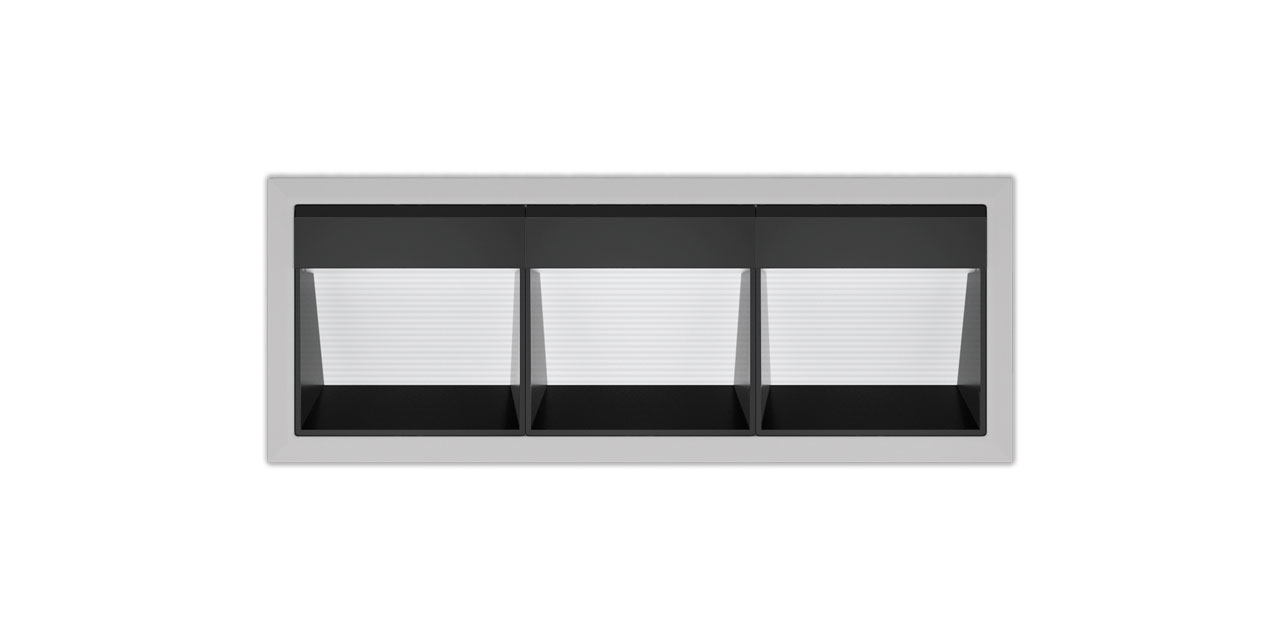

  • High-Definition optical system designed to achieve effective wall washer distribution on the wall.
  • Optics The innovative wall washer optic (patented) was designed to ensure uniform lighting of walls, from the highest to the lowest points, as well as avoiding shadow areas in zones near the ceiling.
  •  Installation without tools.
  • The minimum installation space dimensions are listed in the online instruction catalogue.
  •  IP20
  • IP44 on the visible body of the mount after installation.

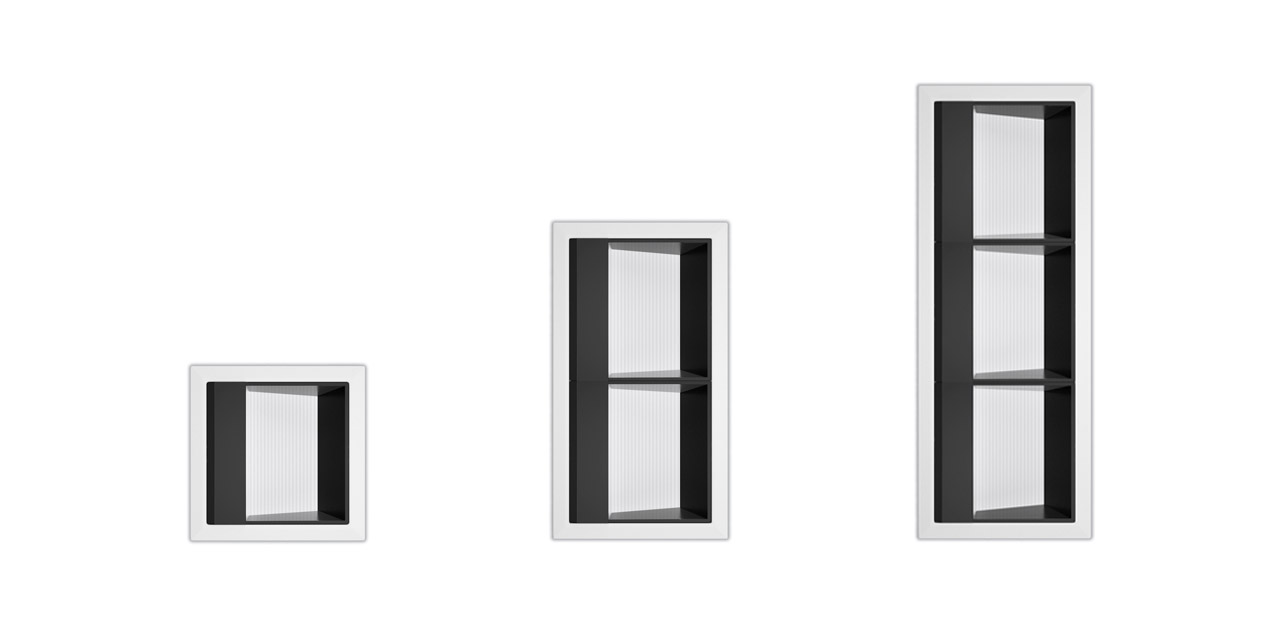

Colours available for Laser Blade L Wall Washer

  • 01 White
  • 43 Black/Black
  • 47 White / Black
  • 74 Grey / Black
  • 04 Black

Further colours on request

  • 74 Grey / Black

Do you want to know more?

Click to access our Contact Us page where you can send us an enquiry.

Make Enquiry

5 year product warranty included

Filter codes by:

Laser Blade L Wall Washer 18 code(s)
Frame version
lm system W system Optic K CRI Control Size (mm) Code
New
626.89
8.7
WW
4000
80
DALI-2
86x86x109
P959
New
655.39
10.6
WW
3000
90
DALI-2
86x86x109
P960
New
655.39
11.4
WW
2700
90
DALI
86x86x109
P961 *
Complete with power supply
2700K versions on request
* = On request. For further details please contact your iGuzzini representative, or send us your enquiry.
Minimal version
lm system W system Optic K CRI Control Size (mm) Code
New
598.4
8.6
WW
4000
80
DALI-2
69x69x107
QK19
New
626.89
10.5
WW
3000
90
DALI-2
69x69x107
QK20
New
626.89
11.3
WW
2700
90
DALI
69x69x107
QK21 *
Complete with power supply
2700K versions on request
* = On request. For further details please contact your iGuzzini representative, or send us your enquiry.

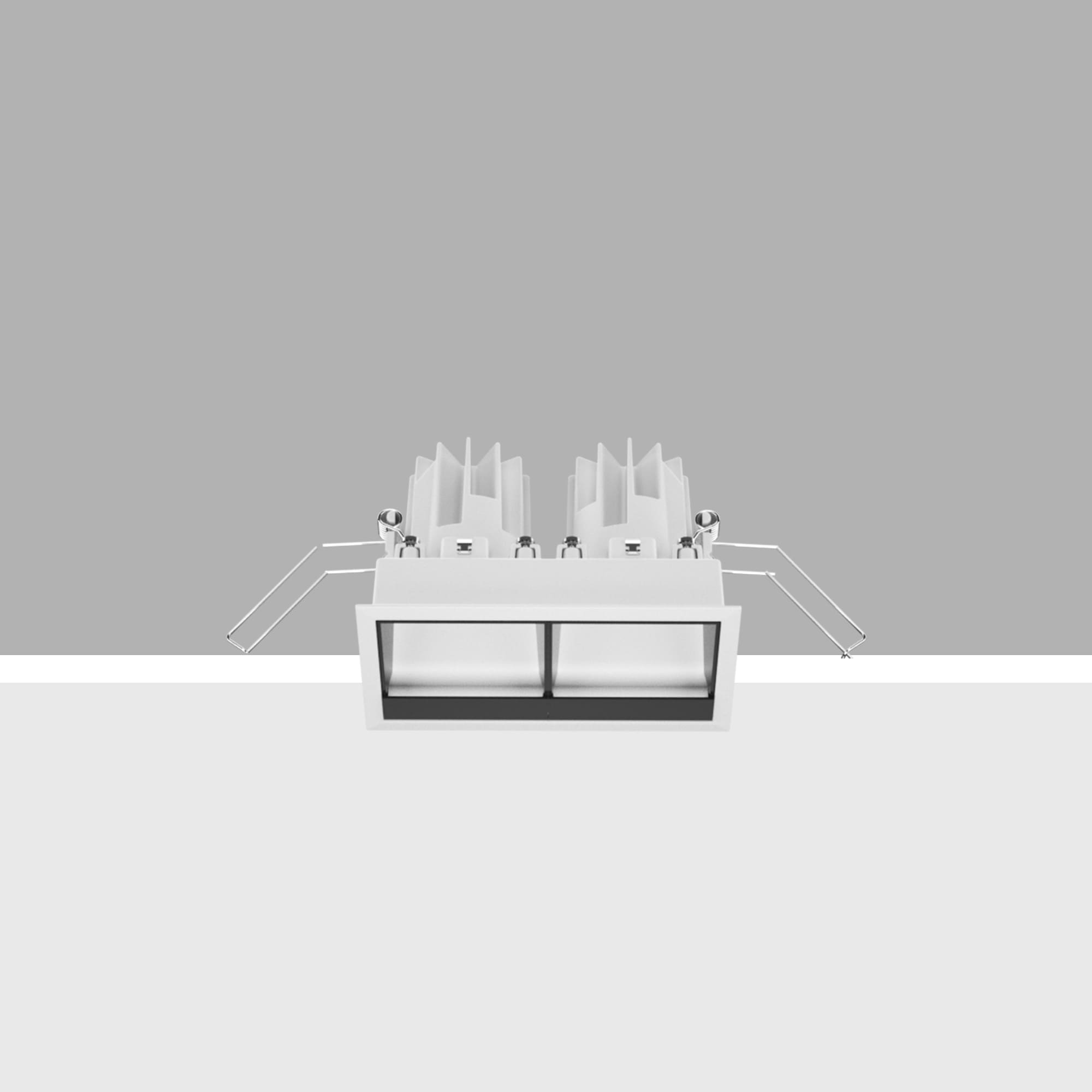

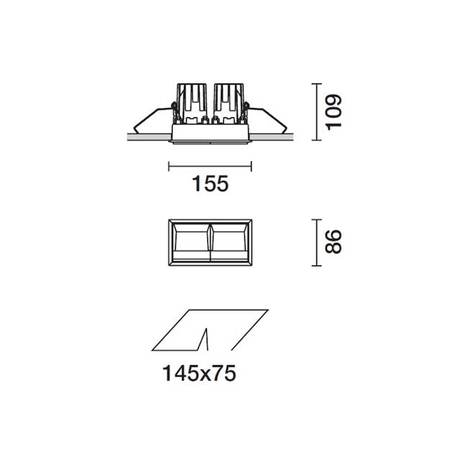

Frame version
lm system W system Optic K CRI Control Size (mm) Code
New
1377.74
20.3
WW
4000
80
DALI-2
155x86x109
P962
New
1165.78
20.3
WW
3000
90
DALI-2
155x86x109
P963
New
1112.79
20.3
WW
2700
90
DALI
155x86x109
P964 *
Complete with DALI power supply
2700K versions on request
* = On request. For further details please contact your iGuzzini representative, or send us your enquiry.
Minimal version
lm system W system Optic K CRI Control Size (mm) Code
New
1351.25
20.3
WW
4000
80
DALI-2
138x69x107
QK23
New
1165.78
20.3
WW
3000
90
DALI-2
138x69x107
QK24
New
1086.3
20.3
WW
2700
90
DALI
138x69x107
QK25 *
Complete with DALI power supply
2700K versions on request
* = On request. For further details please contact your iGuzzini representative, or send us your enquiry.

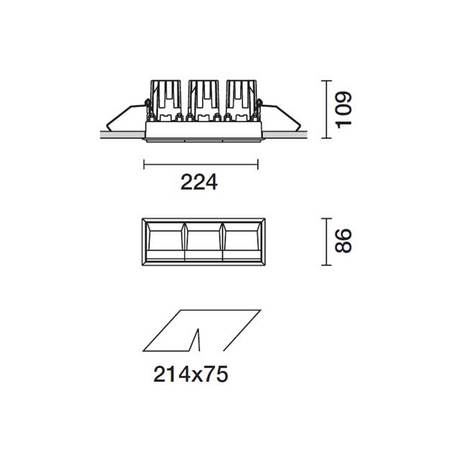

Frame version
lm system W system Optic K CRI Control Size (mm) Code
New
2066.61
28.4
WW
4000
80
DALI-2
224x86x109
P965
New
1748.67
28.4
WW
3000
90
DALI-2
224x86x109
P966
New
1642.69
28.4
WW
2700
90
DALI
224x86x109
P967 *
Complete with DALI power supply
2700K versions on request
* = On request. For further details please contact your iGuzzini representative, or send us your enquiry.

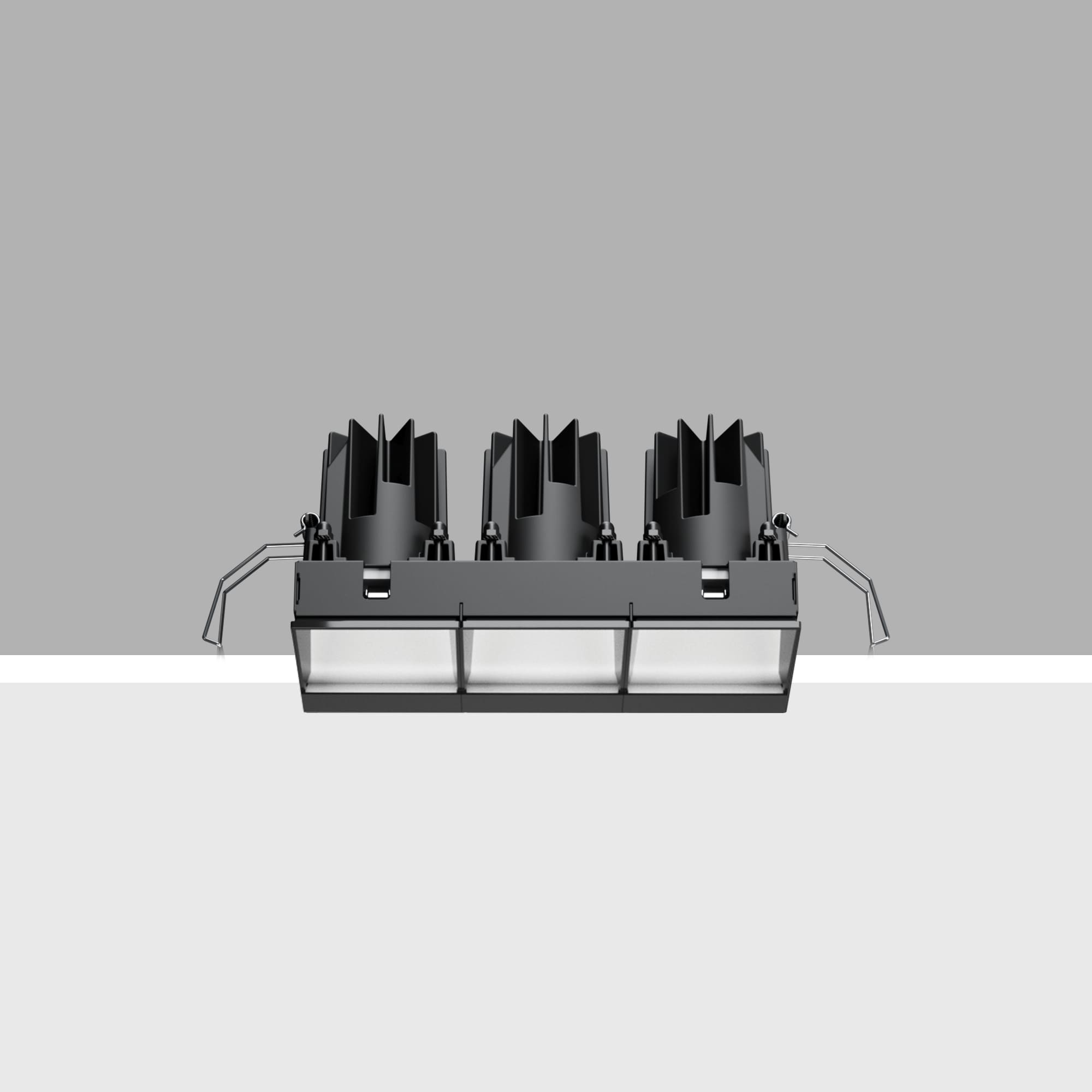

Minimal version
lm system W system Optic K CRI Control Size (mm) Code
New
2040.12
28.3
WW
4000
80
DALI-2
207x69x107
QK26
New
1748.67
28.3
WW
3000
90
DALI-2
207x69x107
QK27
New
1642.69
28.3
WW
2700
90
DALI
207x69x107
QK28 *
Complete with DALI power supply
2700K versions on request
* = On request. For further details please contact your iGuzzini representative, or send us your enquiry.
