Laser Blade L High Contrast

All Laser Blade L Overview Lighting Effects Application Imagery Product Details Codes & Downloads
All Laser Blade L

Lighting Effects

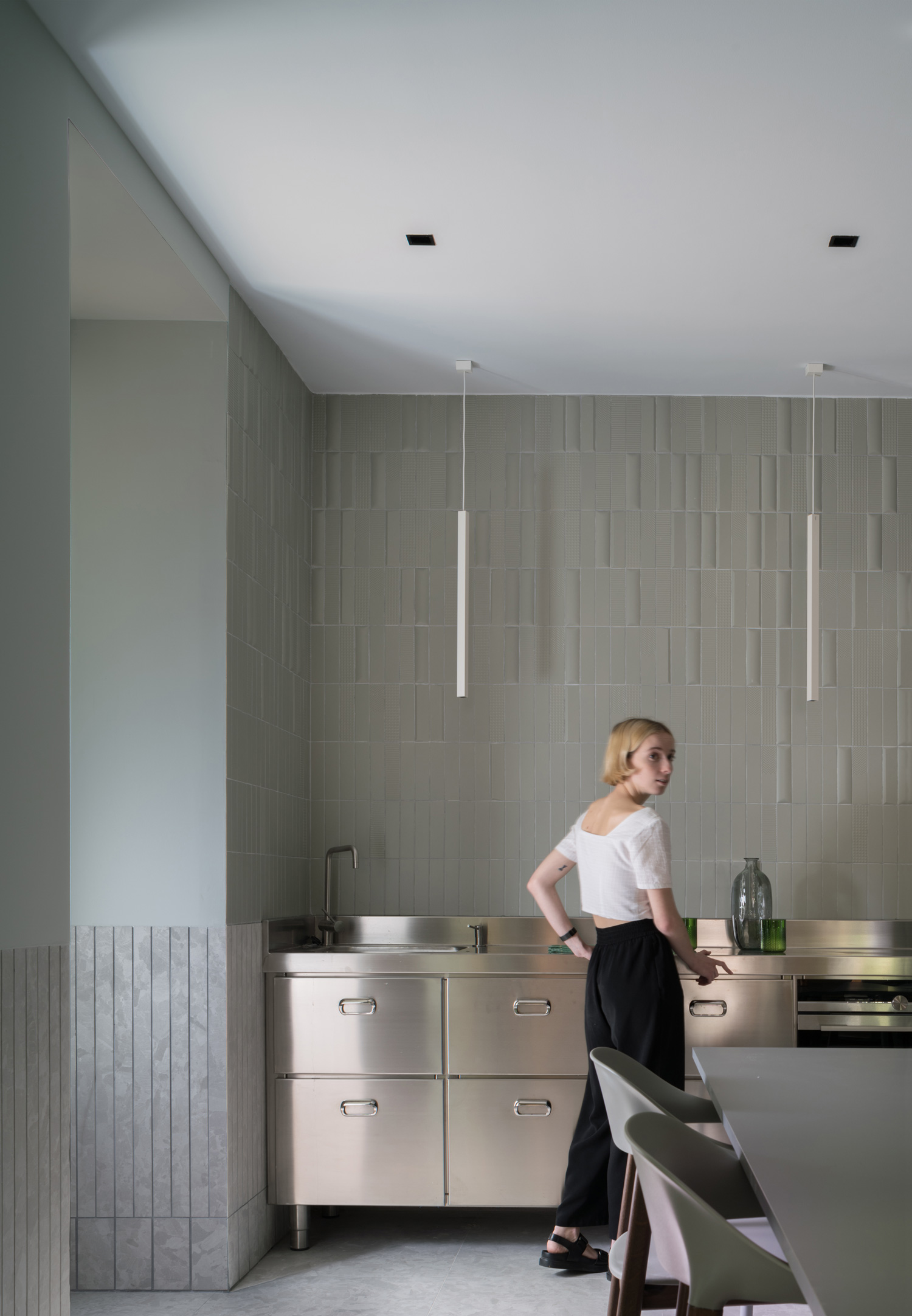

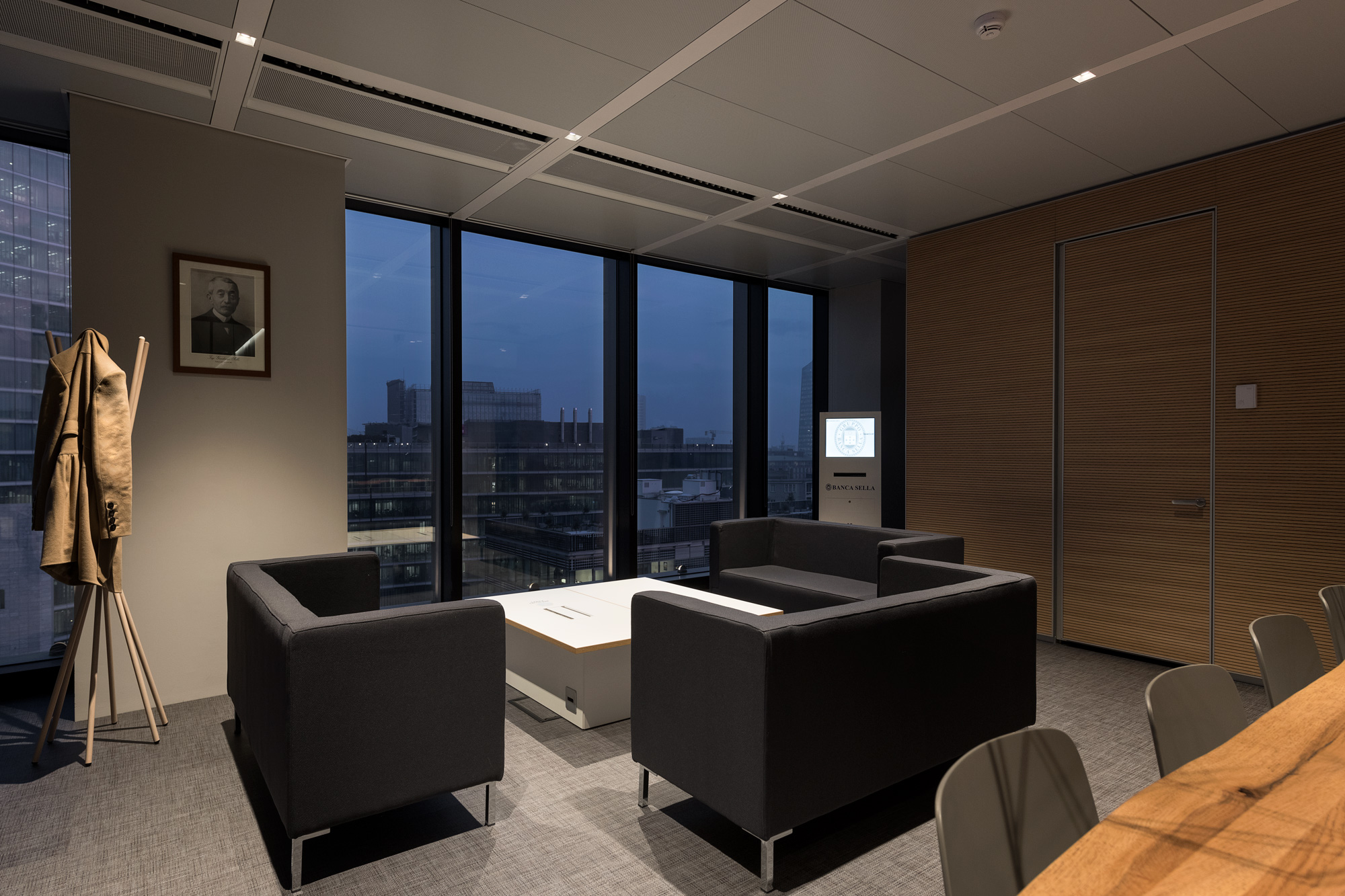

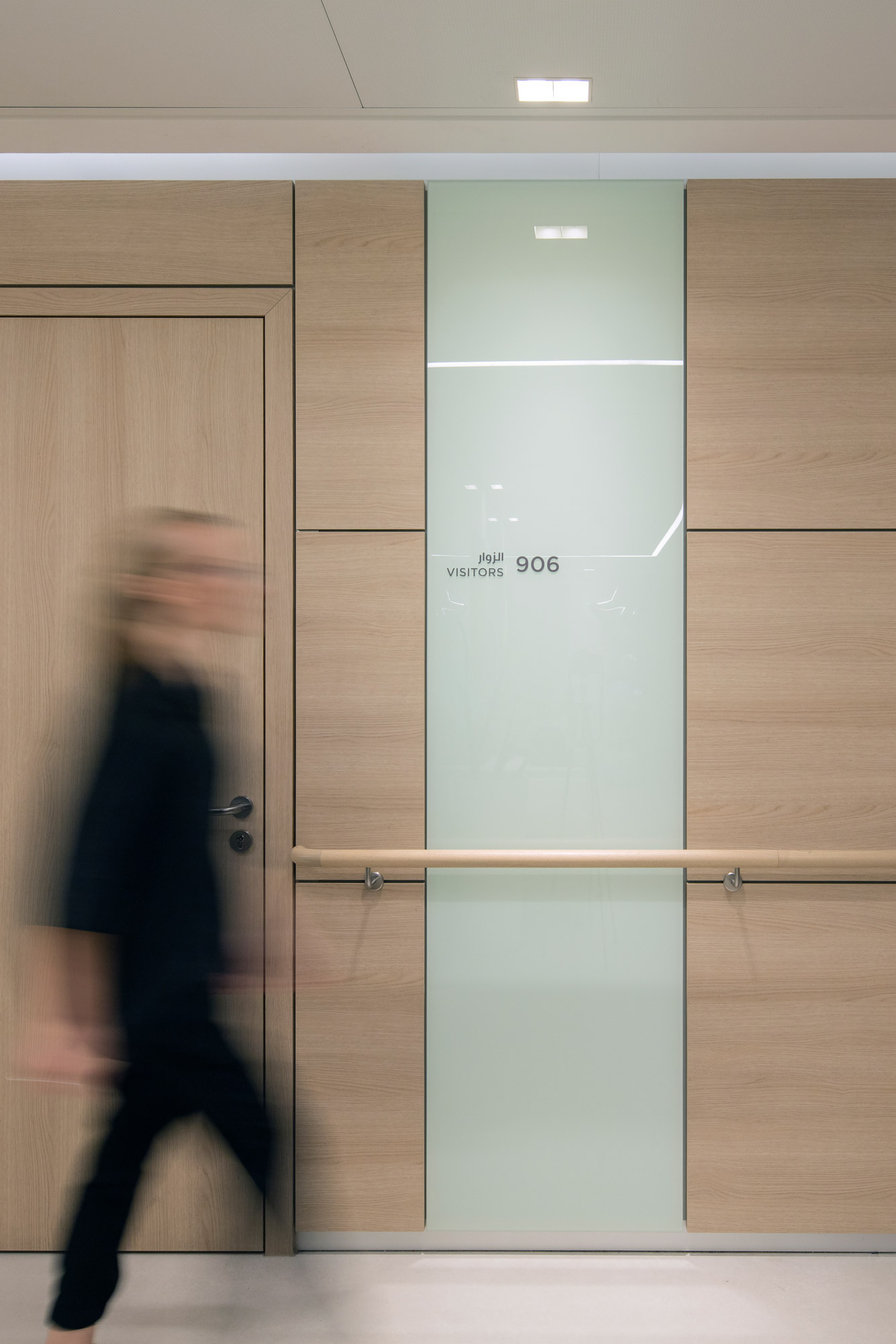

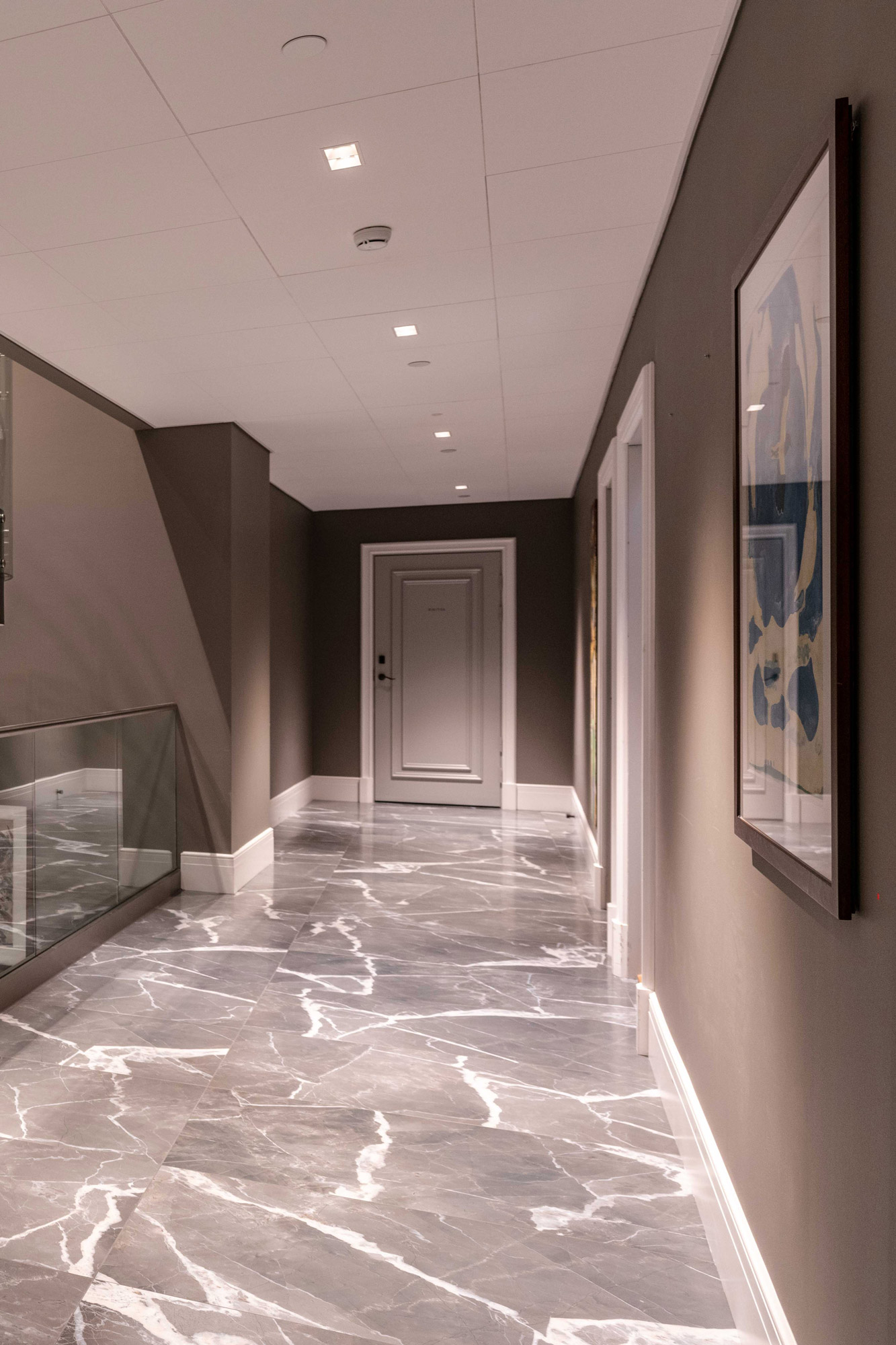

Application imagery for Laser Blade L High Contrast

Product Details

  • Recessed installation in false ceilings with 12.5 to 25 mm thickness for the Minimal version (without perimiter rim) or from 1 to 25 mm thickness for the Frame version (with rim).
  • Main body with radiant surface made of die-cast aluminium.
  • Metallised thermoplastic high definition optics, integrated in the innovative black anti-glare screen which creates light emission with controlled luminance UGR<10.
  • High visual comfort.
  • Installation without tools.

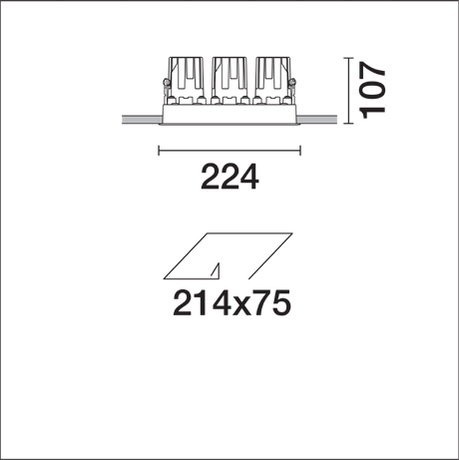

  • The minimum sizes of the installation compartment are displayed in the instruction sheet.
  • IP20.
  • IP44 for visible body of fitting after installation.

Colours available for Laser Blade L High Contrast

  • 01 White
  • 04 Black
  • 43 Black/Black
  • 47 White / Black
  • 74 Grey / Black

Further colours on request

  • 74 Grey / Black

Do you want to know more?

Click to access our Contact Us page where you can send us an enquiry.

Make Enquiry

5 year product warranty included

Filter codes by:

Laser Blade L High Contrast 28 code(s)
Frame version
lm system W system Optic K CRI Control Size (mm) Code
New
758.77
10.6
M 24°
3000
90
DALI-2
85x85x107
P950
New
850.31
10.6
F 32°
3000
90
DALI-2
85x85x107
N161
New
850.31
11.4
F 32°
2700
90
DALI
85x85x107
N163 *
New
835.78
8.7
WF 52°
4000
80
DALI-2
85x85x107
N159
New
835.78
8.7
WF 52°
3000
80
DALI-2
85x85x107
N160
New
873.77
10.6
WF 52°
3000
90
DALI-2
85x85x107
N162
New
873.77
11.4
WF 52°
2700
90
DALI
85x85x107
N164 *
Complete with power supply
2700K versions on request
* = On request. For further details please contact your iGuzzini representative, or send us your enquiry.
Minimal version
lm system W system Optic K CRI Control Size (mm) Code
New
816.16
10.6
M 24°
3000
90
DALI-2
69x69x107
QK02
New
816.16
11.4
M 24°
2700
90
DALI
69x69x107
QK05 *
New
907.24
10.6
F 30°
3000
90
DALI-2
69x69x107
QK03
New
907.24
11.4
F 30°
2700
90
DALI
69x69x107
QK06 *
New
901.23
8.7
WF 54°
4000
80
DALI-2
69x69x107
QK01
New
942.2
10.6
WF 54°
3000
90
DALI-2
69x69x107
QK04
New
942.2
11.4
WF 54°
2700
90
DALI
69x69x107
QK07 *
Complete with power supply
2700K versions on request
* = On request. For further details please contact your iGuzzini representative, or send us your enquiry.
Frame version
lm system W system Optic K CRI Control Size (mm) Code
New
1975.48
20.4
WF 52°
4000
80
DALI-2
155x85x107
N165
New
1975.48
20.4
WF 52°
3000
80
DALI-2
155x85x107
N166
New
1709.55
20.4
WF 52°
3000
90
DALI-2
155x85x107
N167
New
1595.58
20.4
WF 52°
2700
90
DALI
155x85x107
N168 *
Complete with DALI power supply
2700K versions on request
* = On request. For further details please contact your iGuzzini representative, or send us your enquiry.
Minimal version
lm system W system Optic K CRI Control Size (mm) Code
New
2130.18
20.4
WF 54°
4000
80
DALI-2
138x69x107
QK10
New
1843.43
20.4
WF 54°
3000
90
DALI-2
138x69x107
QK11
New
1720.53
20.4
WF 54°
2700
90
DALI
138x69x107
QK12 *
Complete with DALI power supply
2700K versions on request
* = On request. For further details please contact your iGuzzini representative, or send us your enquiry.
Frame version
lm system W system Optic K CRI Control Size (mm) Code
New
2963.22
28.4
WF 52°
4000
80
DALI-2
224x85x107
N169
New
2963.22
28.4
WF 52°
3000
80
DALI-2
224x85x107
N170
New
2545.33
28.4
WF 52°
3000
90
DALI-2
224x85x107
N171
New
2393.37
28.4
WF 52°
2700
90
DALI
224x85x107
N172 *
Complete with DALI power supply
2700K versions on request
* = On request. For further details please contact your iGuzzini representative, or send us your enquiry.
Minimal version
lm system W system Optic K CRI Control Size (mm) Code
New
3195.27
28.4
WF 54°
4000
80
DALI-2
207x69x107
QK13
New
2744.66
28.4
WF 54°
3000
90
DALI-2
207x69x107
QK14
New
2580.8
28.4
WF 54°
2700
90
DALI
207x69x107
QK15 *
Complete with DALI power supply
2700K versions on request
* = On request. For further details please contact your iGuzzini representative, or send us your enquiry.
