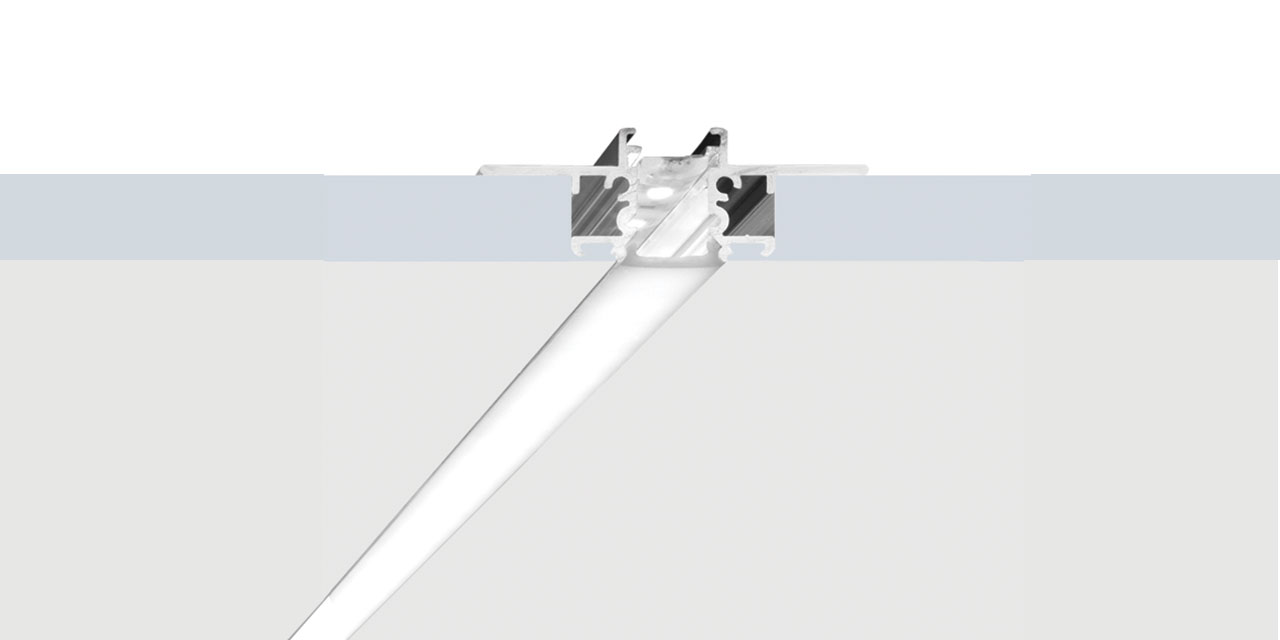

The Underscore15 Recessed Light

All Underscore15 Overview Lighting Effects Product Details Codes & Downloads

Lighting Effects

Product Details

• Linear illumination with monochrome LEDs.
• Can be sectioned at pre-set intervals depending on the version.
• Non-sectioned strips (full length) have IP65 protection class; circuit ends are ﬁtted with IP20 end connectors, therefore the installer is responsible for completing connector insulation operations.
• The values specifying colour temperature of the white LEDs are indicative and subject to variation.

Colours available for Underscore15 Recessed

01 White
12 Aluminium
00 Indeterminate
38 Opal
21 Clear and satin

Do you want to know more?

Click to access our Contact Us page where you can send us an enquiry.

Make Enquiry

5 year product warranty included

Discover more

Underscore15 Recessed 50 code(s)

Ledstrip Tube - 24V - 60 LED / m

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	-	-	GL	4000	90		5000x11x4	3522
New	-	-	GL	3500	90		5000x11x4	3521
New	-	-	GL	3000	90		5000x11x4	3520
New	-	-	GL	2700	90		5000x11x4	3519
New	-	-	GL	2400	90		5000x11x4	3518

Can be cut every 100 mm

Ledstrip Tube - 24V - 266 LED / m - Seamless Effect

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	-	-	GL	4000	90		5000x11x4	3542
New	-	-	GL	3500	90		5000x11x4	3541
New	-	-	GL	3000	90		5000x11x4	3540
New	-	-	GL	2700	90		5000x11x4	3539
New	-	-	GL	2400	90		5000x11x4	3538

Can be cut every 26,6 mm

Ledstrip tube hi-power - 24V - 120 LED/m

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	-	-	GL	4000	90		5000x11x4	3527
New	-	-	GL	3500	90		5000x11x4	3526
New	-	-	GL	3000	90		5000x11x4	3525
New	-	-	GL	2700	90		5000x11x4	3524
New	-	-	GL	2400	90		5000x11x4	3523
New	-	-	GL	4000	90		5000x11x4	3532
New	-	-	GL	3500	90		5000x11x4	3531
New	-	-	GL	3000	90		5000x11x4	3530
New	-	-	GL	2700	90		5000x11x4	3529
New	-	-	GL	2400	90		5000x11x4	3528

Can be cut every 50 mm

Ledstrip tube hi-power - 24V - 160 LED/m

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	-	-	GL	4000	90		5000x11x4	3537
New	-	-	GL	3500	90		5000x11x4	3536
New	-	-	GL	3000	90		5000x11x4	3535
New	-	-	GL	2700	90		5000x11x4	3534
New	-	-	GL	2400	90		5000x11x4	3533

Can be cut every 50 mm

Ledstrip tube hi-power - 24V - 266 LED/m - Seamless Effect

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	-	-	GL	4000	90		5000x11x4	3547
New	-	-	GL	3500	90		5000x11x4	3546
New	-	-	GL	3000	90		5000x11x4	3545
New	-	-	GL	2700	90		5000x11x4	3544
New	-	-	GL	2400	90		5000x11x4	3543
New	-	-	GL	4000	90		5000x11x4	3552
New	-	-	GL	3500	90		5000x11x4	3551
New	-	-	GL	3000	90		5000x11x4	3550
New	-	-	GL	2700	90		5000x11x4	3549
New	-	-	GL	2400	90		5000x11x4	3548
New	-	-	GL	4000	90		5000x11x4	3557
New	-	-	GL	3500	90		5000x11x4	3556
New	-	-	GL	3000	90		5000x11x4	3555
New	-	-	GL	2700	90		5000x11x4	3554
New	-	-	GL	2400	90		5000x11x4	3553

Can be cut every 26,6 mm

Frame recessed low linear profile

	Short description	Control	Size (mm)	Code
New	Low recessed linear profile Frame for Ledstrip Top - L=1000		1000x24x14	MXK6
New	Low recessed linear profile Frame for Ledstrip Top - L=2000		2000x24x14	MXK7

Frame recessed high linear profile

	Short description	Control	Size (mm)	Code
New	High recessed linear Frame profile for Ledstrip Top - L=1000		1000x24x22	MXL0
New	High recessed linear Frame profile for Ledstrip Top - L=2000		2000x24x22	MXL1
