LED luminaire for floor/ground/wall and ceiling recessed installation (except for ø 80 mm).
Complete immersion for limited periods, not suitable for use in swimming pools or fountains.
Ground installation without outer casing.
Consists of body and outer casing.
Body and frame made of AISI 304 stainless steel, without visible screws; tempered safety glass; A2 stainless steel cable gland, complete with outgoing power supply cable of 2x1 mm² type. The cable is provided with an IP68 anti-transpiration device.
Outer casing made of plastic propylene material to be ordered separately.
Optics with plastic lenses or reflectors.
Low voltage power supply in constant current mode (350/500/700 mA according to the type of recessed luminaire) to be oredered separately.
Temperatue of contact < 40°C.
Static load resistance 2000 kg.
Luminaire reduced dimensions (< 100 mm).

Colours available for Light Up Orbit

13 Steel

Do you want to know more?

Click to access our Contact Us page where you can send us an enquiry.

Make Enquiry

5 year product warranty included

Discover more

Light Up Orbit 51 code(s)

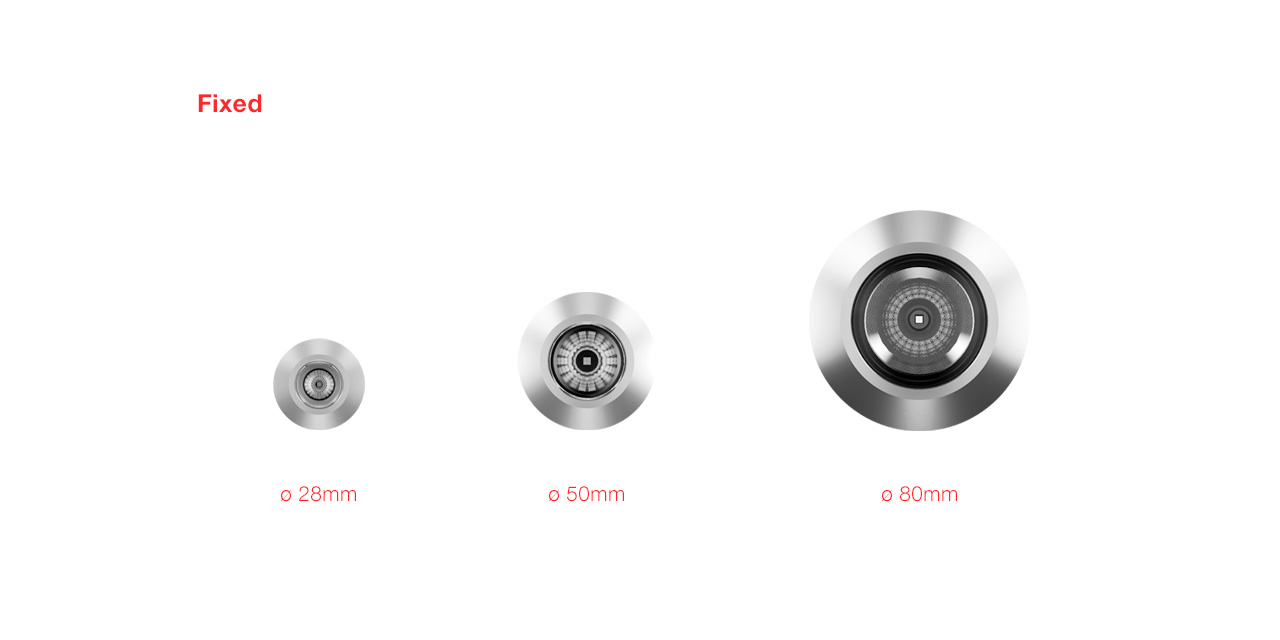

ø28

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	57.2	1	S 14°	4000	80		ø28x68	E070
New	52.8	1	S 14°	3000	80		ø28x68	E068
New	52.8	1	S 14°	2700	80		ø28x68	E066
New	61.1	1	M 22°	4000	80		ø28x68	E071
New	56.4	1	M 22°	3000	80		ø28x68	E069
New	56.4	1	M 22°	2700	80		ø28x68	E067

Power supply 350 mA to be ordered separately.

ø28

Diffusing

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	7.8	1	D	4000	80		ø28x68	E074
New	7.2	1	D	3000	80		ø28x68	E073
New	7.2	1	D	2700	80		ø28x68	E072

Power supply 350 mA to be ordered separately.

ø50

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	85 122 159	1 1.5 2	S 8° S 8° S 8°	4000 4000 4000	80 80 80		ø50x72 ø50x72 ø50x72	E081
New	79 110 146	1 1.5 2	S 8° S 8° S 8°	3000 3000 3000	80 80 80		ø50x72 ø50x72 ø50x72	E078
New	79 110 146	1 1.5 2	S 8° S 8° S 8°	2700 2700 2700	80 80 80		ø50x72 ø50x72 ø50x72	E075
New	367.2	4	M 24°	4000	80		ø50x72	E082
New	338.4	4	M 24°	3000	80		ø50x72	E079
New	338.4	4	M 24°	2700	80		ø50x72	E076
New	387.6	4	WF 42°	4000	80		ø50x72	E083
New	357.2	4	WF 42°	3000	80		ø50x72	E080
New	357.2	4	WF 42°	2700	80		ø50x72	E077

Power supply 350 mA to be ordered separately.
E075 - E078 - E081: Power supply 350/500/700 mA to be ordered separately
IK07

ø50

Diffusing

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	18 25 33	1 1.5 2	D D D	4000 4000 4000	80 80 80		ø50x72 ø50x72 ø50x72	E089
New	17 23 30	1 1.5 2	D D D	3000 3000 3000	80 80 80		ø50x72 ø50x72 ø50x72	E088
New	17 23 30	1 1.5 2	D D D	2700 2700 2700	80 80 80		ø50x72 ø50x72 ø50x72	E087

Power supply 350/500/700 mA to be ordered separately.
IK07

ø50

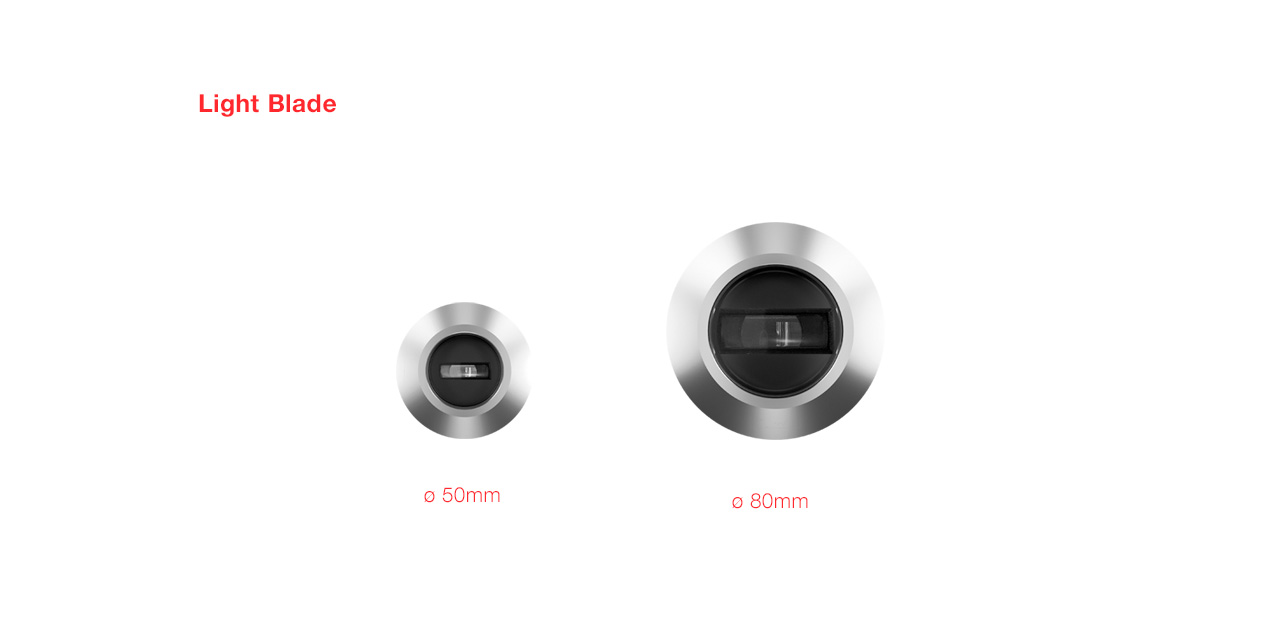

Light blade

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	9.8	1	L	4000	80		ø50x72	E092
New	9.1	1	L	3000	80		ø50x72	E091
New	9.1	1	L	2700	80		ø50x72	E090

Power supply 350 mA to be ordered separately.
IK07

ø50

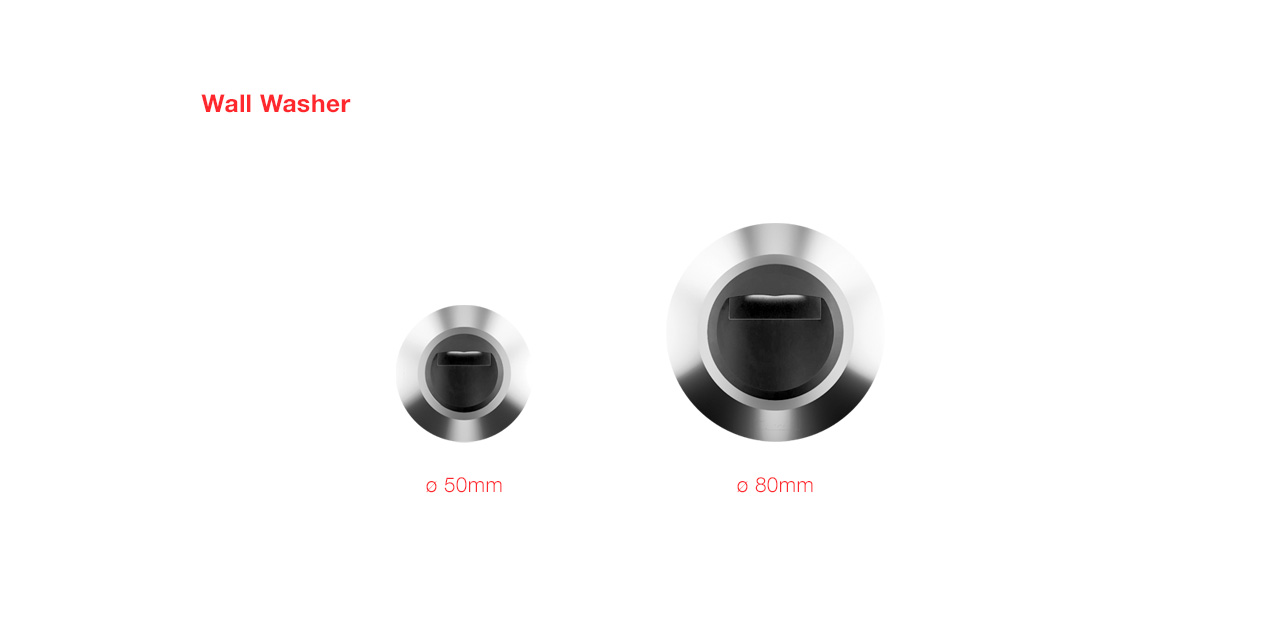

Wall Washer

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	35	1	WW	4000	80		ø50x72	E086
New	32.5	1	WW	3000	80		ø50x72	E085
New	32.5	1	WW	2700	80		ø50x72	E084

Power supply 350 mA to be ordered separately.
IK07

Wall Washer Super Comfort

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	12.6	1	WW	4000	80		ø50x72	EI83
New	11.7	1	WW	3000	80		ø50x72	EI84
New	11.7	1	WW	2700	80		ø50x72	EI85

Power supply 350 mA to be ordered separately.
IK07

ø80

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	434 587	4 5.5	S 8.8° S 8.8°	4000 4000	80 80		ø80x83 ø80x83	E099
New	408 544	4 5.5	S 8.8° S 8.8°	3000 3000	80 80		ø80x83 ø80x83	E096
New	408 544	4 5.5	S 8.8° S 8.8°	2700 2700	80 80		ø80x83 ø80x83	E093
New	403 529	4 5.5	F 30° F 30°	4000 4000	80 80		ø80x83 ø80x83	E100
New	371 498	4 5.5	F 30° F 30°	3000 3000	80 80		ø80x83 ø80x83	E097
New	371 498	4 5.5	F 30° F 30°	2700 2700	80 80		ø80x83 ø80x83	E094
New	388 509	4 5.5	WF 50° WF 50°	4000 4000	80 80		ø80x83 ø80x83	E101
New	357 479	4 5.5	WF 50° WF 50°	3000 3000	80 80		ø80x83 ø80x83	E098
New	357 479	4 5.5	WF 50° WF 50°	2700 2700	80 80		ø80x83 ø80x83	E095

Power supply 350/500mA to be ordered separately.

ø80

Diffusing

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	71 92	4 5.5	D D	4000 4000	80 80		ø80x83 ø80x83	E107
New	66 87	4 5.5	D D	3000 3000	80 80		ø80x83 ø80x83	E106
New	66 87	4 5.5	D D	2700 2700	80 80		ø80x83 ø80x83	E105

Power supply 350/500mA to be ordered separately.

ø80

Light blade

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	34 46	3 4.5	L L	4000 4000	80 80		ø80x83 ø80x83	E110
New	31 42	3 4.5	L L	3000 3000	80 80		ø80x83 ø80x83	E109
New	31 42	3 4.5	L L	2700 2700	80 80		ø80x83 ø80x83	E108

Power supply 350/500mA to be ordered separately.

ø80

Wall Washer

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	168 227	3 4.2	WW WW	4000 4000	80 80		ø80x83 ø80x83	E104
New	155 210	3 4.2	WW WW	3000 3000	80 80		ø80x83 ø80x83	E103
New	155 210	3 4.2	WW WW	2700 2700	80 80		ø80x83 ø80x83	E102

Power supply 350/500mA to be ordered separately.

ø80

Wall Washer Super Comfort

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	42 57	3 4.2	WW WW	4000 4000	80 80		ø80x83 ø80x83	EI17
New	39 52	3 4.2	WW WW	3000 3000	80 80		ø80x83 ø80x83	EI18
New	39 52	3 4.2	WW WW	2700 2700	80 80		ø80x83 ø80x83	EI19
