Recessed installation in false ceilings with 1 to 20 mm thickness.
Die-cast aluminium body, thermoplastic material.
ø 75 mm version available with fixed, adjustable or wall washer optic and as a single or double optical assembly unit.
ø 125 mm version available with adjustable optic, and only as one optical assembly.

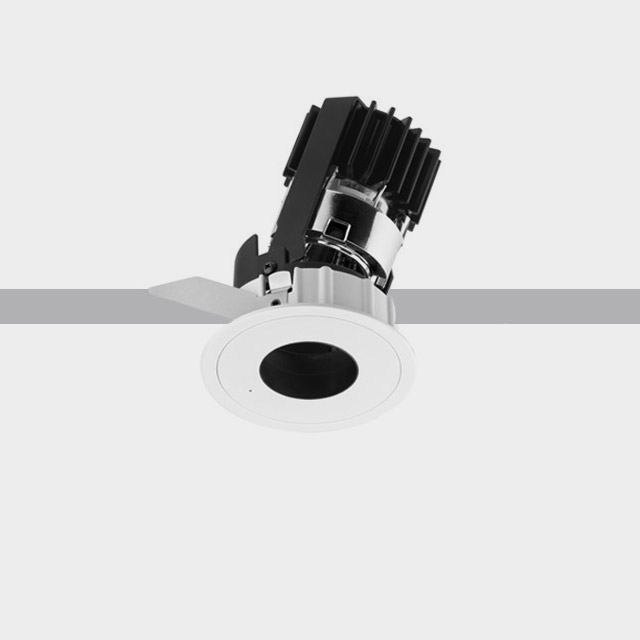

Asjustable versions can rotate by 355° around the vertical axis and by 30° internally with respect to the horizontal plane.
Passive heat dissipation.
The minimum sizes of the installation compartment are displayed in the instruction sheet.
IP20.
IP40 for visible body of fitting after intallation.

Colours available for Laser Pinhole adjustable round

01 White

Do you want to know more?

Click to access our Contact Us page where you can send us an enquiry.

5 year product warranty included

Laser Pinhole adjustable round 35 code(s)

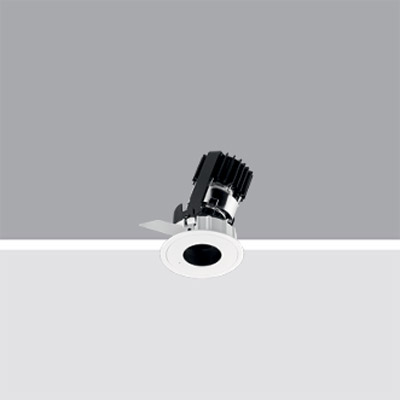

ø 75 - Adjustable

ø 75 - Adjustable

ø 75 - Adjustable

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	330	6.1	S 10°	3000	90		ø82x100	P713
New	330	6.1	S 10°	2700	90		ø82x100	P712
New	444	10	M 20°	3000	90		ø82x100	P417
New	425.5	10	M 20°	2700	90		ø82x100	P415
New	466.44	10	F 26°	3000	90		ø82x100	P418
New	447.01	10	F 26°	2700	90		ø82x100	P416

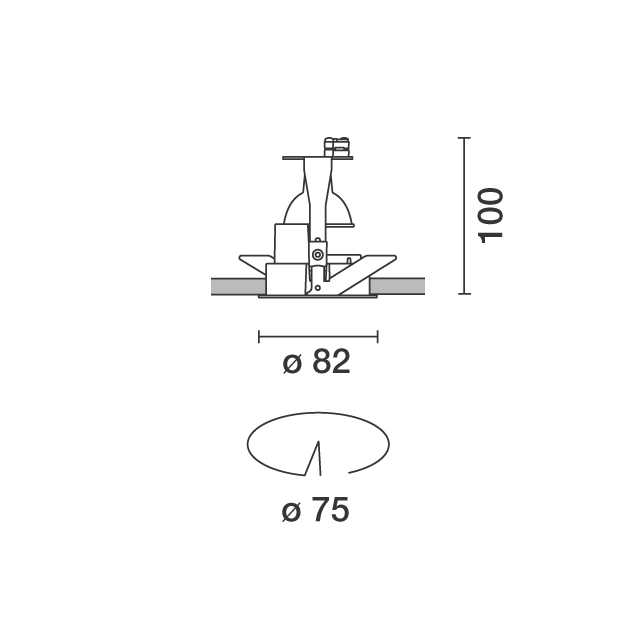

New	- -	- -					ø82x109 ø82x109	M248

Power supply to be ordered separately
P712, P713: Opti Beam Lens

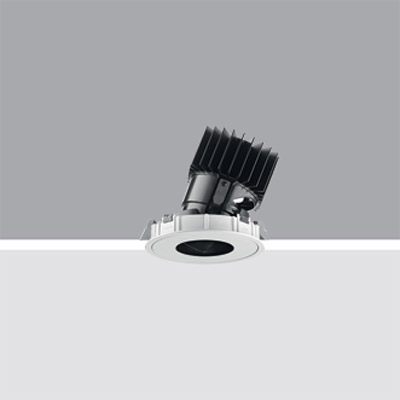

ø 125 - Adjustable

ø 125 - Adjustable

ø 125 - Adjustable

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	801.6	19.8	S 8°	3000	90		ø136x138	P445
New	801.6	19.8	S 8°	3000	90	DALI-2	ø136x138	P448
New	763.2	19.8	S 8°	2700	90		ø136x124	P439
New	758.4	19.8	S 8°	2700	90	DALI-2	ø136x138	P442
New	960	21	S 12°	3000	90		ø136x138	P446
New	960	21.3	S 12°	3000	90	DALI-2	ø136x138	P449
New	960	22.2	S 12°	2700	90		ø136x124	P440
New	960	21.8	S 12°	2700	90	DALI-2	ø136x138	P443
New	1320	29.6	M 20°	3000	90		ø136x124	P458
New	1320	29	M 20°	3000	90	DALI-2	ø136x124	P461
New	1320	30.8	M 20°	2700	90		ø136x124	P452
New	1320	31	M 20°	2700	90	DALI-2	ø136x124	P455
New	1077.4	21	F 30°	3000	90		ø136x104	P447
New	1077.4	21.3	F 30°	3000	90	DALI-2	ø136x104	P450
New	1077.4	22.2	F 30°	2700	90		ø136x104	P441
New	1077.4	21.8	F 30°	2700	90	DALI-2	ø136x104	P444
New	1640	36.4	F 34°	3000	90		ø136x124	P467
New	1640	36.6	F 34°	3000	90	DALI-2	ø136x124	P469
New	1640	38.3	F 34°	2700	90		ø136x124	P463
New	1640	38.5	F 34°	2700	90	DALI-2	ø136x124	P465
New	1557.3	29.6	F 38°	3000	90		ø136x124	P459
New	1557.3	29	F 38°	3000	90	DALI-2	ø136x124	P462
New	1557.3	30.8	F 38°	2700	90		ø136x124	P453
New	1557.3	31	F 38°	2700	90	DALI-2	ø136x124	P456
New	1840	36.4	WF 44°	3000	90		ø136x124	P468
New	1840	36.6	WF 44°	3000	90	DALI-2	ø136x124	P470
New	1840	38.3	WF 44°	2700	90		ø136x124	P464
New	1840	38.5	WF 44°	2700	90	DALI-2	ø136x124	P466

Class of Insulation II
Complete with power supply
P439, P440, P445, P446: Opti Beam Lens
P441, P444, P447, P450: h=104 mm
