The Citygrid system offers all the components for managing urban lighting, from a single fixture to the entire installation, both on-site and remotely. Programming is done through an intuitive app, and it is possible to configure the system at multiple levels, from plug-and-play to connected.

Interconnected system - Ideal for urban and residential contexts. Plug and play or customizable via app.

The Zhaga motion sensor adjusts the light output to the defined level, and the controller communicates the information to adjacent poles.
Plug & Play: no commissioning required
Customizable: energy saving / Maximum energy saving

Cloud-connected system - Remote management and analysis

By integrating a gateway into the system, all data is sent to the Cloud for remote processing of statistics and system management, as well as for sending alerts in case of malfunctions.
Customizable:
Maximum energy saving / Maintenance saving / Fault reporting / Remote management / Energy monitoring

CMS integration - Integrated into smart cities

The lighting system can also be connected to the city management system via API (Application Programming Interface), allowing all smart city systems (e.g., irrigation, traffic, pollution, etc.) to be managed with a single city control system.
Customizable: Maximum energy saving / Maintenance saving / Fault reporting / Remote management / Energy monitoring / API for integration with CMS

Citygrid App

The use of the Citygrid App in combination with the Dongle allows the user to install, configure, maintain, and add information about lighting fixtures on-site. It facilitates the configuration of light intensity, motion sensor actions, and much more. All data entered or retrieved through the App is saved in the Citygrid Cloud database for easy asset management.

Icona

Download the Citygrid app
Download documentation

<div style="font-size: 22px;">Citygrid App</div>

Citygrid Dashboard

Key data related to the performance of street fixtures is accessible through the Cloud solution. The intuitive interface of the web platform allows for easy light management. The dashboard facilitates monitoring, configuration, and asset management.

Download documentation

Types of component installation

Citygrid On Pole

Citygrid Zhaga Controller

Citygrid DALI Zhaga

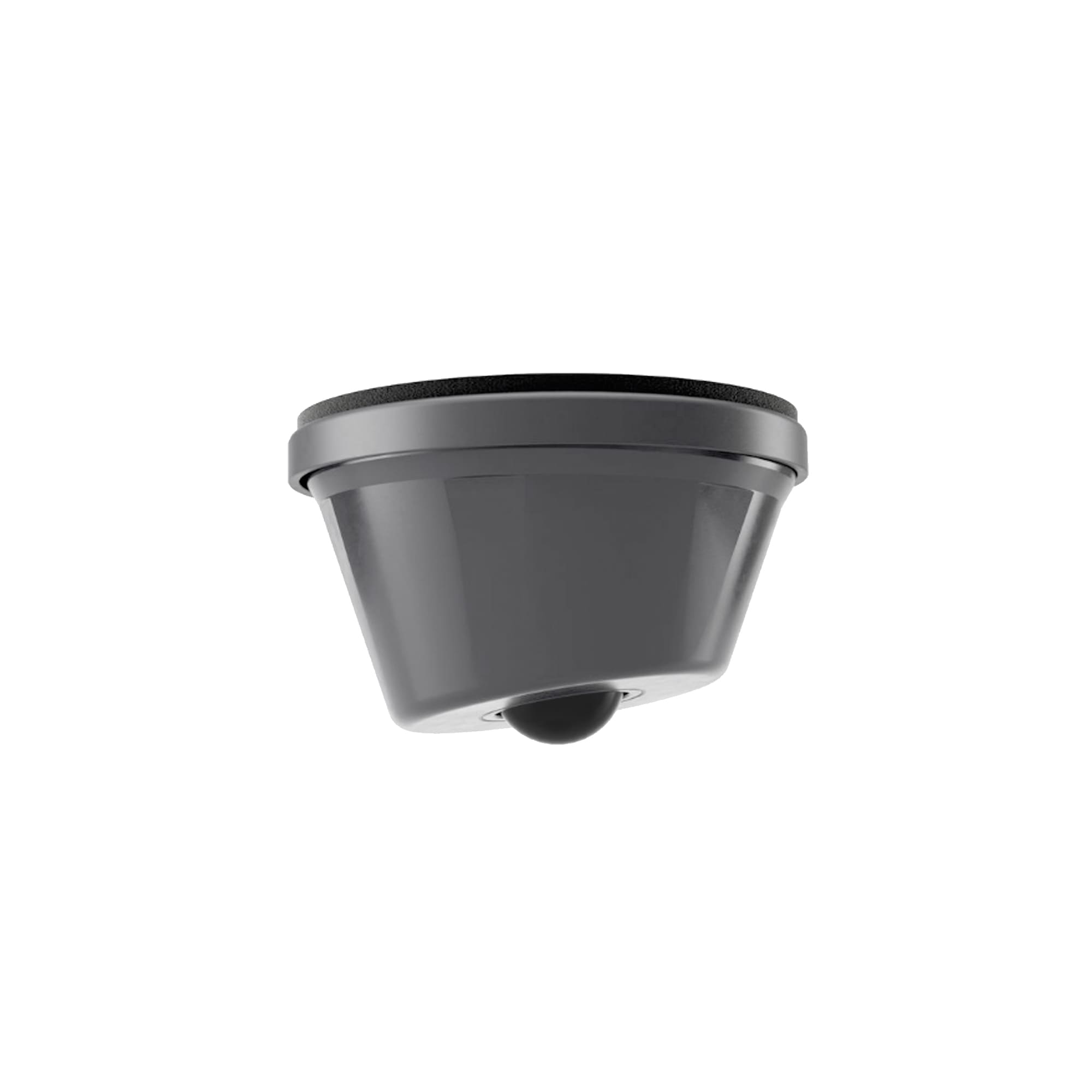

Citygrid Zhaga Controller with motion sensor

Citygrid Zhaga Controller + DALI Zhaga

iGuzzini / Citygrid solutions

Twilight Copenhagen

Street

Billboard

Alley

Lingotto with box

Product Details

Citygrid is a wireless control system that increases energy saving in street, park, cycle path and car park type applications.
The mesh communication system uses 6LoWPAN protocol and communications are AES-128 encrypted to ensure a high level of security.
The system has solutions for products with a Zhaga attachment (controllers/sensors) and DALI products (controllers with pole-installed sensors).
The system is scalable as it can function in the following ways:
- autonomous, Plug&Play (standalone) with no need for programming and functioning with default parameters.
- interconnected between luminaires, Plug&Play with no need for programming and default parameters, that can be edited using the app + Dongle.
- interconnected between luminaires and connected to a cloud with a gateway and initial commissioning via app + Dongle.
If the cloud-connected system is used, monitoring and remote management can be exploited using the Dashboard Citygrid with analytic and reporting functions and email alerts in case of malfunctioning.
It can also be integrated with third-party systems thanks to available APIs (e.g. GIS system and software interfaces for Smart City).
The firmware is updated in simple mode (via over-the-air firmware updates).
Available, at the moment, for the European market only.
