BeTwo pendant UGR<19

All BeTwo Overview Lighting Effects Application Imagery Product Details Codes & Downloads

Suspension kit

To install the Betwo product in the suspension variant, it is necessary to use one of the dedicated mounting kits listed in the "Codes & Downloads" section.

It is necessary to order the suspension cable separately in the

Lighting Effects

Application imagery for BeTwo pendant UGR<19

Product Details

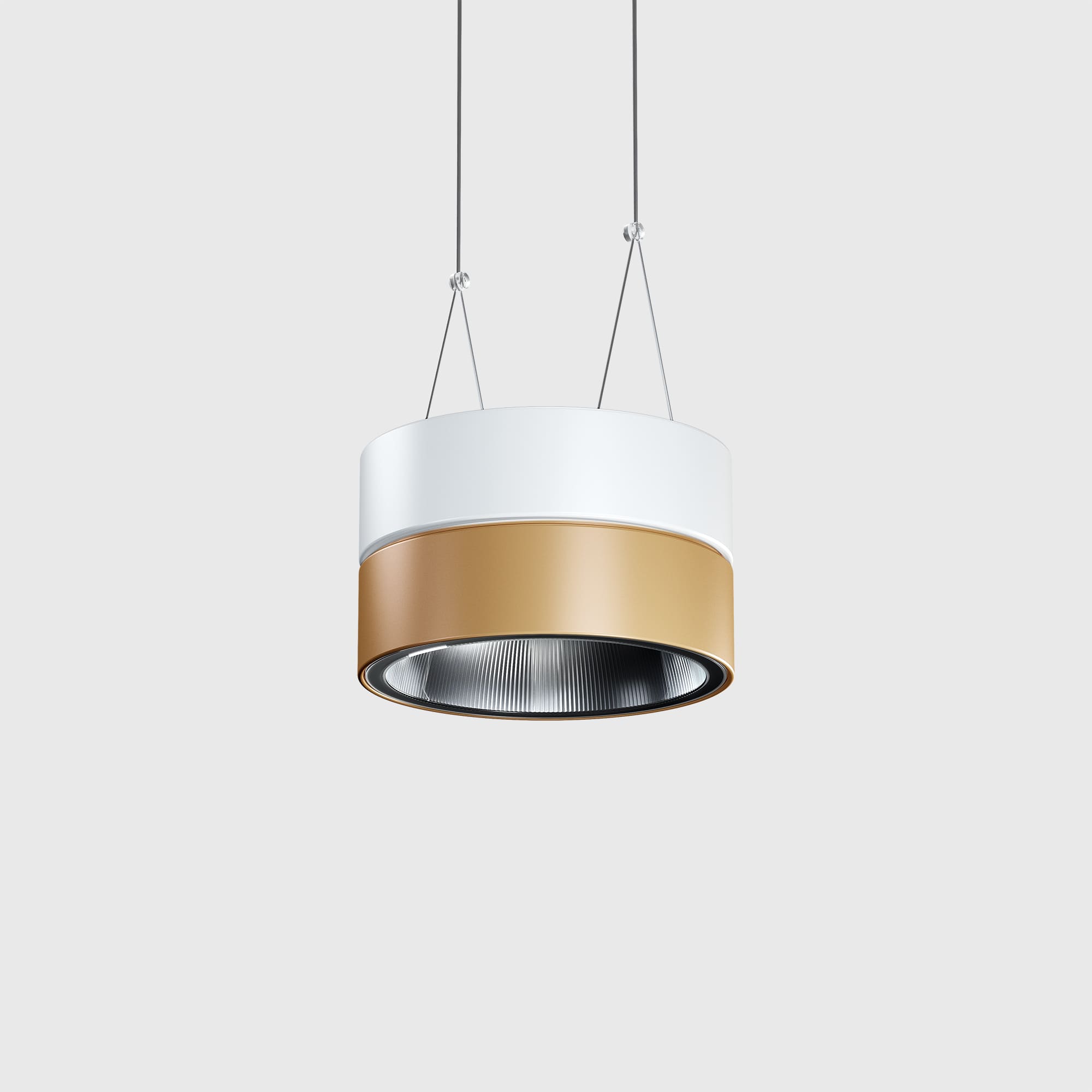

Direct lighting luminaire - pendant installation.
LED source with high colour rendering index- controlled luminance emission L < 3000 cd/m2 - UGR < 19 - ideal for environments with video screen use.
PMMA emission unit made up of a transparent PMMA prismatic reflector in combination with the flow recovery unit and diffuser screen - an internal polycarbonate cover visually defines the optics unit.
External structure of the light unit with double element in machined aluminium - finished with an even or combined painting.
The practical bayonet coupling system allows for the two sections to be separated to perform all the operations prior to hanging.
The upper part of the light unit is set up to be adjusted lengthwise, wired and to block the suspension cables/accessory power supply unit provided that is essential for completing the product.
Integrated DALI dimmer power supply unit.

Colours available for BeTwo pendant UGR<19

G0 White / Transparent white
G1 Black / Black transparent
G2 Black / Transparent white
I1 White-Champagne / Transparent white
I2 White-Champagne / Transparent black
I3 Black - Champagne / White transparent
I4 Black - Champagne / Transparent black
M6 White / Black transparent

Do you want to know more?

Click to access our Contact Us page where you can send us an enquiry.

Make Enquiry

5 year product warranty included

Discover more

BeTwo pendant UGR<19 15 code(s)

UGR<19 Ø 172

Down light - UGR<19

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	1379.5	11.3	UGR	4000	90	DALI-2	ø172x132	RN94
New	1326.1	11.3	UGR	3500	90	DALI-2	ø172x132	RN93
New	1290.5	11.3	UGR	3000	90	DALI-2	ø172x132	RN92

Power supply integrated into the body of the product.

UGR<19 Ø 172

Up down light - UGR<19

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	2830.1	22.5	UGR	4000	90	DALI-2	ø172x132	RN97
New	2720.9	22.5	UGR	3500	90	DALI-2	ø172x132	RN96
New	2639	22.5	UGR	3000	90	DALI-2	ø172x132	RN95

Integrated power supply in the suspension base (to be ordered separately).

UGR<19 Ø 234

Down light - UGR<19

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	2447.5	20.8	UGR	4000	90	DALI-2	ø234x148	RP12
New	2358.5	20.8	UGR	3500	90	DALI-2	ø234x148	RP11
New	2278.4	20.8	UGR	3000	90	DALI-2	ø234x148	RP10

Power supply integrated into the body of the product.

UGR<19 Ø 234

Up down light - UGR<19

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	5188.8	41.6	UGR	4000	90	DALI-2	ø234x148	RP15
New	4982	41.6	UGR	3500	90	DALI-2	ø234x148	RP14
New	4831.6	41.6	UGR	3000	90	DALI-2	ø234x148	RP13

Integrated power supply in the suspension base (to be ordered separately).

	Short description	Control	Size (mm)	Code
New	Base unit for pendant - Ceiling-mounted luminaire - Ø172-Ø234		ø100	PE00

	Short description	Control	Size (mm)	Code
New	Power supply base with pendant cables - surface-mounted version - for Ø172 body UP-DOWN - UGR < 19 (NOT for PURE versions)	DALI-2		PE02
