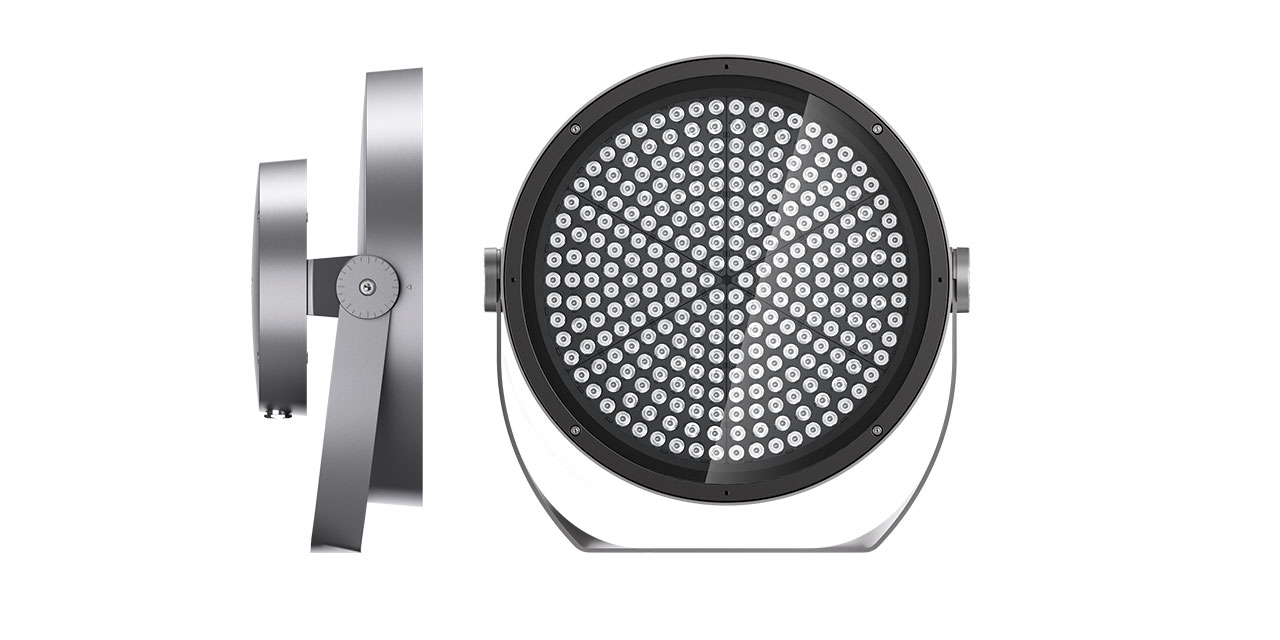

Agorà ø516mm compact

It looks like you're in North America.

View North American standard English: 120-277V | UL

Global

All Agorà Overview Lighting Effects Application Imagery Product Details Codes & Downloads

Lighting Effects

Application imagery for Agorà ø516mm compact

Product Details

Floodlight luminaire intended for use with LED light sources.
Floor, ceiling and wall-mount installation.
Comprising an optical compartment and bracket in die-cast aluminium and transparent tempered sodium-calcium safety glass.
Adjustable optical compartment in the horizontal plane (-50°/+90°).
Graduated scale and mechanical aiming lock.
Dual PG.
Double cable gland M24x1.5.
Electronic DALI power supply (IP67 / IP68) supplied, compatible with Telemanagement systems.
IP66 / IK08 (IK10 with protective grille) Opti Beam Lens and Opti Beam Reflector optics.
White version supplied with DALI electronic ballast, compatible with telecommunication systems.
External optical accessories (cylindrical screen and 45 ° cylindrical screen) and safety (protective grid).
Internal accessories (diffuser glass, lamellar louvre and refractor for elliptical distribution).
TW and RGBW versions available.
All external screws used are in A2 stainless steel.
Insulation class II.
In the case of installations on insulated supports (e.g. fibreglass pole), the use of accessory X899 is mandatory (or strongly recommended) in order to protect the luminaire from possible failures due to electrostatic charges.

Colours available for Agorà ø516mm compact

01 White
04 Black
15 Grey
F5 Rust brown

Do you want to know more?

Click to access our Contact Us page where you can send us an enquiry.

5 year product warranty included

Agorà ø516mm compact 52 code(s)

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	11325	137.1	SS 4.3°	4000	80	DALI-2	ø516x571	EU62
New	10275	137.1	SS 4.3°	3000	80	DALI-2	ø516x571	EU58
New	9787.5	137.1	SS 4.3°	2700	80	DALI-2	ø516x571	EU54
New	7725	137.1	SS 4.3°	2200	80	DALI-2	ø516x571	EU52

Complete with power supply.
These codes can be used at a maximum environment temperature
of 50°C.

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	13762.5	176.4	SS 4.3°	4000	80	DALI-2	ø516x571	EU76
New	12487.5	176.4	SS 4.3°	3000	80	DALI-2	ø516x571	EU72
New	11887.5	176.4	SS 4.3°	2700	80	DALI-2	ø516x571	EU68
New	9375	176.4	SS 4.3°	2200	80	DALI-2	ø516x571	EU66

Complete with power supply.
These codes can be used at a maximum environment temperature
of 35°C.

Tunable White (2200K - 3000K - 4000K)

Tunable White (2200K - 3000K - 4000K)

Tunable White (2200K - 3000K - 4000K)

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	11412	161.8	SS 4°	Tunable White	80	DMX-RDM	ø516x571	EV36
New	24414	218.7	S 16°	Tunable White	80	DMX-RDM	ø516x571	EV37
New	23788	218.7	F 28°	Tunable White	80	DMX-RDM	ø516x571	EV38
New	23475	218.7	WF 44°	Tunable White	80	DMX-RDM	ø516x571	EV39

Complete with electronic control card.
Power supply to be ordered separately.

These codes can be used at a maximum environment temperature of 50°C.

RGBW (3000K)

RGBW (3000K)

RGBW (3000K)

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	10920	155.4	SS 8°	RGBW - 3000K		DMX-RDM	ø516x571	2755
New	10296	155.4	S 16°	RGBW - 3000K		DMX-RDM	ø516x571	EV40
New	10140	155.4	F 28°	RGBW - 3000K		DMX-RDM	ø516x571	EV41
New	9984	155.4	WF 42°	RGBW - 3000K		DMX-RDM	ø516x571	EV42

Complete with electronic control card.
Power supply to be ordered separately.

These codes can be used at a maximum environment temperature of 50°C.

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	13650	158.8	SS 4.3°	4000	80	DALI-2	ø516x571	EV18
New	12412.5	158.8	SS 4.3°	3000	80	DALI-2	ø516x571	EV14
New	11775	158.8	SS 4.3°	2700	80	DALI-2	ø516x571	EV10
New	9300	158.8	SS 4.3°	2200	80	DALI-2	ø516x571	EV08
New	26449.5	222.1	S 16°	4000	80	DALI-2	ø516x571	EV19
New	25063.5	222.1	S 16°	3000	80	DALI-2	ø516x571	EV15
New	24101	222.1	S 16°	2700	80	DALI-2	ø516x571	EV11
New	26106	222.1	F 28°	4000	80	DALI-2	ø516x571	EV20
New	24738	222.1	F 28°	3000	80	DALI-2	ø516x571	EV16
New	23788	222.1	F 28°	2700	80	DALI-2	ø516x571	EV12
New	21052	222.1	F 28°	2200	80	DALI-2	ø516x571	EV09
New	25419	222.1	WF 44°	4000	80	DALI-2	ø516x571	EV21
New	24087	222.1	WF 44°	3000	80	DALI-2	ø516x571	EV17
New	23162	222.1	WF 44°	2700	80	DALI-2	ø516x571	EV13

Complete with power supply.
These codes can be used at a maximum environment temperature
of 50°C.

Tunable White (2200K - 3000K - 4000K)

Tunable White (2200K - 3000K - 4000K)

Tunable White (2200K - 3000K - 4000K)

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	14112	206.6	SS 4°	Tunable White	80	DMX-RDM	ø516x571	EV43
New	28119	270.2	S 16°	Tunable White	80	DMX-RDM	ø516x571	EV44
New	27398	270.2	F 28°	Tunable White	80	DMX-RDM	ø516x571	EV45
New	27037.5	270.2	WF 44°	Tunable White	80	DMX-RDM	ø516x571	EV46

Complete with electronic control card.
Power supply to be ordered separately.
These codes can be used at a maximum environment temperature
of 35°C.

RGBW (3000K)

RGBW (3000K)

RGBW (3000K)

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	13335	198.2	SS 8°	RGBW - 3000K		DMX-RDM	ø516x571	2756
New	12573	198.2	S 16°	RGBW - 3000K		DMX-RDM	ø516x571	EV47
New	12382.5	198.2	F 28°	RGBW - 3000K		DMX-RDM	ø516x571	EV48
New	12192	198.2	WF 42°	RGBW - 3000K		DMX-RDM	ø516x571	EV49

Complete with electronic control card.
Power supply to be ordered separately.
These codes can be used at a maximum environment temperature
of 35°C.

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	16987.5	207.8	SS 4.3°	4000	80	DALI-2	ø516x571	EV32
New	15450	207.8	SS 4.3°	3000	80	DALI-2	ø516x571	EV28
New	14662.5	207.8	SS 4.3°	2700	80	DALI-2	ø516x571	EV24
New	11587.5	207.8	SS 4.3°	2200	80	DALI-2	ø516x571	EV22
New	30415	267.3	S 16°	4000	80	DALI-2	ø516x571	EV33
New	28798	267.3	S 16°	3000	80	DALI-2	ø516x571	EV29
New	27758.5	267.3	S 16°	2700	80	DALI-2	ø516x571	EV25
New	30020	267.3	F 28°	4000	80	DALI-2	ø516x571	EV34
New	28424	267.3	F 28°	3000	80	DALI-2	ø516x571	EV30
New	27398	267.3	F 28°	2700	80	DALI-2	ø516x571	EV26
New	24244	267.3	F 28°	2200	80	DALI-2	ø516x571	EV23
New	29230	267.3	WF 44°	4000	80	DALI-2	ø516x571	EV35
New	27676	267.3	WF 44°	3000	80	DALI-2	ø516x571	EV31
New	26677	267.3	WF 44°	2700	80	DALI-2	ø516x571	EV27

Complete with power supply.

These codes can be used at a maximum environment temperature
of 35°C.
