Agorà ø368mm compact

It looks like you're in North America.

View North American standard English: 120-277V | UL

Global

All Agorà Overview Lighting Effects Application Imagery Product Details Codes & Downloads

Lighting Effects

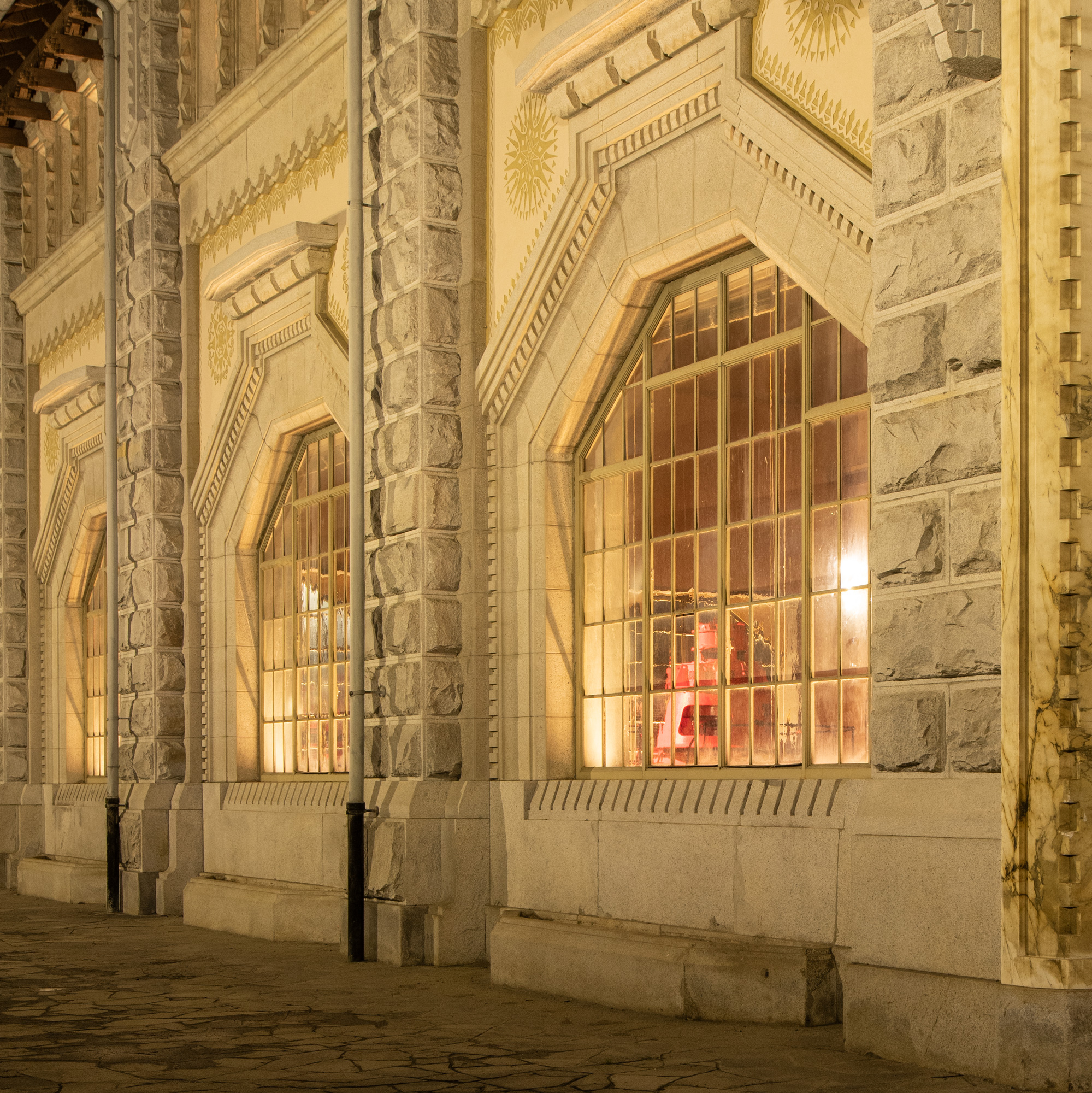

Application imagery for Agorà ø368mm compact

Product Details

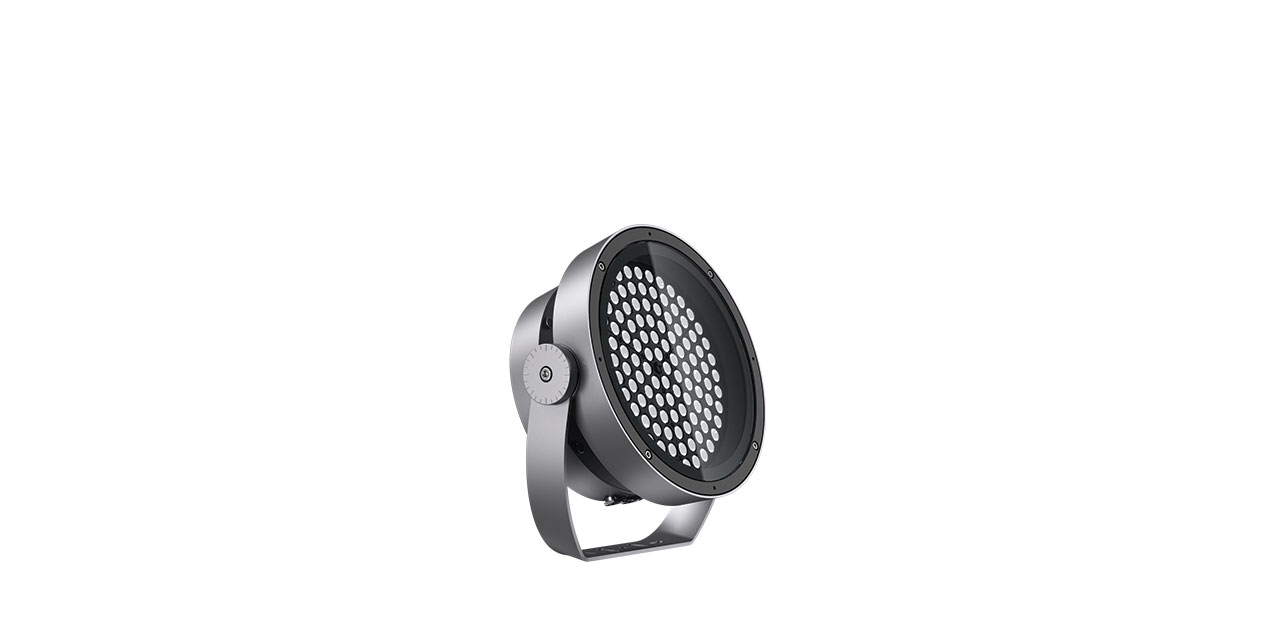

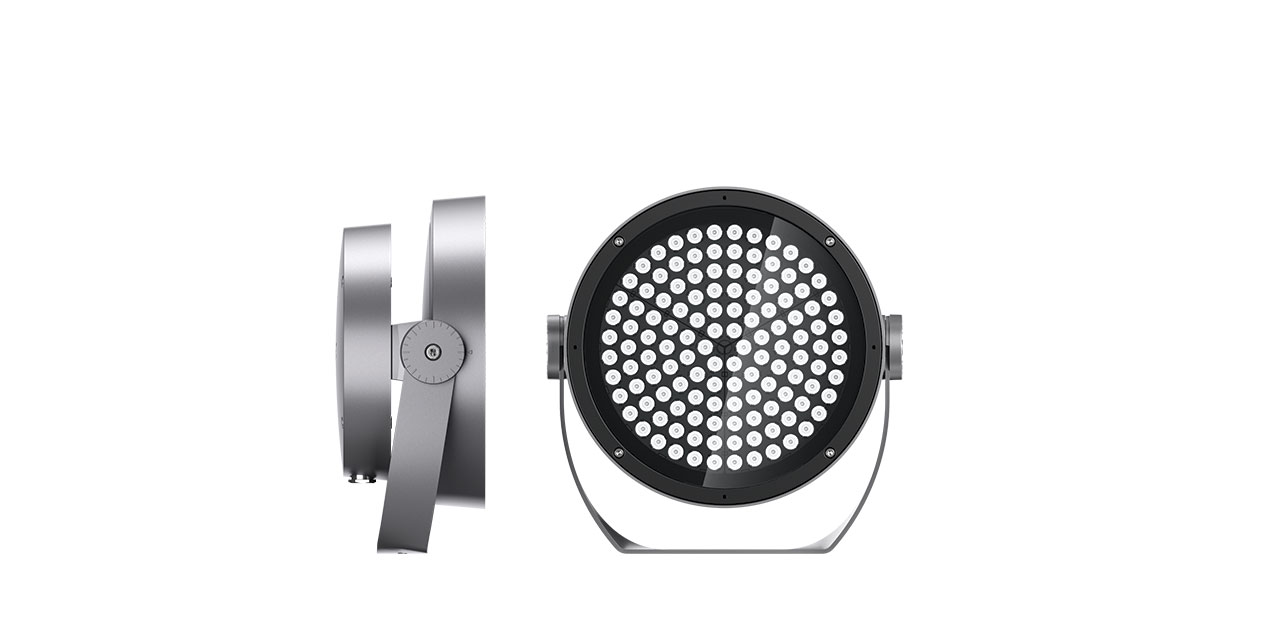

Floodlight luminaire intended for use with LED light sources.
Floor, ceiling and wall-mount installation.
Comprising an optical compartment and bracket in die-cast aluminium and transparent tempered sodium-calcium safety glass.
Adjustable optical compartment in the horizontal plane (-50°/+90°).
Graduated scale and mechanical aiming lock.
Dual PG.
Double cable gland M24x1.5.
Electronic DALI power supply (IP67 / IP68) supplied, compatible with Telemanagement systems.
IP66 / IK08 (IK10 with protective grille) Opti Beam Lens and Opti Beam Reflector optics.
White version supplied with DALI electronic ballast, compatible with telecommunication systems.
External optical accessories (cylindrical screen and 45 ° cylindrical screen) and safety (protective grid).
Internal accessories (diffuser glass, lamellar louvre and refractor for elliptical distribution).
TW and RGBW versions available.
All external screws used are in A2 stainless steel.
Insulation class II.
In the case of installations on insulated supports (e.g. fibreglass pole), the use of accessory X899 is mandatory (or strongly recommended) in order to protect the luminaire from possible failures due to electrostatic charges.

Colours available for Agorà ø368mm compact

01 White
04 Black
15 Grey
F5 Rust brown

Do you want to know more?

Click to access our Contact Us page where you can send us an enquiry.

5 year product warranty included

Agorà ø368mm compact 44 code(s)

Tunable White (2200K - 3000K - 4000K)

Tunable White (2200K - 3000K - 4000K)

Tunable White (2200K - 3000K - 4000K)

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	6408	88.1	SS 5°	Tunable White	80	DMX-RDM	ø368x421	EU10
New	13604	125.6	S 16°	Tunable White	80	DMX-RDM	ø368x421	EU11
New	13246	125.6	F 28°	Tunable White	80	DMX-RDM	ø368x421	EU12
New	12888	125.6	WF 44°	Tunable White	80	DMX-RDM	ø368x421	EU13

Complete with electronic control card.
Power supply to be ordered separately.

These codes can be used at a maximum environment temperature of 50°C.

RGBW (3000K)

RGBW (3000K)

RGBW (3000K)

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	6095.5	94.4	SS 8°	RGBW - 3000K		DMX-RDM	ø368x421	2753
New	5845	94.4	S 14°	RGBW - 3000K		DMX-RDM	ø368x421	EU14
New	5678	94.4	F 28°	RGBW - 3000K		DMX-RDM	ø368x421	EU15
New	5427.5	94.4	WF 42°	RGBW - 3000K		DMX-RDM	ø368x421	EU16

Complete with electronic control card.
Power supply to be ordered separately.

These codes can be used at a maximum environment temperature of 50°C.

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	7687.5	89.3	SS 4.3°	4000	80	DALI-2	ø368x421	ET92
New	6975	89.3	SS 4.3°	3000	80	DALI-2	ø368x421	ET88
New	6637.5	89.3	SS 4.3°	2700	80	DALI-2	ø368x421	ET84
New	5212.5	89.3	SS 4.3°	2200	80	DALI-2	ø368x421	ET82
New	15015	128.3	S 16°	4000	80	DALI-2	ø368x421	ET93
New	14245	128.3	S 16°	3000	80	DALI-2	ø368x421	ET89
New	13706	128.3	S 16°	2700	80	DALI-2	ø368x421	ET85
New	14820	128.3	F 30°	4000	80	DALI-2	ø368x421	ET94
New	14060	128.3	F 30°	3000	80	DALI-2	ø368x421	ET90
New	13528	128.3	F 30°	2700	80	DALI-2	ø368x421	ET86
New	11970	128.3	F 30°	2200	80	DALI-2	ø368x421	ET83
New	14430	128.3	WF 44°	4000	80	DALI-2	ø368x421	ET95
New	13690	128.3	WF 44°	3000	80	DALI-2	ø368x421	ET91
New	13172	128.3	WF 44°	2700	80	DALI-2	ø368x421	ET87

Complete with power supply.
These codes can be used at a maximum environment temperature
of 50°C.

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	9675	121.6	SS 4.3°	4000	80	DALI-2	ø368x421	EU06
New	8812.5	121.6	SS 4.3°	3000	80	DALI-2	ø368x421	EU02
New	8362.5	121.6	SS 4.3°	2700	80	DALI-2	ø368x421	ET98
New	6600	121.6	SS 4.3°	2200	80	DALI-2	ø368x421	ET96
New	18172	161.8	S 16°	4000	80	DALI-2	ø368x421	EU07
New	17209.5	161.8	S 16°	3000	80	DALI-2	ø368x421	EU03
New	16555	161.8	S 16°	2700	80	DALI-2	ø368x421	ET99
New	17936	161.8	F 30°	4000	80	DALI-2	ø368x421	EU08
New	16986	161.8	F 30°	3000	80	DALI-2	ø368x421	EU04
New	16340	161.8	F 30°	2700	80	DALI-2	ø368x421	EU00
New	14478	161.8	F 30°	2200	80	DALI-2	ø368x421	ET97
New	17464	161.8	WF 44°	4000	80	DALI-2	ø368x421	EU09
New	16539	161.8	WF 44°	3000	80	DALI-2	ø368x421	EU05
New	15910	161.8	WF 44°	2700	80	DALI-2	ø368x421	EU01

Complete with power supply.
These codes can be used at a maximum environment temperature
of 35°C.

Tunable White (2200K - 3000K - 4000K)

Tunable White (2200K - 3000K - 4000K)

Tunable White (2200K - 3000K - 4000K)

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	8028	120.3	SS 5°	Tunable White	80	DMX-RDM	ø368x421	EU17
New	16454	157.8	S 16°	Tunable White	80	DMX-RDM	ø368x421	EU18
New	16021	157.8	F 28°	Tunable White	80	DMX-RDM	ø368x421	EU19
New	15588	157.8	WF 44°	Tunable White	80	DMX-RDM	ø368x421	EU20

Complete with electronic control card.
Power supply to be ordered separately.
These codes can be used at a maximum environment temperature
of 35°C.

RGBW (3000K)

RGBW (3000K)

RGBW (3000K)

	lm system	W system	Optic	K	CRI	Control	Size (mm)	Code
New	7519	118.7	SS 8°	RGBW - 3000K		DMX-RDM	ø368x421	2754
New	7210	118.7	S 14°	RGBW - 3000K		DMX-RDM	ø368x421	EU21
New	7004	118.7	F 28°	RGBW - 3000K		DMX-RDM	ø368x421	EU22
New	6695	118.7	WF 42°	RGBW - 3000K		DMX-RDM	ø368x421	EU23

Complete with electronic control card.
Power supply to be ordered separately.
These codes can be used at a maximum environment temperature
of 35°C.
