SS17

Updating Product Data...

Photometric configuration only available on screens above 1024px

Complete final technical data will be available starting from May 2025.

updated

LED
8.6W 1150lm - light source values
12.4W 817lm - system values i
System flux (lm): total light flux emitted by the product. System power (W): energy consumption of the product, including power components.
Luminous Efficiency (system value): 65lm/W
2700K CRI 80

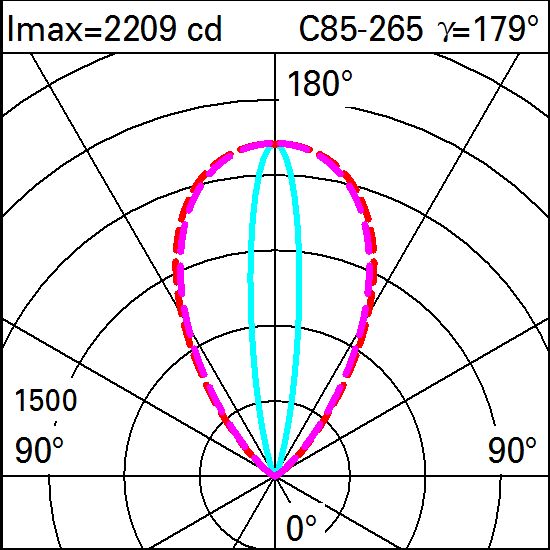

Optic: Wall Grazing Wide Flood
Adjustability: fixed
Lm output in Emergency mode: -
Total light flux at or above 90° [Lm]: 816.5
Light Output Ratio (L.O.R.) [%]: 71
Life Time 1: 100,000h - L80 - B10 (Ta 25C)
Life Time 2: 100,000h - L80 - B10 (Ta 40C)

Installation: Ground- and wall-recessed using the outer casing, to be ordered separately, together with the end caps for the optical assembly and outer casing caps. Option of installation in continuous lines of up to a max length of 10.5m only for ground-recessed installation: in this case, too, the joints for the outer casings must be ordered separately. For ground installation a drainage channel must be created or gravel inserted for drainage under the outer casing before installation, to guarantee the degree of protection stated. For ceiling-mounting with plasterboard panels (1-30 mm thick), make the preparation openings as indicated in the instructions sheet and use the steel cables with reinforcement plates in the accessory kit.
Environment: indoor/outdoor
Wiring: Complete with DALI control card and a 220÷240Vac electronic power supply. For the electrical connection the product has a lower box holding the terminal board (5+5poles, max 2.5mm²) and two PG11 nickel-plated brass cable glands for pass-through wiring, suitable for cables Ø8.5÷12.5 mm.

XA07

Internal longitudinal louvre for monochrome versions

Size (mm): 340
- 04 Black
X983

Internal transversal louvre for all versions

Size (mm): 340
- 04 Black
X984

Honeycomb louvre for all versions

Size (mm): 340
- 04 Black
X985

Internal microlouvre for all versions

Size (mm): 340
- 04 Black
5925

Steel cable L=250 for application on wall
- 00 Indeterminate
X516

Kit with steel cables with small reinforcement plates for application on false ceiling - L=600
- 00 Indeterminate
X523

Pair of outer casing caps - for stand alone application (single product) L = 8.3 mm
- 00 Indeterminate
X524

Pair of outer casing caps - for continuous rows application (more products) L = 16 mm
- 04 Black
X525

Intermediate joint outer casing for continuous row application - L= 4mm
- 00 Indeterminate
X526

Couple of terminal heads - for stand alone application (single product) L = 18 mm
- 01 White
- 04 Black
- 15 Grey
- F5 Rust brown
X527

Couple of terminal heads - for continuous rows application (more products) L = 44 mm
- 01 White
- 04 Black
- 15 Grey
- F5 Rust brown
X981

Outer casing with no end caps - L=354

Size (mm): 340
- 00 Indeterminate
BZN7

Y connector with 5 poles IP68 - For the connection of the DMX or DALI signal cable and power supply cable
- 00 Indeterminate
BZS6

IP68 connector 5-pole
- 04 Black
